Corning pureform DCM for 1.55um C-band, dispersion: about -333 ps/nm. Model: 03-0083-00-03, for 20km standard SMF compensation.
Next image
Zoom image

Corning pureform DCM for 1.55um C-band, dispersion: about -333 ps/nm. Model: 03-0083-00-03, for 20km standard SMF compensation.


Not rated yet

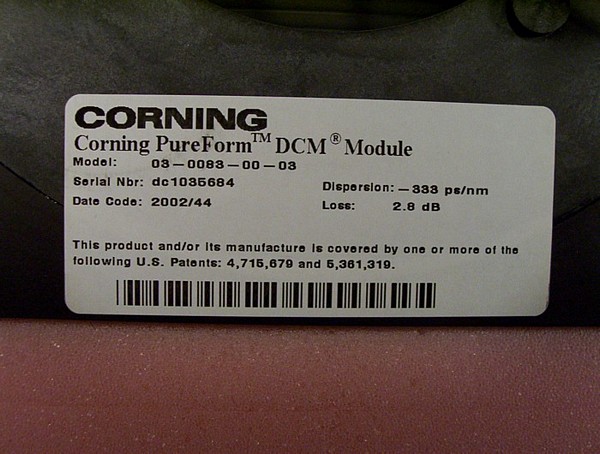

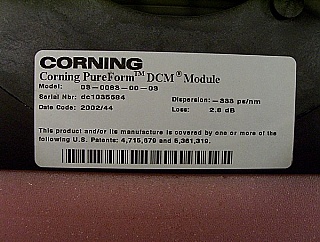

Corning DCM for 1.55um C-band. Model: 03-0083-00-03, for 20km standard SMF compensation. Dispersion: about -333 ps/nm at 1544.5nm. With two SC/PC connectors. Made in Nov. 2002. See year-2000 and year-2002 Corning model datasheet in 1st and 3rd pdf link below, see Avanex year-2003 pdf datasheet in 2nd pdf link(Corning sold its DCM group to Avanex around 2003). We do not know which pdf datasheet best fits this DCM, and we do not know the dispersion slope data. You need do your own research.
Out of stock
  • US$495.00
Add a different product to compare
    CONDITION:

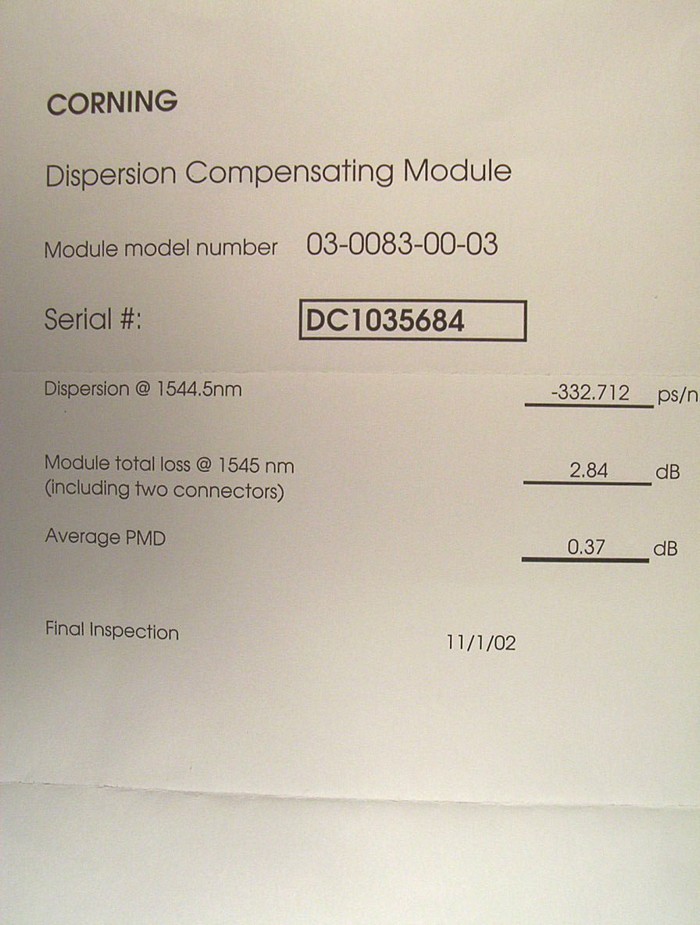

    new in original product box. With actual test sheet in A4 size paper

  • DIM Weight
    3.1000 kg
  • Store Part No.
    FSC-DCM-018J
  • Manufacturers
    • Manufacturer
      Corning
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
