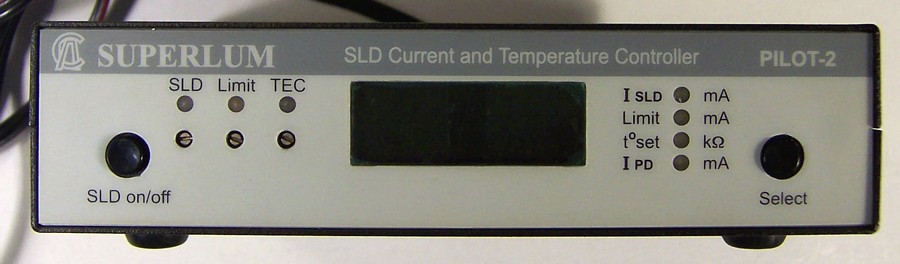

SLD module sets PILOT-2 Current Drivers & Temperature Controller. It is designed for Superlum SLD module, but it also works for other types of lasers since thermistor is popular 10KOHM at 25 C temperature. See specification on page 6 of 1st pdf link below. See user manual also at 1st pdf link below.

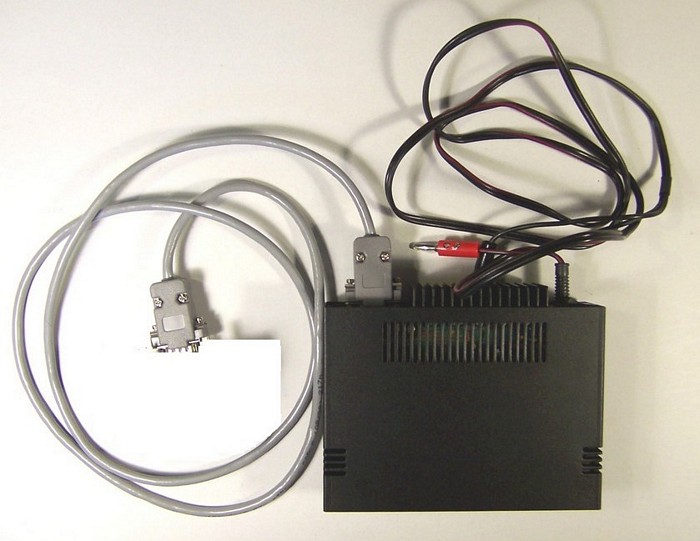

It comes with one D-sub 9-pin male to D-sub 9-pin female cable, to connect between controller and mount, see last photo below.

+9 V DC Powered Controller PILOT provides:
•Driving of all types of Superlum's cooled modules.
•High-stability temperature control from +10 °C to +40 °C, with display of temperature setpoint.
•High-stability drive current control from 0 mA to 300 mA.
•Low noise.

SLD modules are extremely sensitive to surges and spikes of drive current (or voltage). Any mistake in the design of a driving circuit may result in SLD module damage and failure. In most cases, modules cannot be repaired from this kind of damage. To provide an adequate level of SLD protection, it is imperative to have a properly designed current and temperature controller. Superlum offers PILOT drivers that allow to operate all types of cooled Superlum's SLD modules at a high level of stability and protection.

Compact mounts/heads are available for all types of modules (DIL, BUT and TOW). Fiber coupled modules can be easily replaced in the mount by the customer—no soldering required. Free-space SLD modules assembled in TOW 1 and TOW 2 packages and installed in TOW mounts cannot be replaced by the customer.
