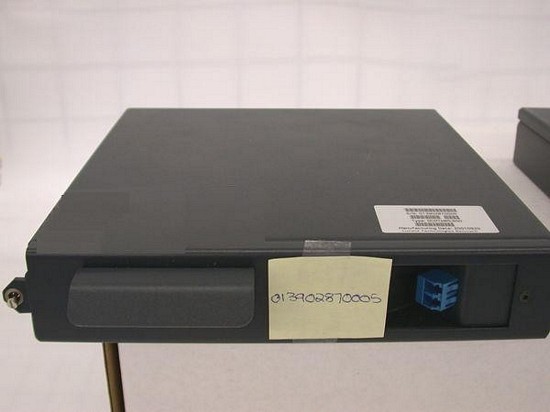

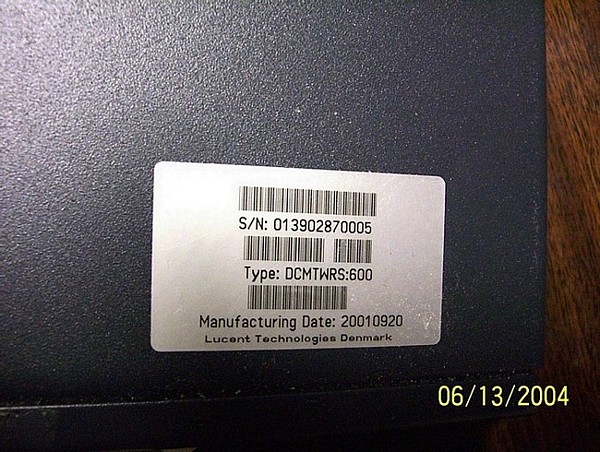

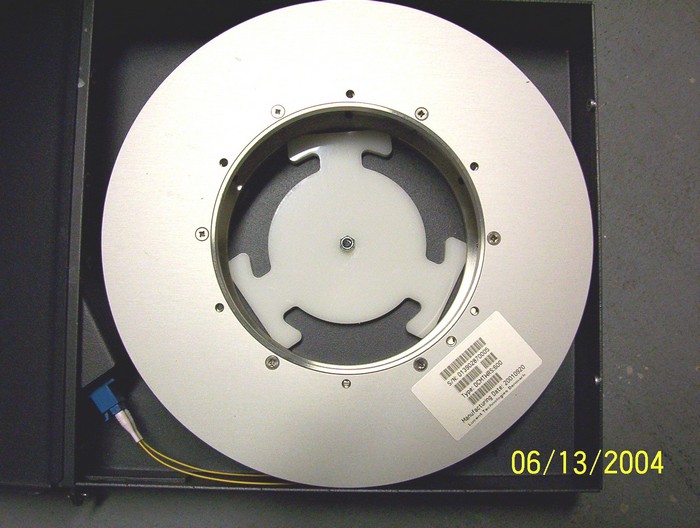

DCM (fiber spool) for truewave fiber by Lucent. Type: DCMTWRS:600
Next image
Zoom image

DCM (fiber spool) for truewave fiber by Lucent. Type: DCMTWRS:600


Not rated yet
-600ps/nm for one span compensation. Sample tested result in our lab: IL=4.45dB at 1.55um with 2 jumpers, length ~ 5.43km by OTDR (We did not adjust the refractive index to match this fiber index value. The refractive index may be slightly higher than standard fiber due to more Ge-doing in core, but it should be close). See sample test data in the htm link below. It was used in developing L-band ultra long-haul DWDM systems, so we believe it should be 100% dispersion slope compansation for truewave fiber over L-band.
In stock (Only 1 left in stock)
  • US$800.00
Qty:
Add a different product to compare
    CONDITION:
    near like new

  • DIM Weight
    3.8000 kg
  • Store Part No.
    FSC-DCM-030
  • Manufacturers
    • Manufacturer
      Lucent
