DWDM 200GHz-spacing 7-ch 10dBm laser sources(1551-1561nm). ANTEC LASER II TRANSMITTER, SC/APC adapters.

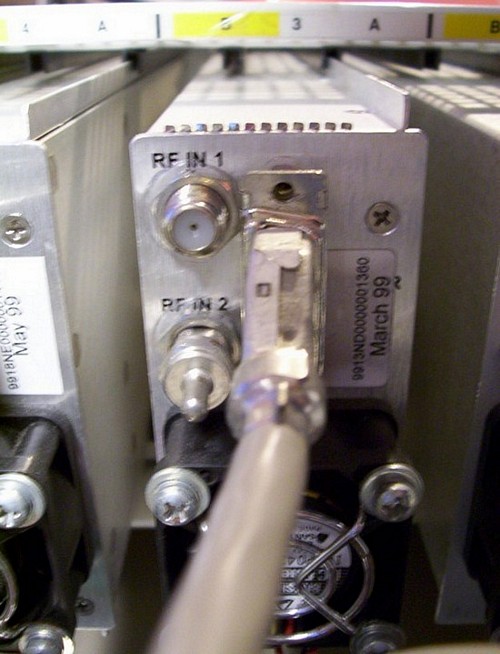

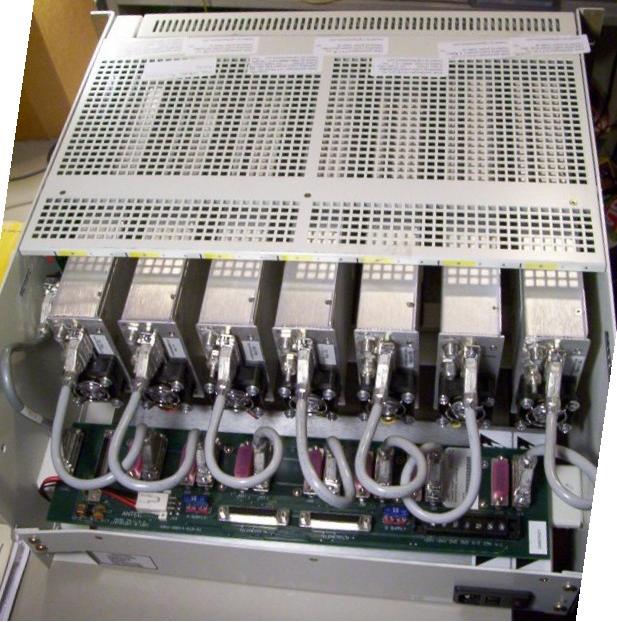

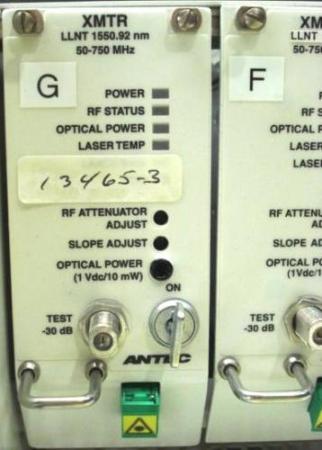

7 DWDM sources, with labeled wavelengths (nm) : 1550.92, 1552.52, 1554.13, 1555.75, 1557.36, 1558.98, 1560.61. 200-GHz-spacing continuously, All seven source modules are tested good, around 10dBm (9.5 to 13dBm). At the back of each source module, there is BNC connector (marked: RF IN 1) , where you can input external analog/CATV modulation signal (50-750MHz). So you can also use it as analog/CATV transmitter. Each source module is with SC/APC adapter as optical output interface. The equipment accepts both 110V and 220V AC power. Net weight 18kg.

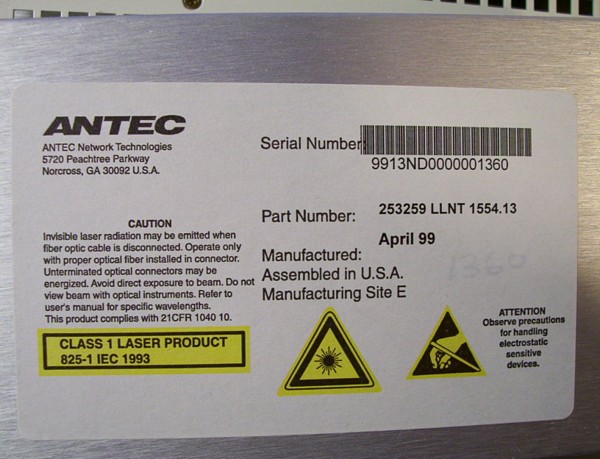

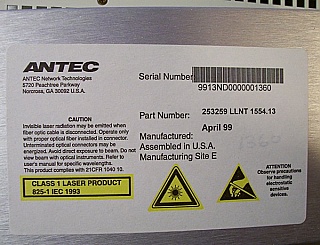

Module type: LLNT : Laser Link Narrowcast Transmitter

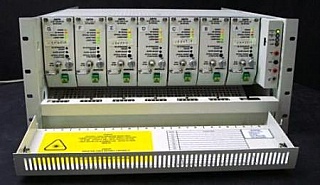

Mainframe type: LASER LINK II

We believe the 1st pdf link below is correct specification.

See installation and operation manual including similar specification in the 2nd pdf link below (for lower-frequency model module and same model mainframe).

CONDITION:

Working well. Cosmetic condition is OK. We tested these seven source modules in our lab by optical meter . (power by Agilent 81525A optical head, wavelength by 86120B wavelength meter). Test condition: The output power is after two fiber jumpers. The connector may not be fully cleaned. The equipment might not be warmed up enough before test. Labeled wavelengths (nm) : 1550.92, 1552.52, 1554.13, 1555.75, 1557.36, 1558.98, 1560.61 Tested wavelengths (nm) : 1551.00, 1552.67, 1554.153, 1555.78, 1557.442, 1559.098, 1560.681 Tested optical output (dBm): 10.06, 9.4, 10.44 13.00, 9.46, 10.32, 10.03

DIM Weight

22.0000 kg

Store Part No.

OTI-Tx-L-050C

Manufacturers
- Manufacturer
  Antec
