E-Tek FPCR-1B Programmable Polarization Controller Driver, with 1550nm Polarization Controller module: FPCR223144133

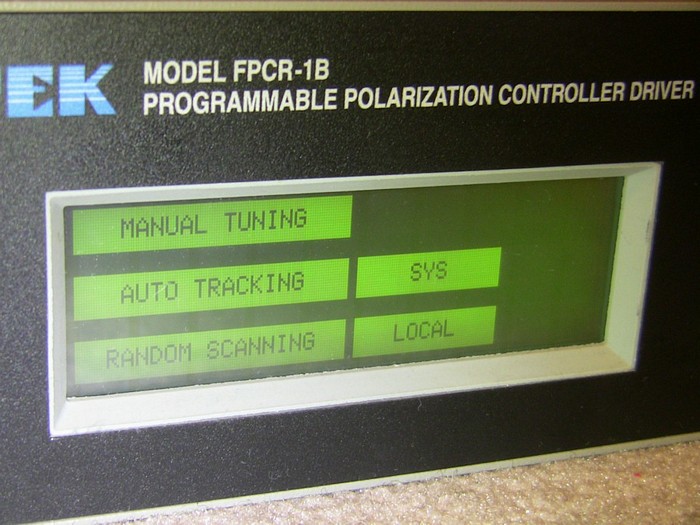

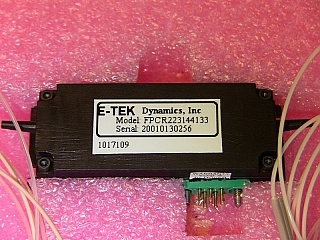

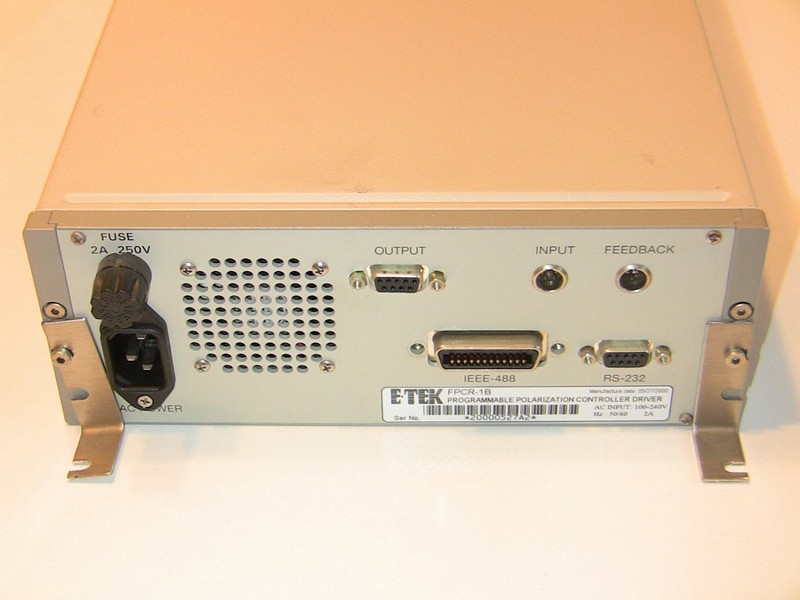

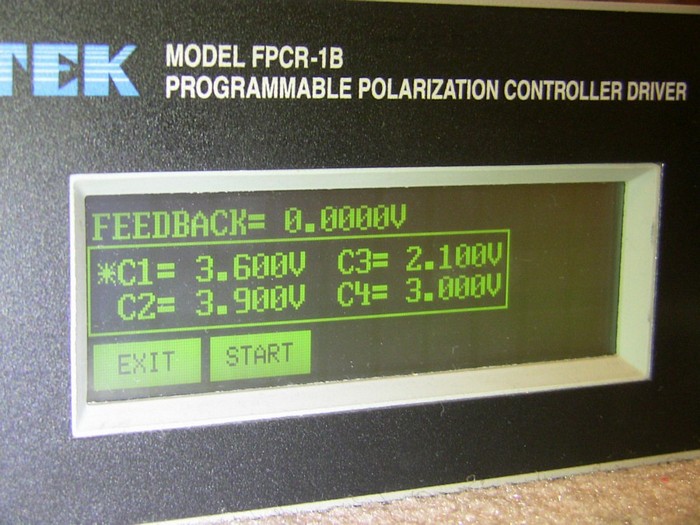

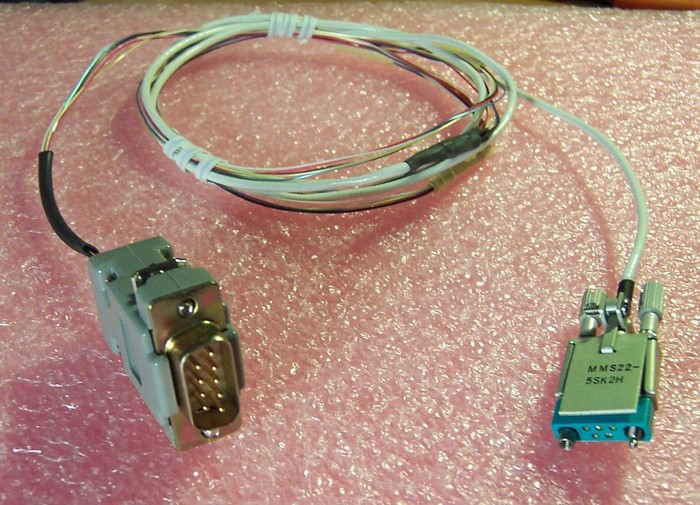

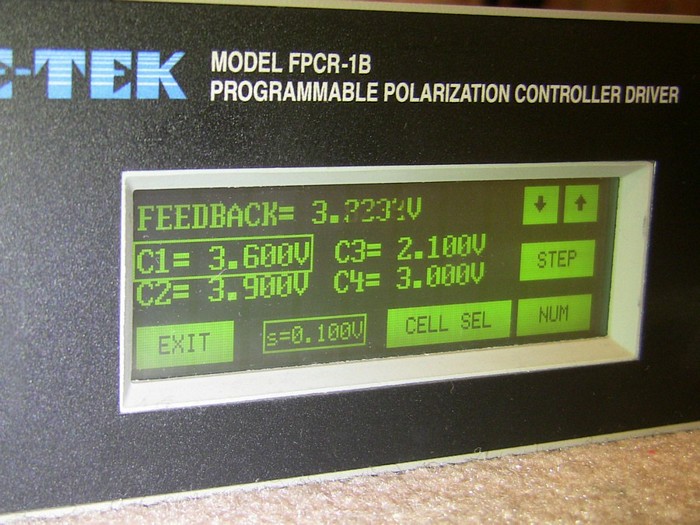

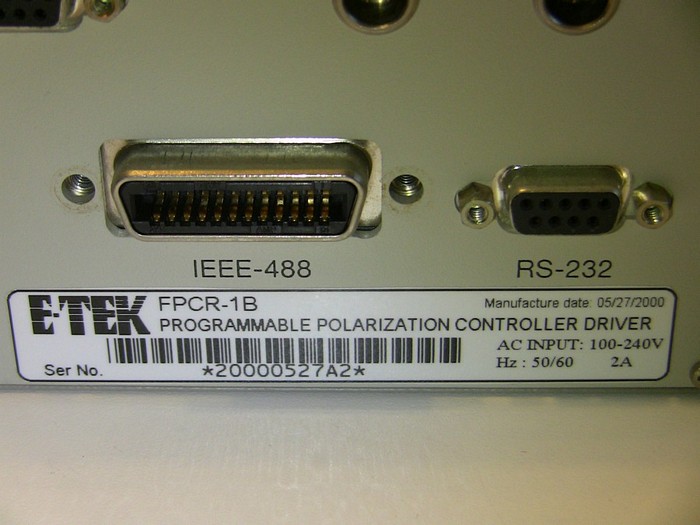

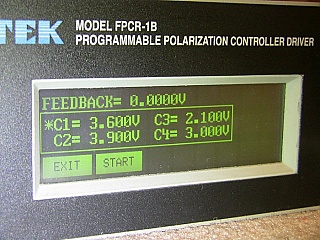

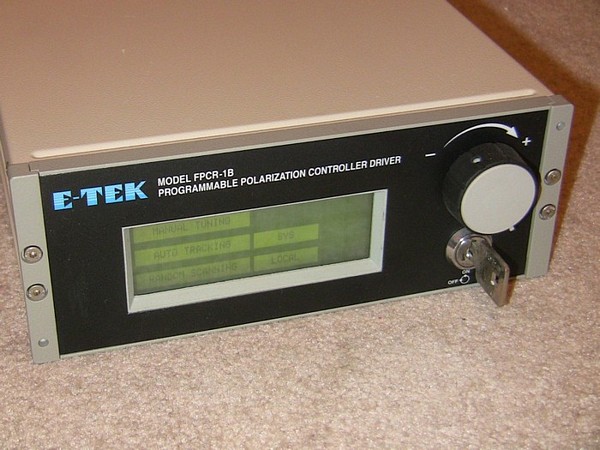

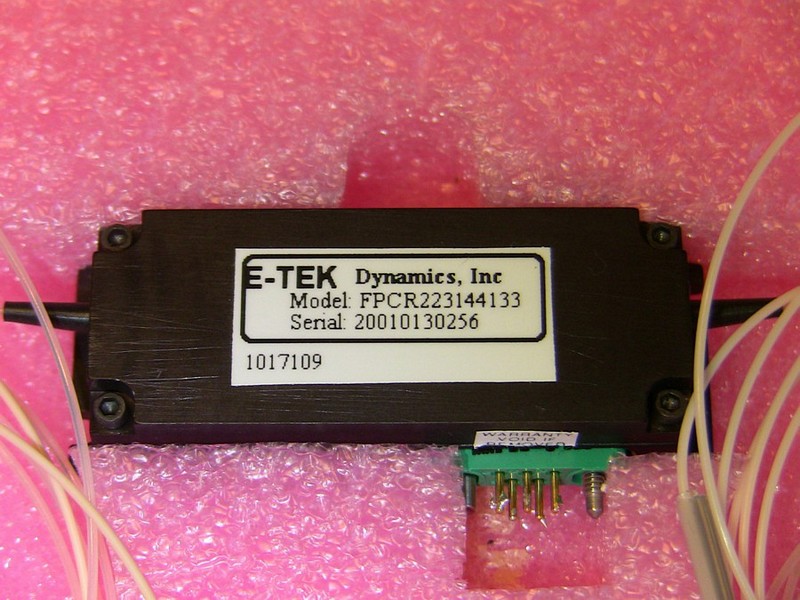

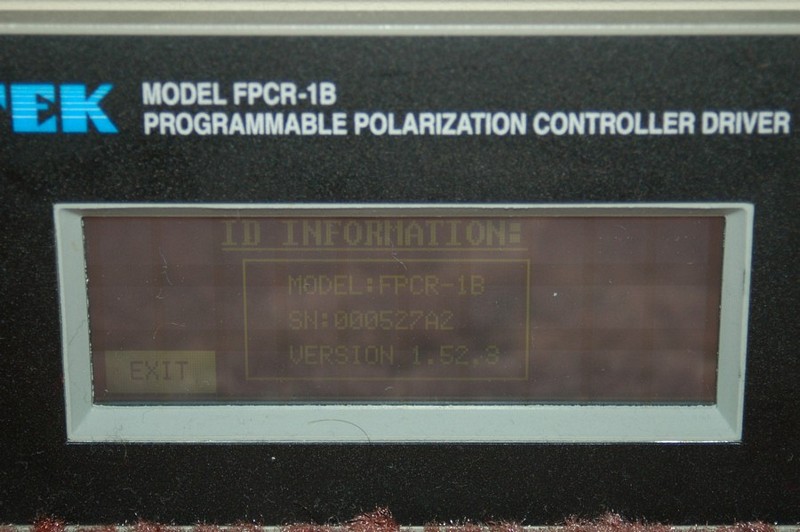

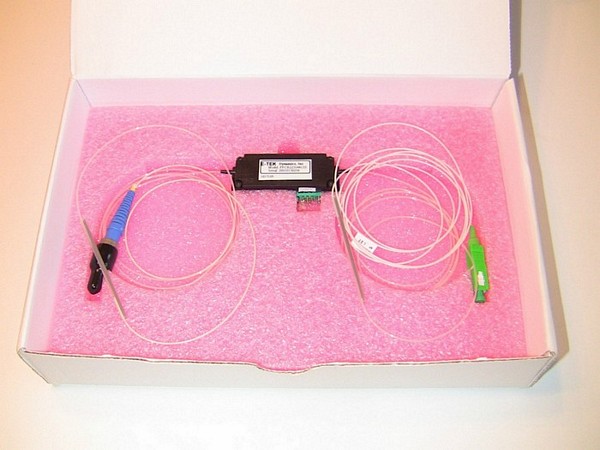

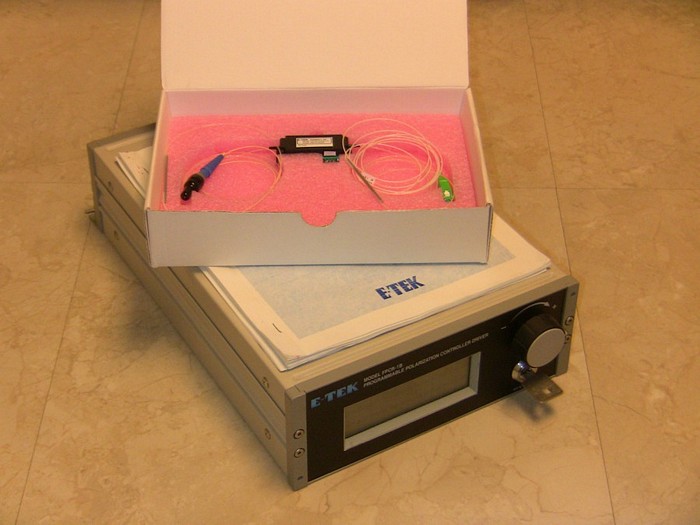

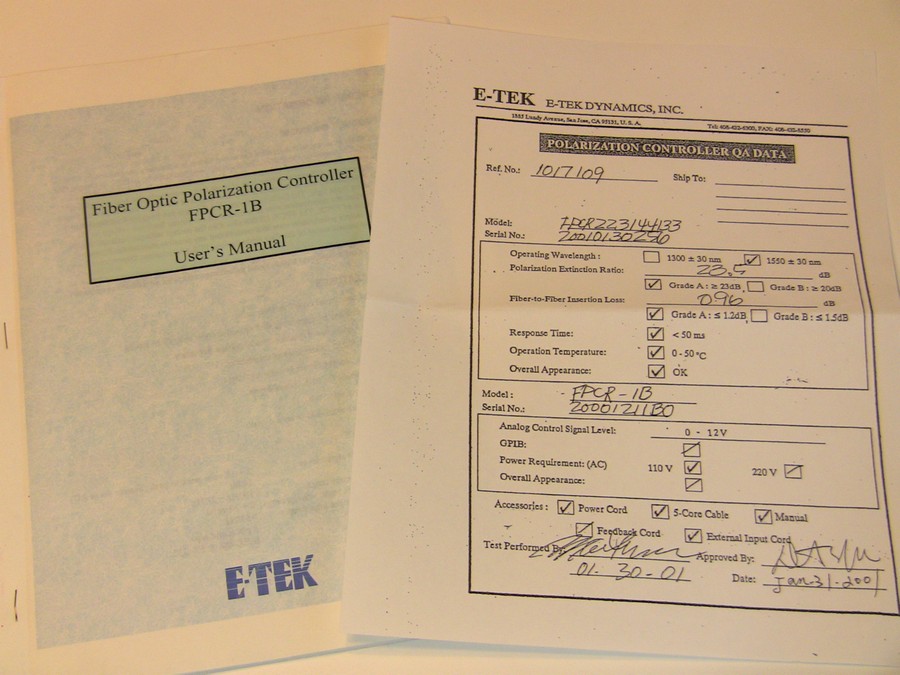

Fiber optic polarization controller module (with manufacture test data) with driver (with user manual), made by E-TEK (later part of JDSU). Partially tested and presumed to be in proper working order.The controller uses 4 tunable liquid crystal waveplates to achieve arbitrary-to-arbitrary polarization transformation. The input and output connectors are spliced on. One is FC/PC, the other SC/APC.The driver supports manual control, polarization tracking, and polarization scanning modes. Remote programming is available via GPIB and RS232 interfaces. Analog control inputs are also provided. The driver has been verified to power up with no error messages.There is no cable to connect the controller to the driver. A connection can be easily improvised using one half of a DB9 cable. Connector pinouts are provided in the user manual (included).AC Input: 100-240V, 2A, 50/60Hz, IEEE-488, RS-232. Update on Oct. 24, 2014: There is an electrical cable with DB9 connector at one end and 9-pin connector at the other end, to connect the controller instrument and Polarization Controller module, see last photo.

Manufacturers
- Manufacturer
  E-tek
