E-tek MLDC-1032 laser controller with 6 of Dual LDD-TEC modules


Not rated yet

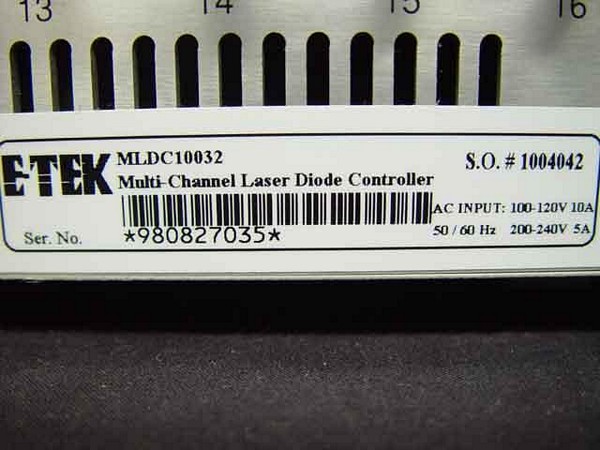

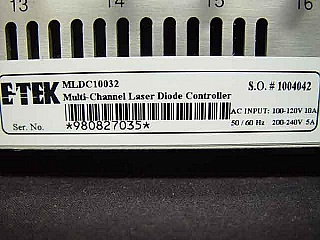

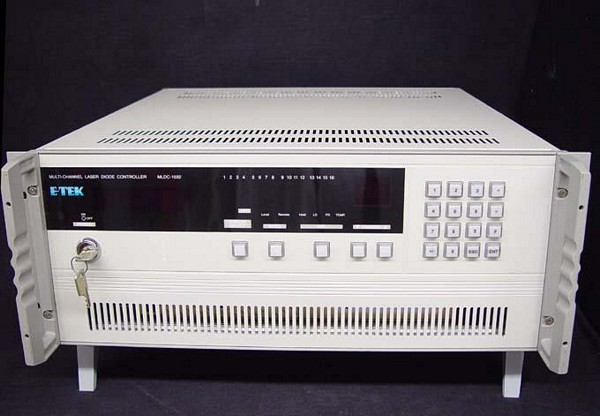

E-Tek Dynamics, Inc. MLDC-1032 Multi-channel Laser Diode Controller.

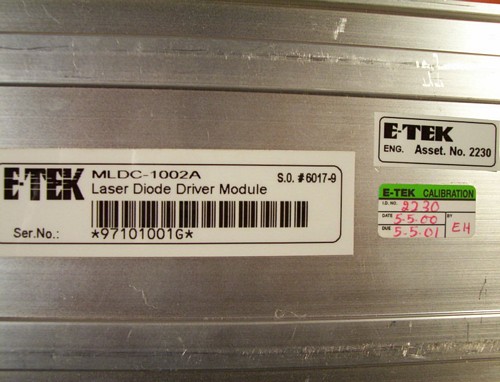

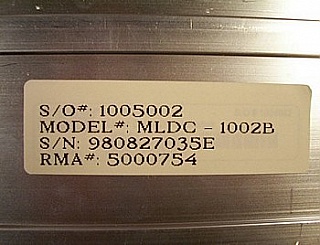

Includes 1 MLDC-1002B and 5 MLDC-1002A Dual-channel Laser Diode Driver Modules,  and 1 GPIB and RS-232 Interfaces.  MLDC-1002B  can drive two LD @max LDD 300mA each, and  MLDC-1002A  can drive two LD @max LDD 50mA each with 0.01mA display resolution (both verified in our lab).

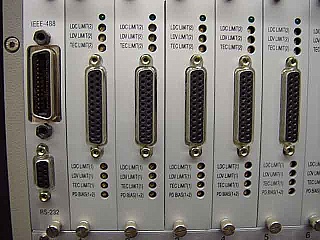

Each LDD/TEC module has independent limit adjustments for LDC, LDV, and  TEC plus shared adjustment of PD Bias. Independent programmable control and monitoring of laser current, temperature, voltage, and other parameters for 32 laser diodes.

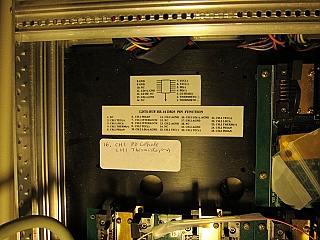

We have verified its working condition with 16-ch E-tek butterfly laser mount fixture for type-2 laser (signal source laser) (this fixture is reserved for our lab and not included in this sale). After  you submit order, we will tell you the pinout definition of 25-pin connector of the plug-in module.  Net weight 22kg. Packed weight 26kg.

In stock (Only 1 left in stock)
  • US$4600.00
Qty:
Add a different product to compare
    CONDITION:

    Looks not much used. Looks very good cosmetic condition without large scratches. We have verified all 32 channels of mainframe is working with these 6 LDD/TEC modules, on type-2 signal lasers.


  • DIM Weight
    26.0000 kg
  • Store Part No.
    OTI-LDC-002C
  • Manufacturers
    • Manufacturer
      E-tek
