Fiber booster amplifier, EDFA 17dBm C-band benchtop instrument. Flat gain. Antec model: LLOA-17B
Next image
Zoom image

Fiber booster amplifier, EDFA 17dBm C-band benchtop instrument. Flat gain. Antec model: LLOA-17B


Not rated yet

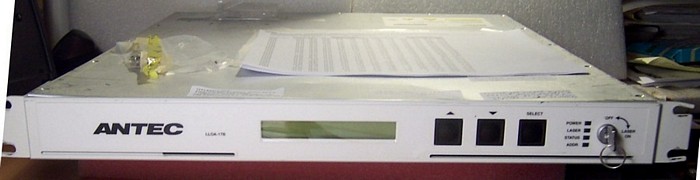

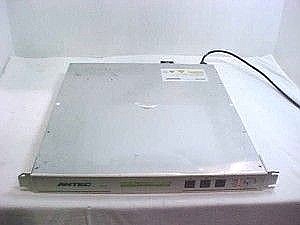

Antec 17dBm EDFA instrument over C-band, in 19-inch 1U rack. Minimum input power: -10dBm. From front panel, user can adjust output power by changing attenuation at optical output(see 11th photo below), adjust allowed minimum input power (For example, P in Trigger Level: Pump on -10dBm, see  12th photo below). Antec sold to Scientific Atlanta, then sold to Cisco. See very-similar-model specification at the 1st pdf link below, and more info at 2nd pdf link below.

In our lab test, on EDFA front panel: Set Atten=0dB, allowed minimum input power -10dBm. See our lab test result of gain, noise figure, and output power at -8dBm, -2dBm, and 4dBm input power at last pdf link below (noise figure result is not so accurate at high signal input). Output power 17dBm is verified at 4dBm and near 17dBm output at -2dBm  input over C-band. Gain is quite flat over C-band at -2dBm and 4dBm inputs and even -8dBm input.

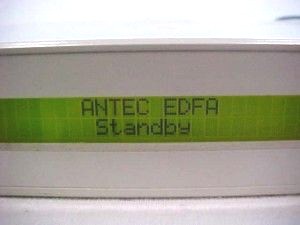

Last 12 photos only showing LCD are from similar model LLOA-17A, but the features of these two models are same.

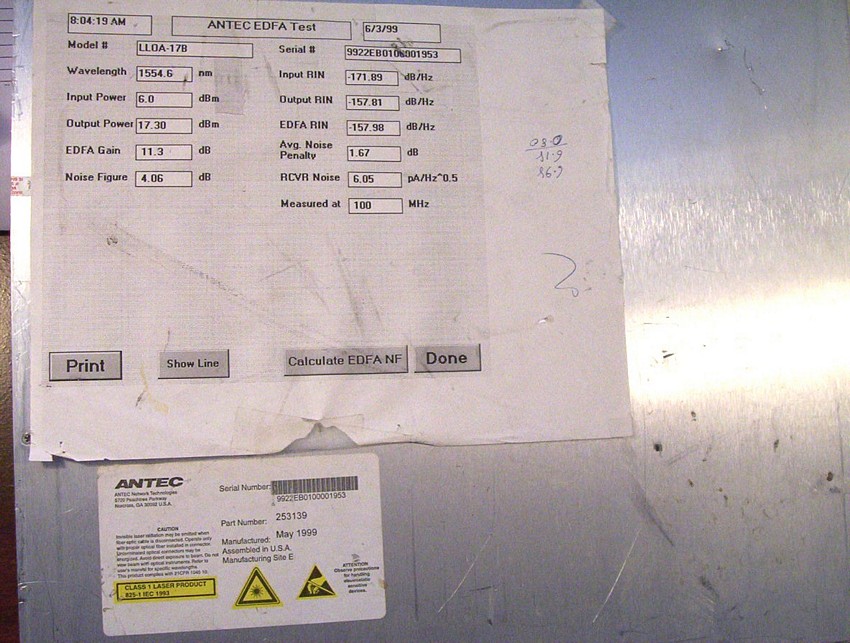

It came with following test data from previous user or manufacturer, see 6th photo :
Model# LLOA-17B
Wavelength: 1554.6nm
Input Power: 6.0dBm
Output Power: 17.30dBm
EDFA Gain 11.3dB
Noise Figure: 4.06dB
Input RIN: -171.89dB/Hz
Output RIN -157.81dB/Hz
EDFA RIN -157.98dB/Hz
Avg. Noise Penalty: 1.67dB
RCVR Noise: 6.05pA/Hz^0.5
Measured at: 100MHz.

In stock (Only 1 left in stock)
  • US$1450.00
Qty:
Add a different product to compare
    CONDITION:

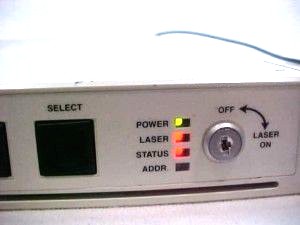

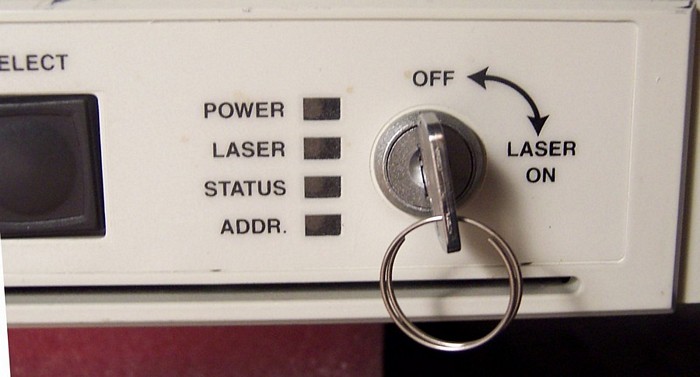

    Used. LCD is clear. Small dent on the top (shown in the 7th picture). One key as power switch is attached. Power Cord is included. Internal fiber connectors have been cleaned by fiber cleaner pen.


  • DIM Weight
    8.5000 kg
  • Store Part No.
    OTI-EDFA-004
  • Manufacturers
    • Manufacturer
      Antec
