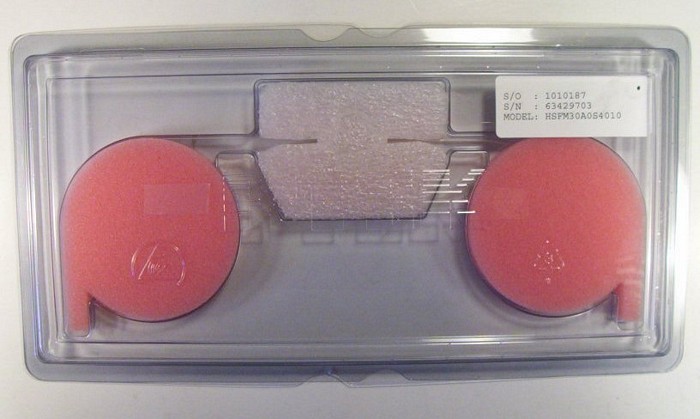

Fiber Faraday Rotator Mirror. Around 1540nm. E-TEK (JDS) P/N: HSFM30A0S4010

1540nm+/-15nm. Without fiber connector. 900 µm tight buffer (SMF-28). 1-meter long. The Faraday Rotator Mirror (FRM) is a low-cost, passive device that correctly compensates for such SOP variations. This simple, easily installed component works to neutralize the effects caused by changes in the SOP, allowing engineers greater control over the design of systems such as fiber sensors, erbium-doped fiber amplifiers, and tunable fiber lasers.The fiber faraday rotator mirror eliminates polarization fringe fading in fiberoptic Michelson Interferometer Sensors. This is achieved passively and is independent of the initial state of polarization. The product provides low insertion loss, high reverse coupling efficiency, and low return loss.Key Features_ High reflection coefficiency_ High power handling_ Multiple wavelengths availableApplications_ DWDM systems_ Advance optical instrumentation

PDF datasheet 18.8 kB
Other info in HTML 18.8 kB

Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal	Discount
From $500	2 %
From $750	3 %
From $1000	4 %
From $1250	5 %
From $1500	6 %
From $1750	7 %
From $2000	8 %
From $2500	9 %
From $3000	10 %

Manufacturers
- Manufacturer
  E-tek
