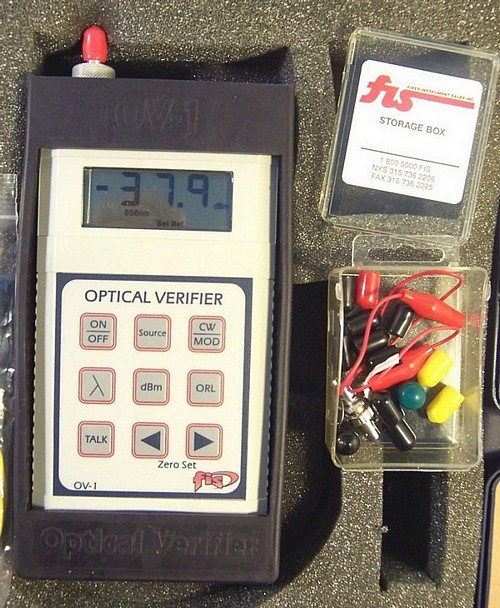

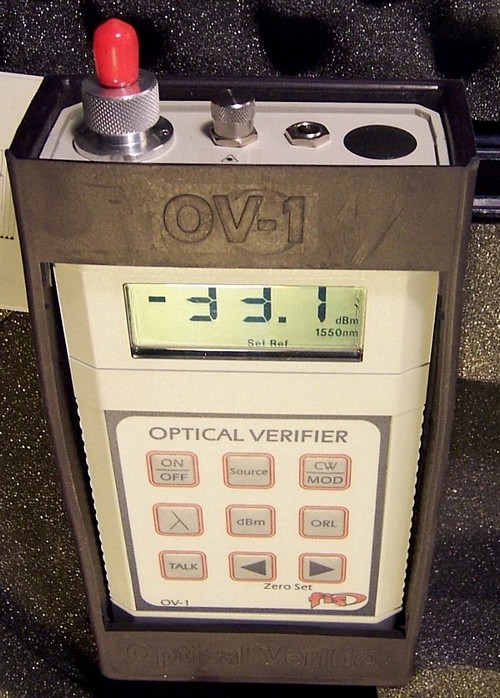

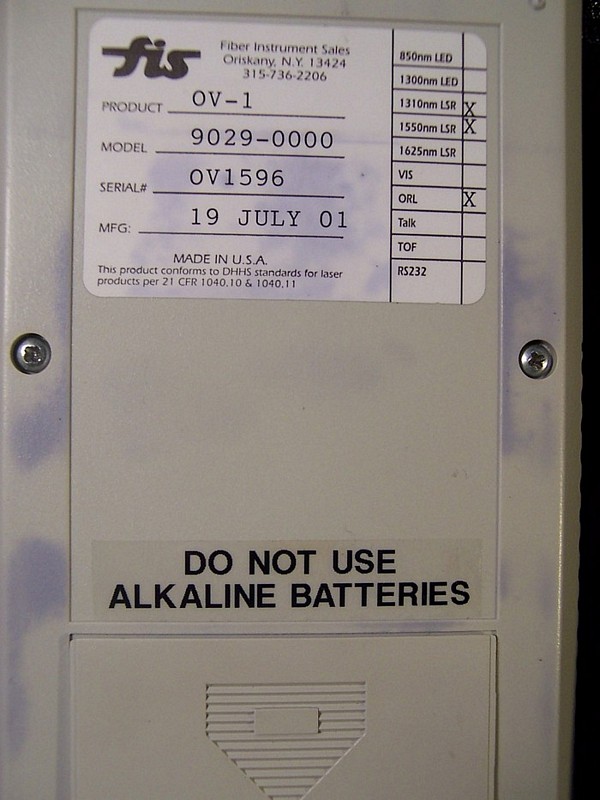

FIS Optical Verifier OV-1. Return loss & insertion loss test set. With 1.3/1.55um lasers and 850/1310/1550nm power meter. PN:9029-0000.
Next image
Zoom image

FIS Optical Verifier OV-1. Return loss & insertion loss test set. With 1.3/1.55um lasers and 850/1310/1550nm power meter. PN:9029-0000.


Not rated yet

It comes with 1.31/1.55um laser sources and 850/1310/1550nm power meter. PN: 9029-0000. Economical solution, this test kit can do return loss, insertion loss, optical power test. It can be also used as 1.3um and 1.55um laser sources.

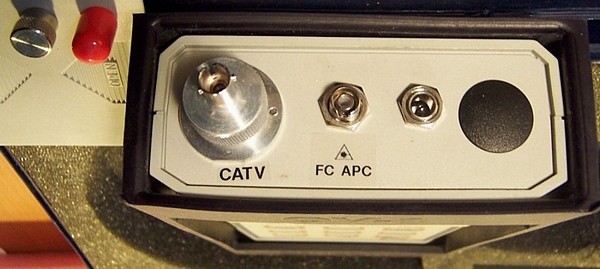

ST adapter at receiver. FC/APC adapter at optical source, and internal fiber connector looks quite clean under fiber scope for female connector.

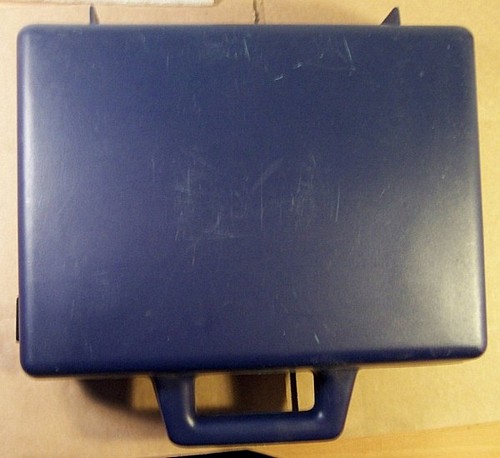

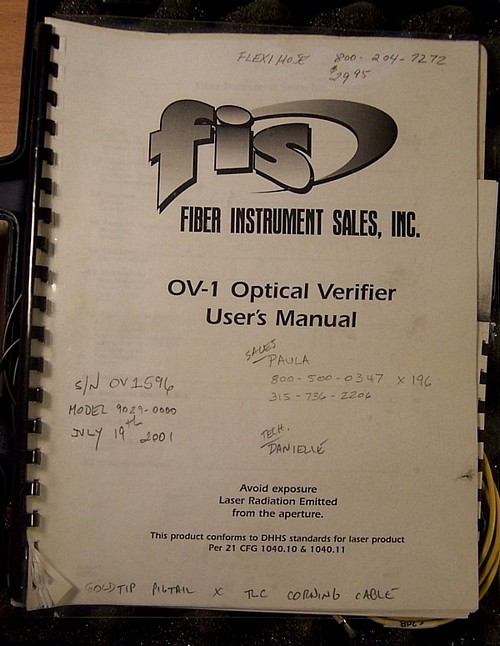

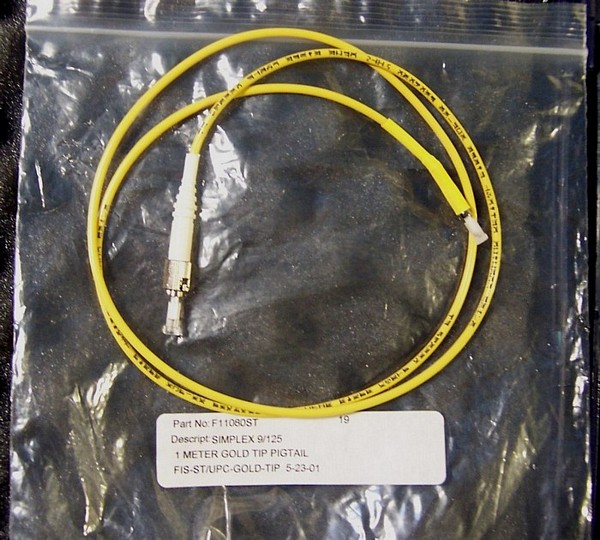

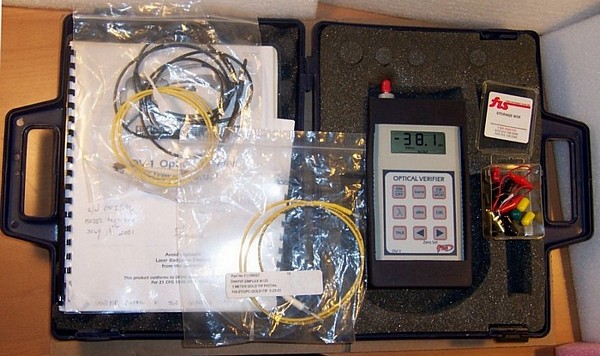

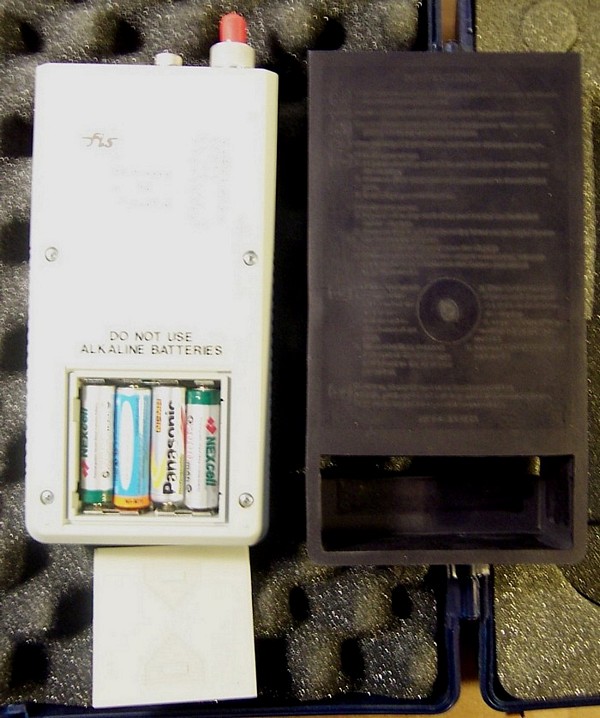

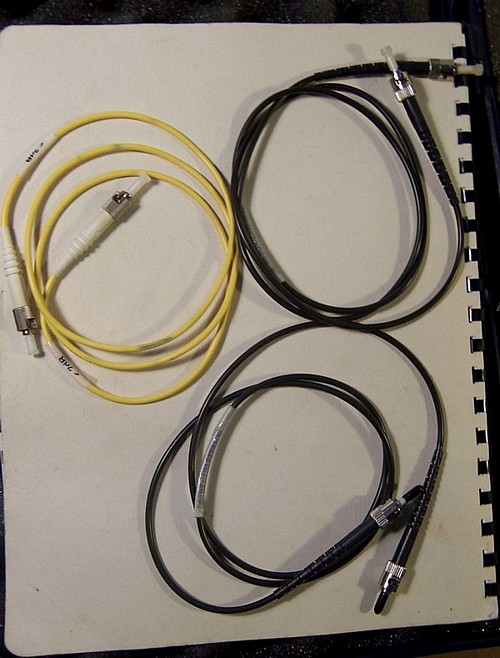

AC power adapter/charger is missing. We include 4 used 1.5V NiMH rechargeable batteries(see 5th photo below). A gold tip 100% reflector jumper with ST connector is attached(see 7th photo). There are also a ST-ST SMF jumper, two ST-ST MMF jumpers(they look like 62.5/125um fibers under fiber scope), one ST fiber adapter, a user manual (same as pdf link below). With carrying case. Original price $1995 from FIS.

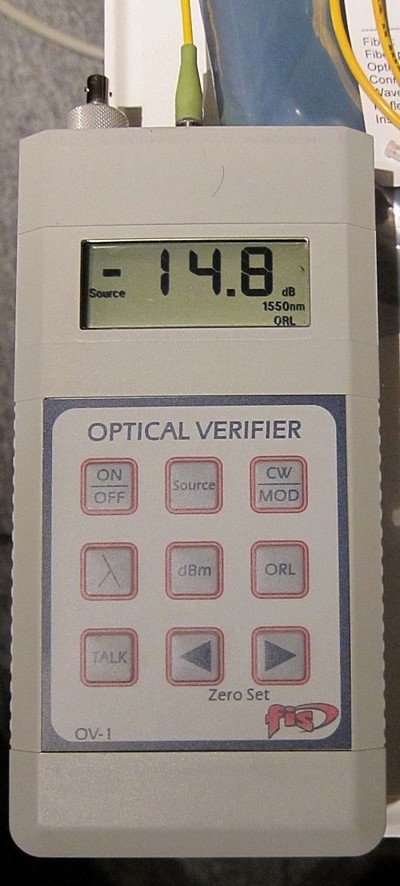

We have tested on a JDS FC/APC-FC/UPC SMF jumper, got back reflection -14.8dB or -14.7dB from non-terminated FC/UPC connector (see last photo), this result matches theoretical prediction of about 3.4% (-14.7dB) reflection from bare glass.
Note: Before ORL test, we applied gold tip near-100% reflector jumper with FC/APC connector(Store Product Code: OFC-REFL-REF-005C), and pressed "ZERO" left arrow button until display shows -0.5dB.

Optical power meter gives same result as our HP81525A optical head at 1550nm -3dBm laser input.

In stock (Only 1 left in stock)
  • US$690.00
Qty:
Add a different product to compare
    CONDITION:

    Good cosmetic condition. Powers up and shows clear digits on the display. Back reflection is tested ok at our lab.


  • DIM Weight
    4.0000 kg
  • Store Part No.
    OTI-LOSS-KIT-007D
