HP 86120C multi-wavemeter, 1270 - 1650 nm, with FC/PC optical interface.
Next image
Zoom image

HP 86120C multi-wavemeter, 1270 - 1650 nm, with FC/PC optical interface.


Not rated yet

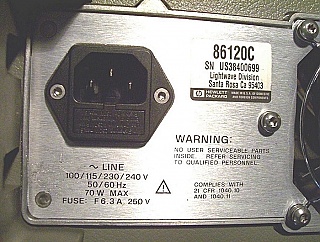

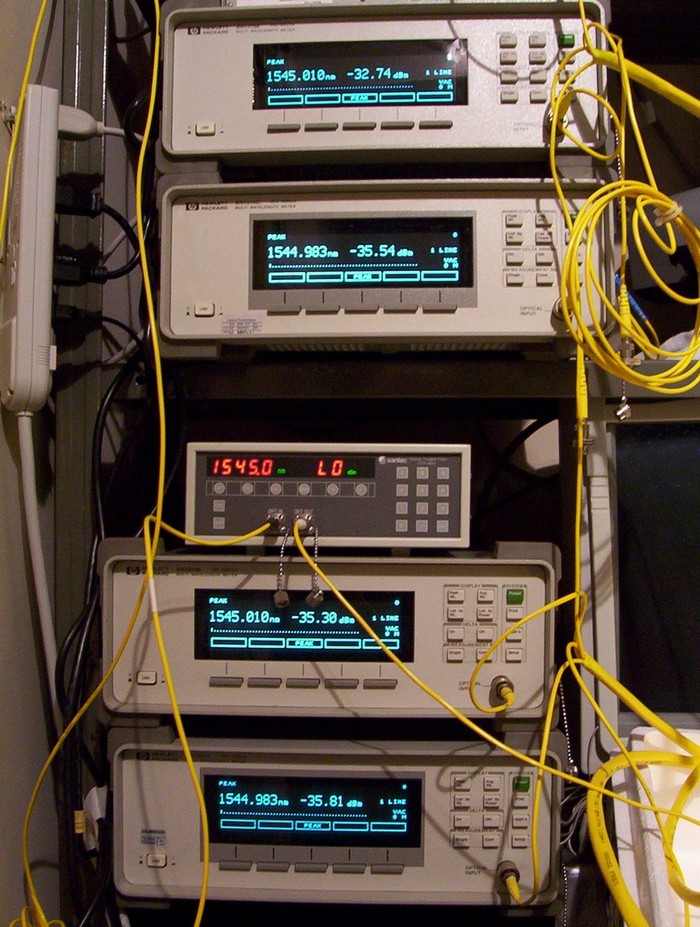

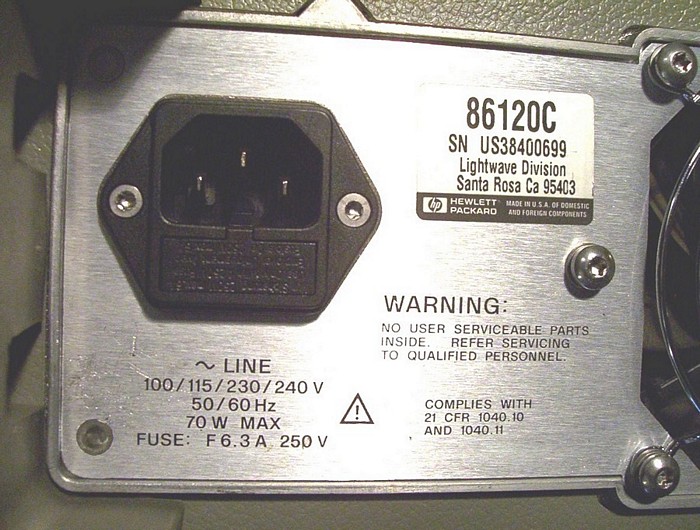

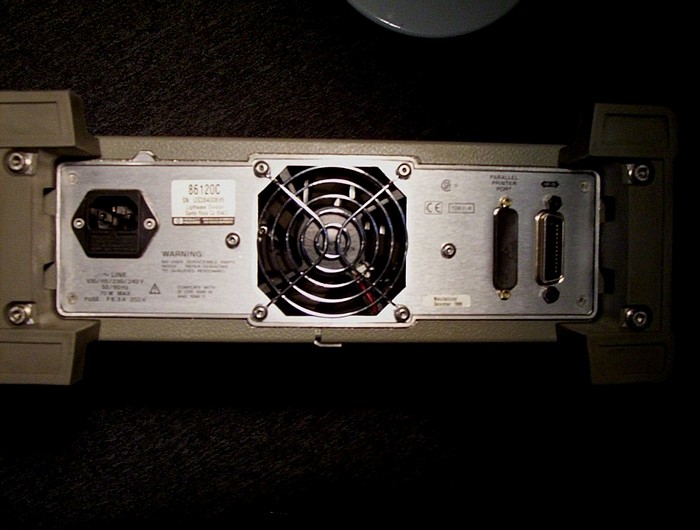

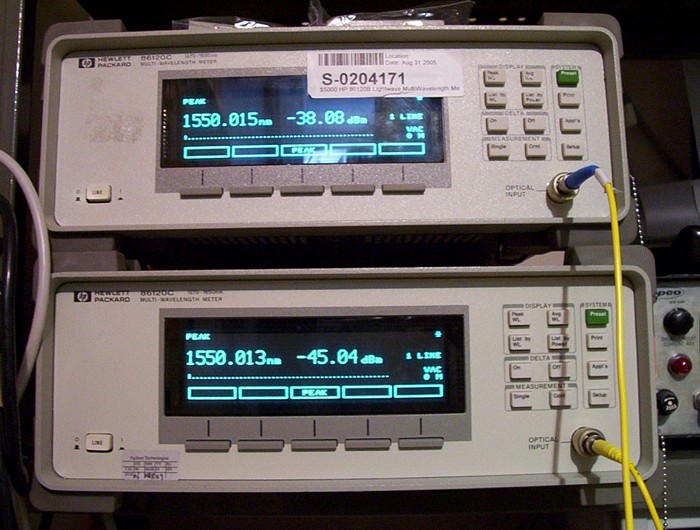

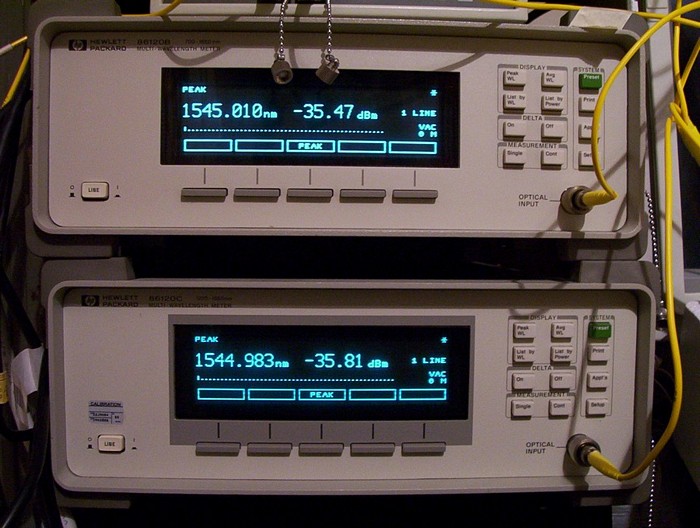

We compared the HP 86120C with our calibrated HP86120B (which was calibrated few months ago by Agilent) , test result difference is 1pm or less at 1550nm.Previous test results at our lab :Wavelength test data comparison among four HP 86120B wavemeters and two HP 86120C wavemeters. With same tunable laser:six wavemeters show almost same wavelength data (all between 1558nm and 1560nm) With same JDS TB9 tunable filter (after broadband source):four HP 86120B wavemeters show same wavelength data 1545.010nm Two HP 86120C wavemeters show same wavelength data 1544.983nm. With power cordThe back of the instrument shows it is made in USA, 100/115/230/240V max, 50/60Hz. Unpacked weight: 8.5kg, unpacked dimension: 140x340x465mm
Out of stock
  • US$5900.00
Add a different product to compare
    CONDITION:
    Very good cosmetic condition. Wavelength value verified well @1.55um, no error. GPIB commands tested good

  • DIM Weight
    15.0000 kg
  • Store Part No.
    OTI-WLMETER-001
  • Manufacturers
    • Manufacturer
      Hewlett Packard
