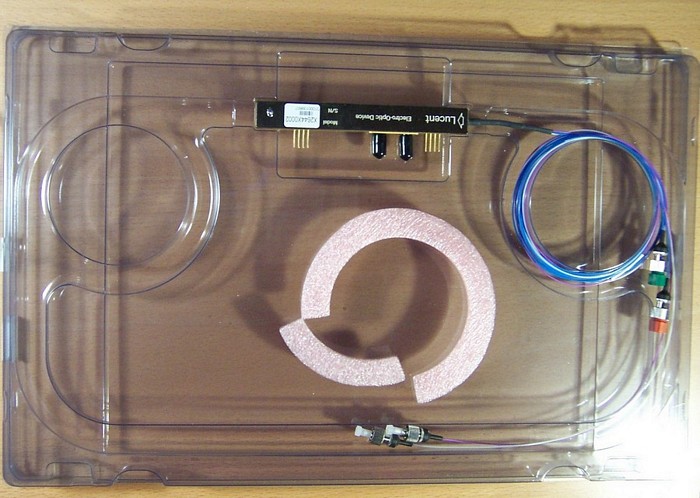

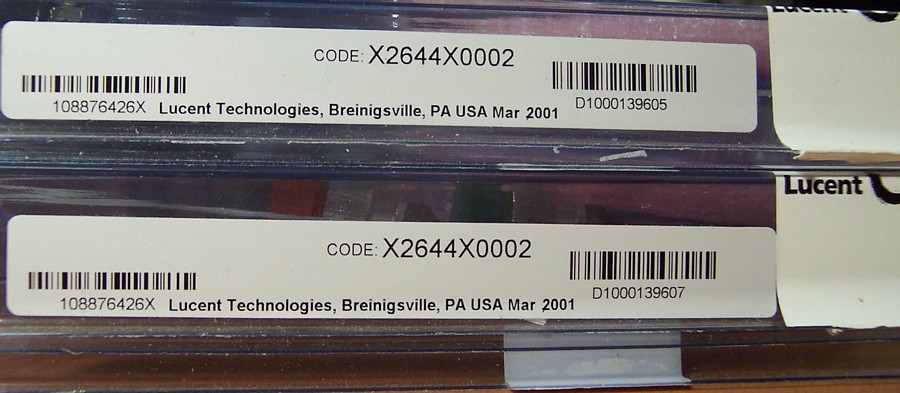

It seems 20Gb modulator. With 4 FC/PC fiber connectors, all at one side of modulator body. Lucent model: 2644X0002. 'Sell As Is'.
Next image
Zoom image

It seems 20Gb modulator. With 4 FC/PC fiber connectors, all at one side of modulator body. Lucent model: 2644X0002. 'Sell As Is'.


Not rated yet

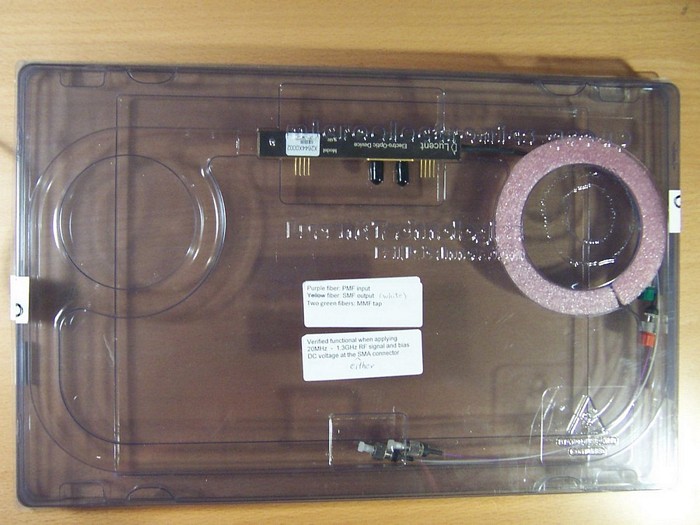

This device may be 20Gb modulator, it seems prototyping before large production. It comes with 4 FC/PC fiber connectors.

We made some examination and simple test on this module:

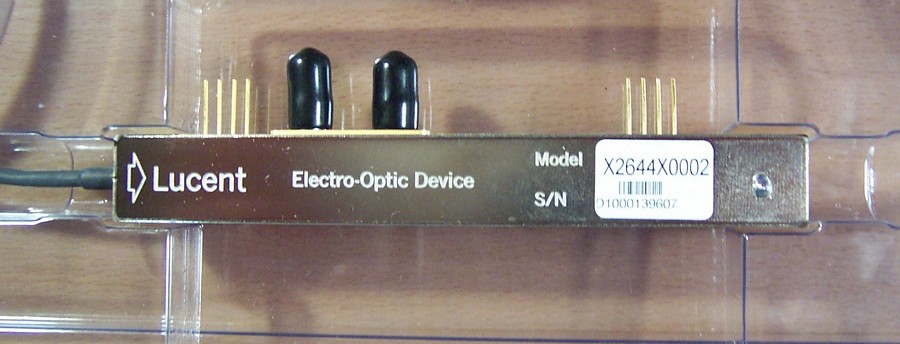

The purple fiber is PMF input. The white fiber is SMF output. The two green fibers are MMF tap output, these two MM fibers should be for power monitoring. Verified functional when applying 20MHz - 1.3GHz at either RF port (we do not have instruments to test higher than 1.3GHz). Electrical interface: Two SMA-like RF connectors; Dual four-pins may be used to control attenuation and monitor optical power.

Last two photos are from other similar model: 2646NAT. Pinout info might be same as this model 2644. The 7th photo is from different model: 2644.

We cannot find pdf datasheet. The pdf link below is for different model.

In stock (Only 1 left in stock)
  • US$280.00
Qty:
Add a different product to compare
    CONDITION:

    seems slightly used, in original product pack. Without manufacture test data. Last two photos are from other model: 2646NAT. The 7th photo is from different model: 2644. "Sell As Is". You can try and return, but two-way shipping fee is not refundable.


  • DIM Weight
    2.0000 kg
  • Store Part No.
    OSC-MOD-10Gb-011W
  • Manufacturers
    • Manufacturer
      Lucent
