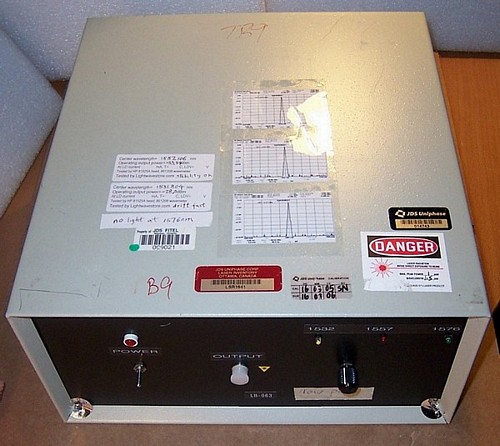

JDS benchtop 1532nm/1557nm DFB laser source, low output power, FC/PC adapter, DFB laser with single wavelength peak.

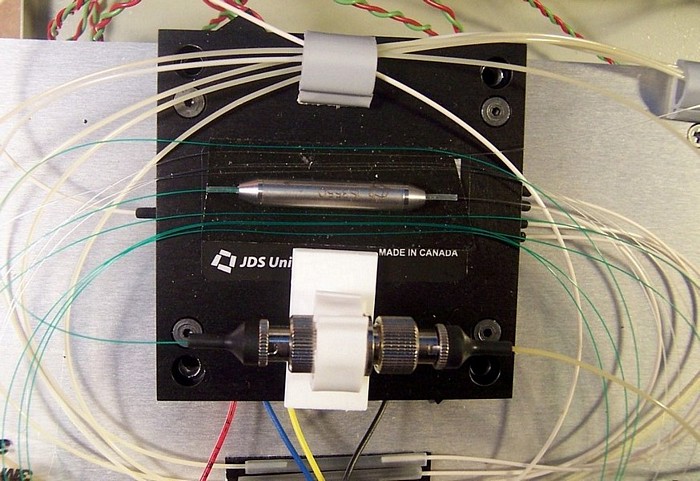

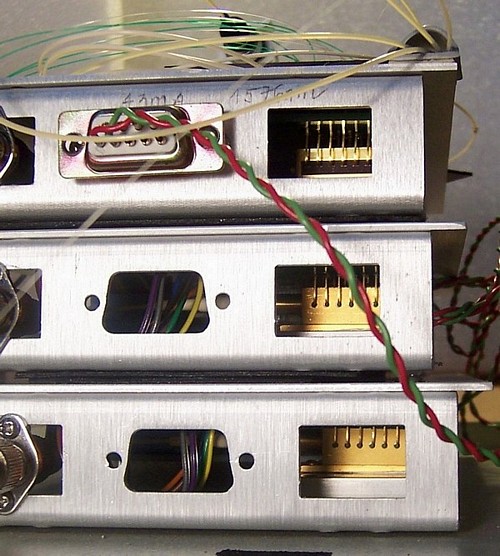

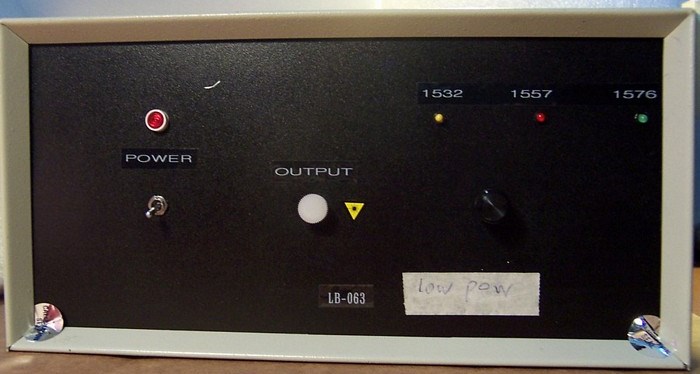

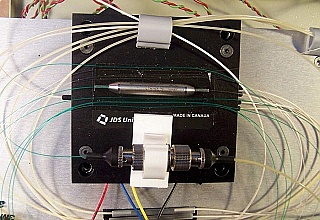

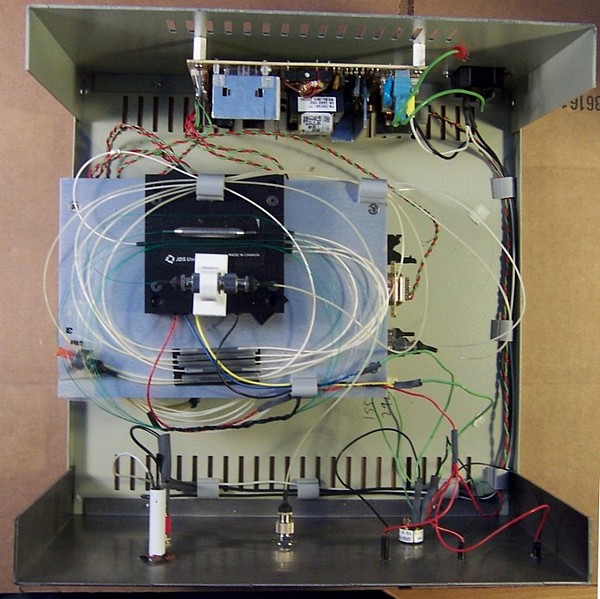

You can select wavelength between 1532nm and 1557nm at the front panel of the instrument (there is not optical output power at 1576nm port). Laser modules are in 14-pin butterfly with TEC (see last photo). There are one 1x4 optical switch inside the instrument to select laser source module. There is optical isolator (JDS P/N: IS3550) at common port of optical switch. The lasers are driven by a regulated switching power supply.

FC/PC adapter at output port. Internal SM fiber connector looks clean under fiber scope for female connector.

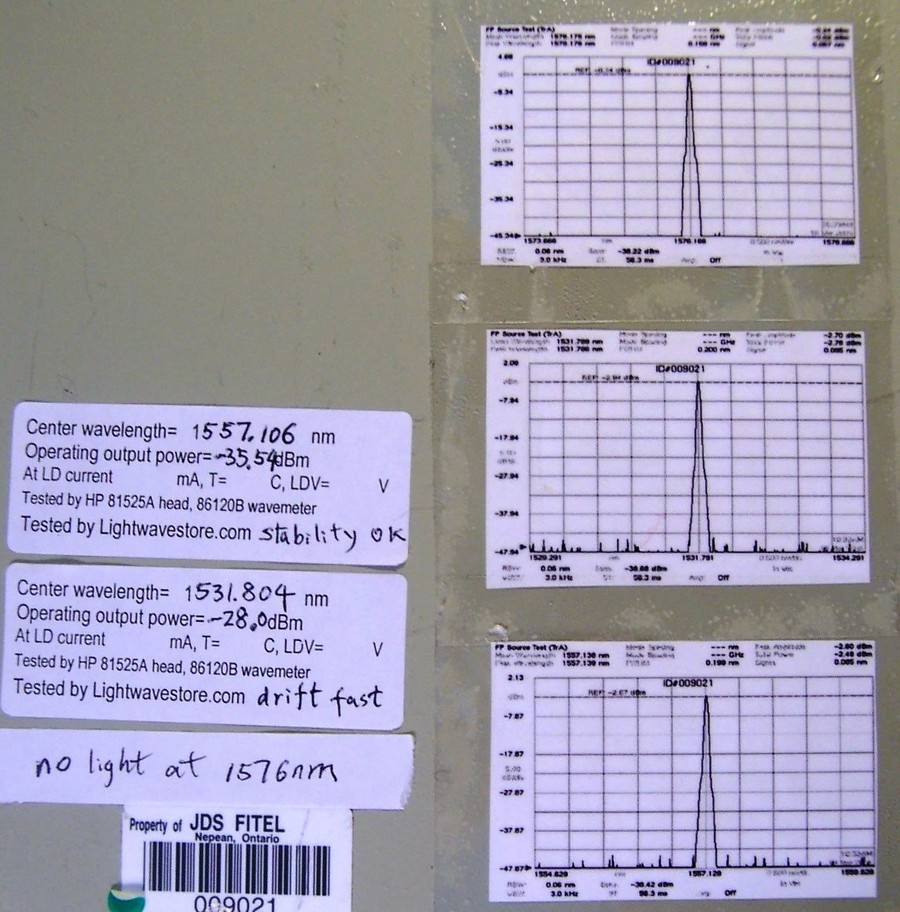

We tested output power and peak wavelength after at least 40 minutes warmup (see 3rd photo below) below. Tested laser output power and wavelength:
-28.0dBm 1531.804nm at 1532nm port, power drift is quite fast.
-35.54dBm 1557.106nm at 1557nm port, power stability is ok.

Original tested optical spectrum result by JDS was labeled on 3rd photo.

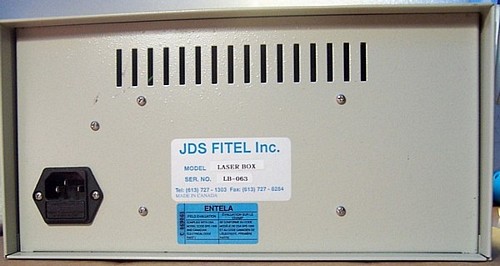

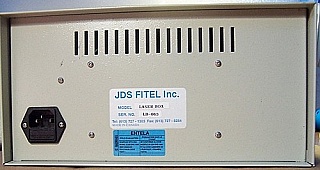

AC input: 100V - 240V. A power cord will be attached.

Net weight: 4.4kg. Dimension: 30x28x14 cm
