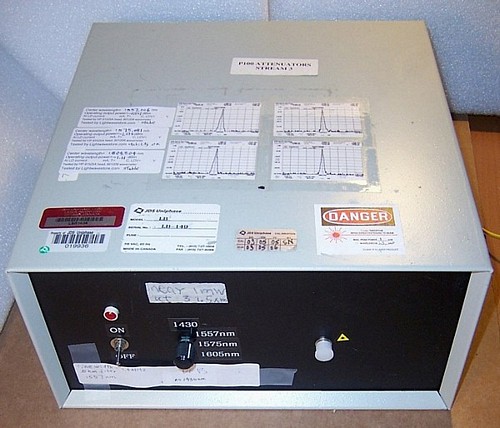

JDS benchtop 1533nm/1557nm/1575nm/1605nm DFB laser source, low output power, FC/PC adapter, DFB laser with single wavelength peak.
Next image
Zoom image

JDS benchtop 1533nm/1557nm/1575nm/1605nm DFB laser source, low output power, FC/PC adapter, DFB laser with single wavelength peak.


Not rated yet

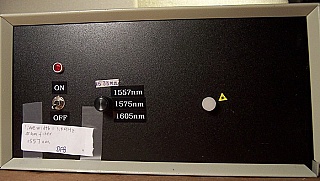

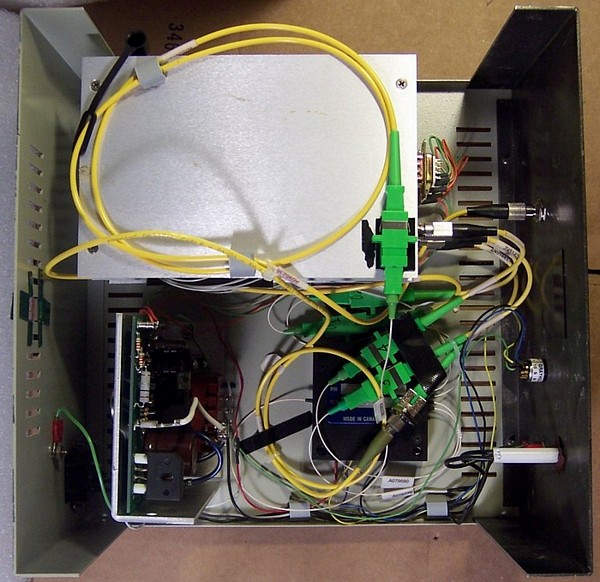

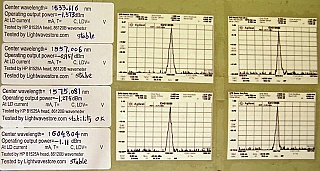

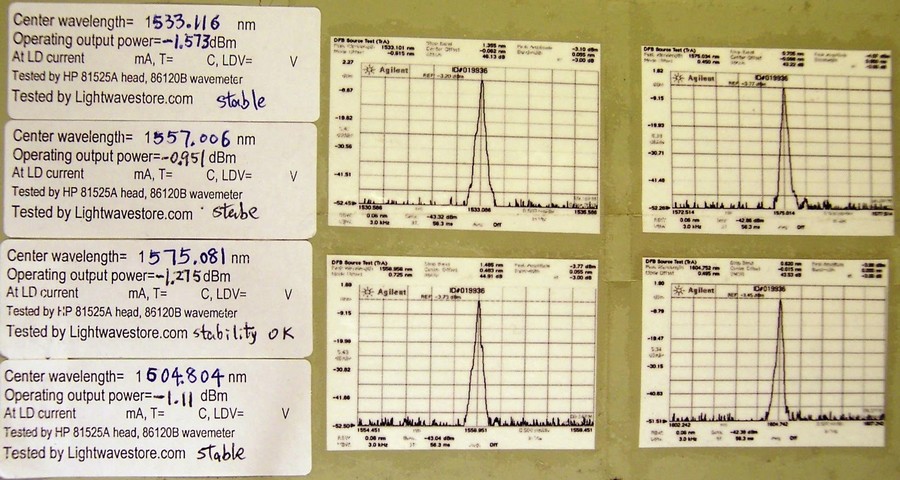

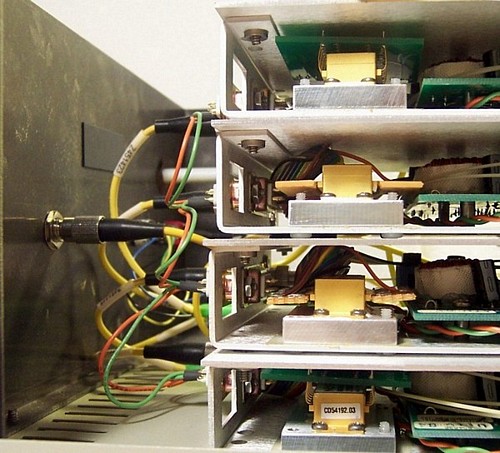

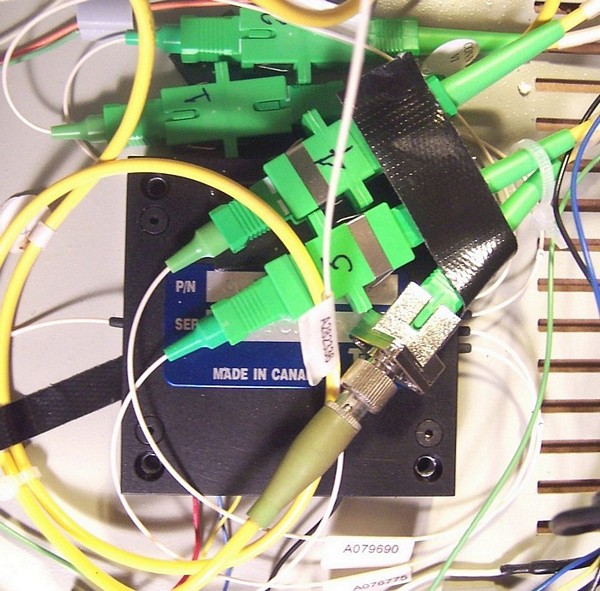

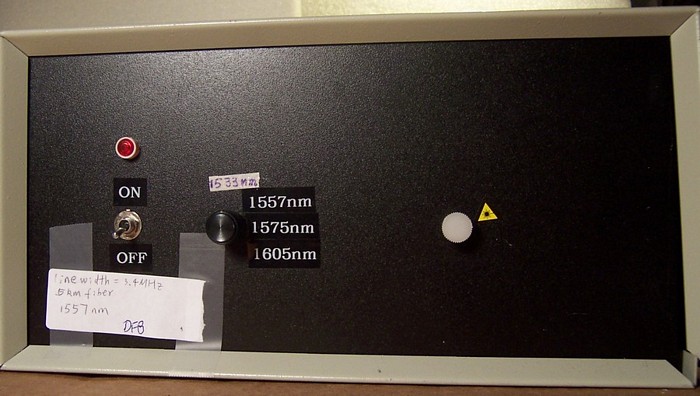

You can select wavelength among 1533nm/1557nm/1575nm/1605nm at the front panel of the instrument . Laser modules are in 14-pin butterfly with TEC (see last photo below). There are one 1x4 optical switch (JDS P/N: SW14) inside the instrument to select laser source module. The lasers are driven by a regulated linear power supply (GHOF 1-5 Rev.A, output 5V 3.0A). FC/PC adapter at output port. Internal SM fiber connector looks clean under fiber scope for female connector. We tested output power and peak wavelength after warmup (see 3rd photo below) below. Output power is stable. Tested laser output power and wavelength:-1.573dBm 1533.116nm at 1533nm port.-0.951dBm 1557.006nm at 1557nm port.-1.275dBm 1575.081nm at 1575nm port.-1.11dBm 1604.804nm at 1605nm port. Original tested optical spectrum result by JDS was labeled on 3rd photo below. AC input: 110V/120V is standard option. Upon your request, we can change to other AC input voltage option by re-wiring inside instrument. A power cord will be attached. Net weight: 4.4kg. Dimension: 30x28x14 cm

In stock (Only 1 left in stock)
  • US$1050.00
Qty:
Add a different product to compare
    CONDITION:

    Cosmetic condition is OK.


  • DIM Weight
    7.0000 kg
  • Store Part No.
    OTI-Tx-L-202D
