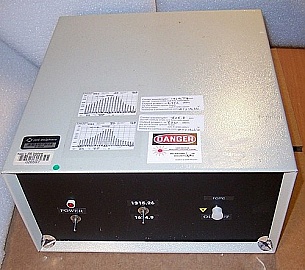

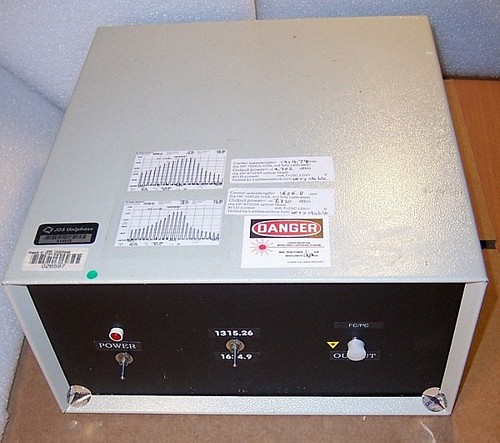

JDS benchtop stabilized 1315.26m/1624.9nm laser source, FC/PC adapter, FP laser with multimode lasing.
Next image
Zoom image

JDS benchtop stabilized 1315.26m/1624.9nm laser source, FC/PC adapter, FP laser with multimode lasing.


Not rated yet

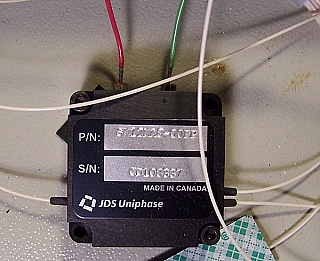

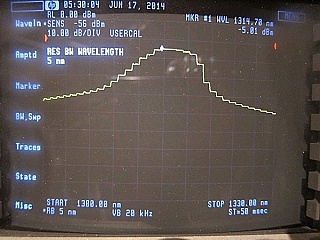

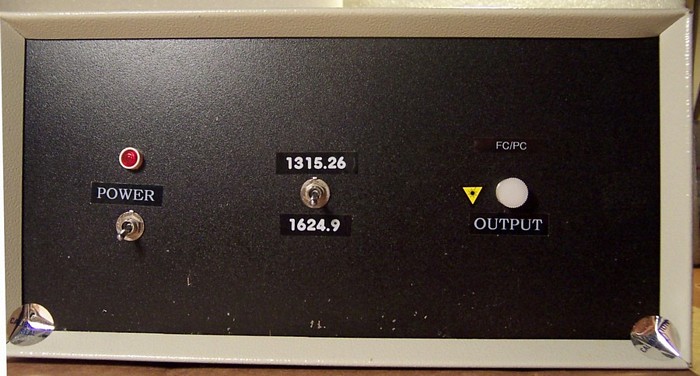

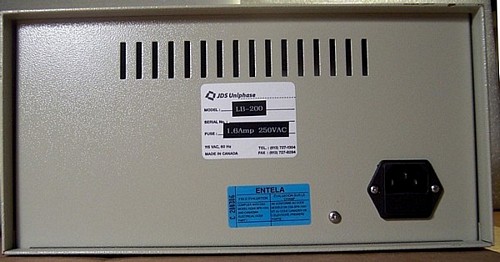

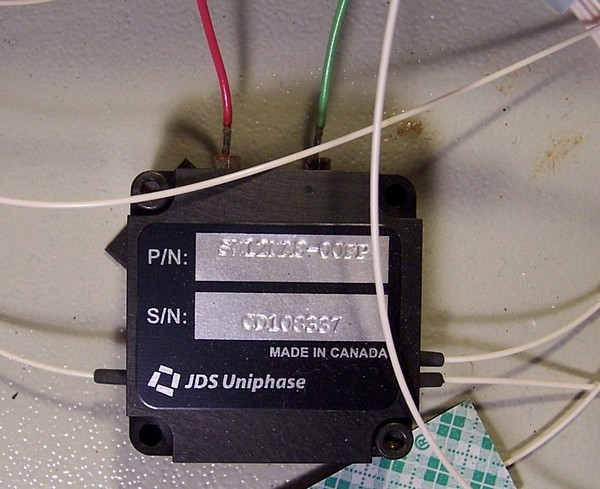

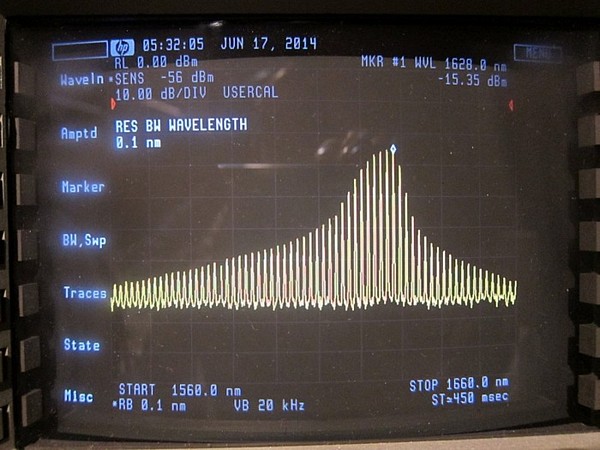

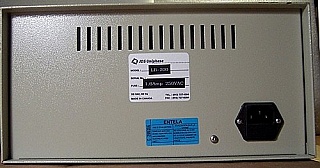

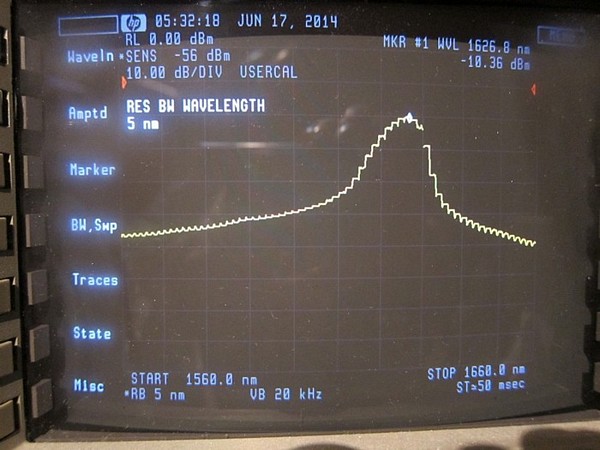

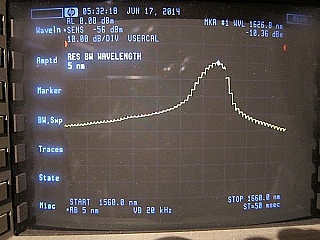

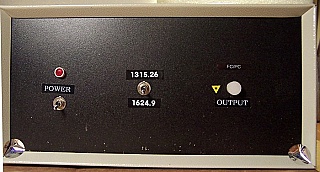

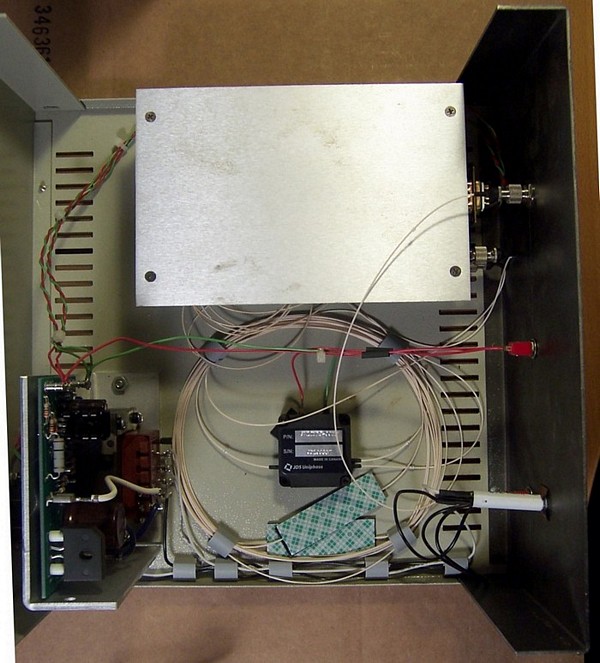

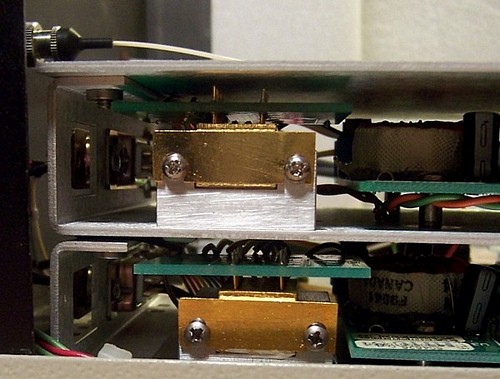

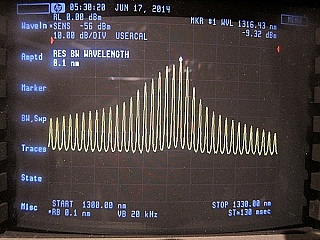

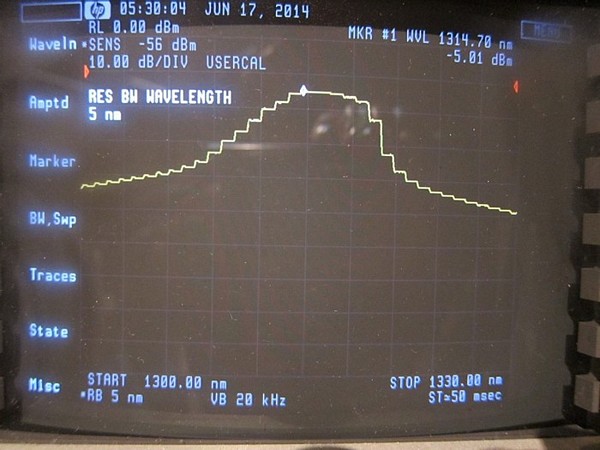

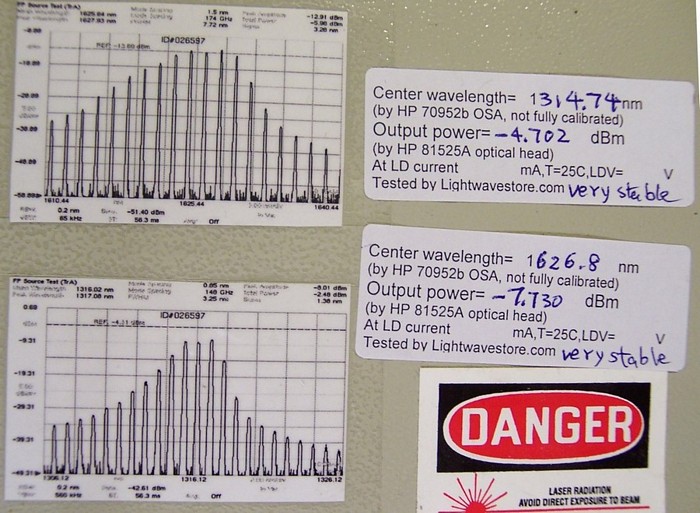

You can select wavelength between 1315.26m and 1624.9nm at the front panel of the instrument. Laser modules are in 14-pin butterfly with TEC (see 8th photo below). There are one 1x2 optical switch (JDS P/N: SW12NA8-00FP) inside the instrument to select laser source module. The lasers are driven by a regulated linear power supply (GHOF 1-5 Rev.A, output 5V 3.0A). FC/PC adapter at output port. Internal SM fiber connector looks clean under fiber scope for female connector. We tested output power after warmup (see 3rd photo below) and optical spectrum (see last 6 photos below. Center wavelength data is from OSA test with RBW=5nm). Optical output power is very stable. Tested laser output power and center wavelength : -4.702dBm 1314.74nm at 1315.26nm port. -7.730dBm 1626.8nm at 1624.9nm port. Original tested optical spectrum result by JDS was labeled on 3rd photo below. AC input: 110V/120V is standard option. Upon your request, we can change to other AC input voltage option by re-wiring inside instrument. A power cord will be attached. Net weight: 4.4kg. Dimension: 30x28x14 cm

In stock (Only 1 left in stock)
  • US$380.00
Qty:
Add a different product to compare
    CONDITION:

    Cosmetic condition is OK.


  • DIM Weight
    7.0000 kg
  • Store Part No.
    OTI-Tx-L-201D
