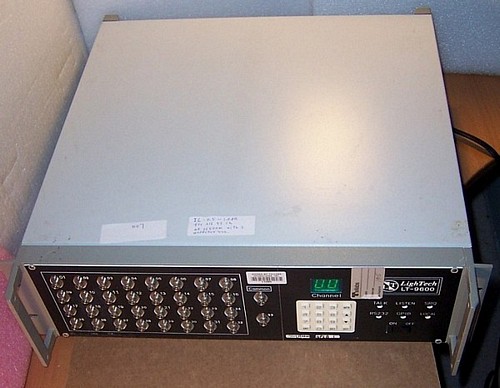

LT-9600 1x33 Fiber optic switch with LED display. LIGHTech P/N:SM-1-32-FC/APC-L-A
Next image
Zoom image

LT-9600 1x33 Fiber optic switch with LED display. LIGHTech P/N:SM-1-32-FC/APC-L-A


Not rated yet

FC/APC optical interface.

User instruction example to switch on optical path between channel 33 and COM port:

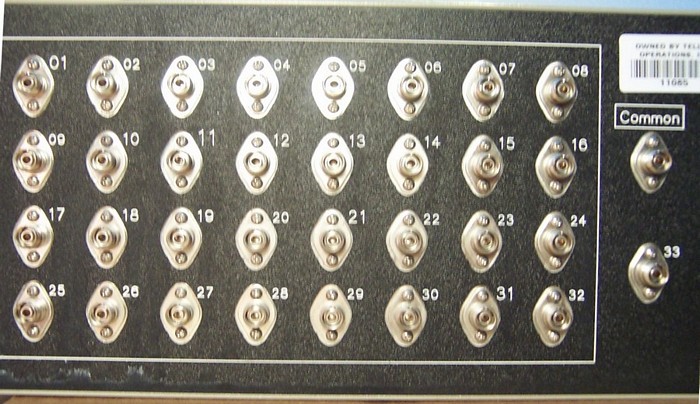

At front panel,  insert the fiber end of optical source into COM port, insert the fiber end of optical receiver into port 33.

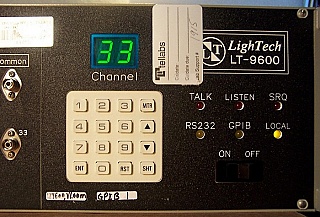

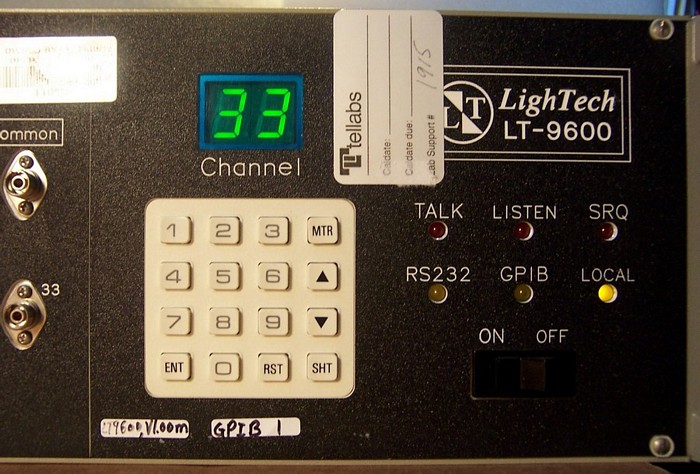

Type in “33” "ENT" on keypad,  then LCD will show "33".
You can also adjust channel number gradually by pressing Up-Arrow key or Down-Arrow key on keypad.

Our test result of insertion loss of 1x33 switch from COM port to any channel  of 33 channels is from 0.5dB to 1.0dB, at 1550nm, including 2 FC/APC connector loss.

GPIB commands are unknown.

In stock (Only 1 left in stock)
  • US$870.00
Qty:
Add a different product to compare
    CONDITION:

    Good cosmetic condition. Keypad is responsive, LED display is clear. GPIB commands are unknown working, *idn? returns: LT9600, V1.00m


  • DIM Weight
    14.0000 kg
  • Store Part No.
    OTI-SW-007
  • Manufacturers
    • Manufacturer
      Lightech
