LT-9700 Adjustable attenuator. Lighttech P/N: A205G-FCA. ‘Sell As Is’, ‘No return’.
Next image
Zoom image

LT-9700 Adjustable attenuator. Lighttech P/N: A205G-FCA. ‘Sell As Is’, ‘No return’.


Not rated yet

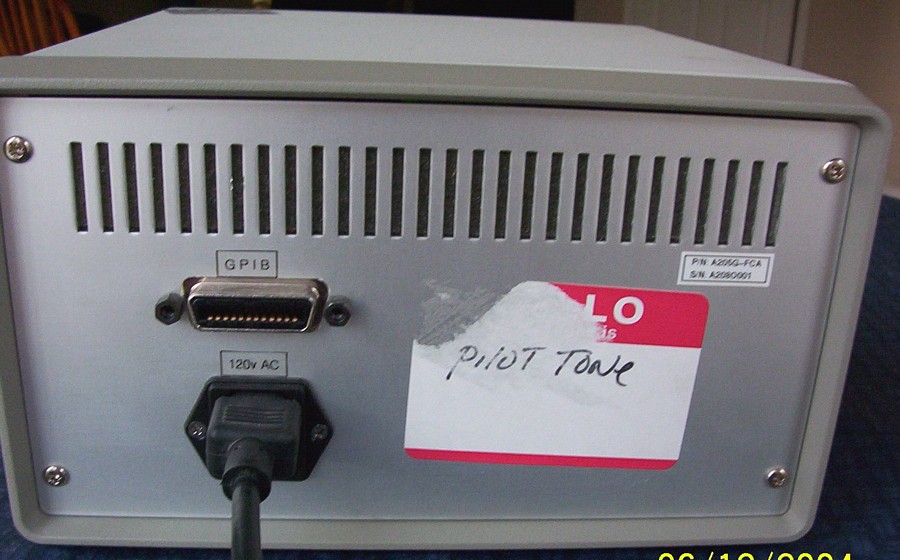

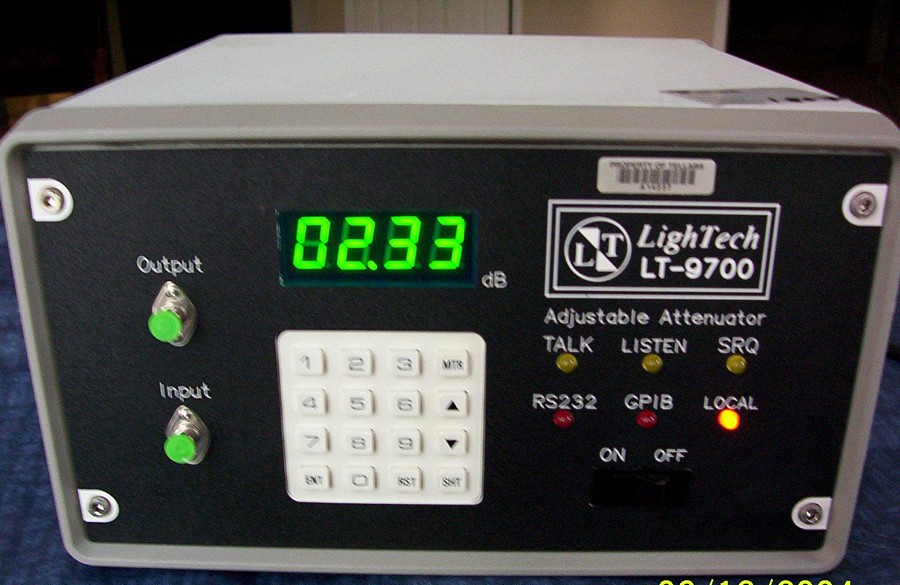

FC/APC optical interface. Max attenuation: 20dB. See photos below for actual equipment. User instruction: To set 10dB attenuation, key in: 1 0 0 0 "ENT". You can also press upper or down arrow button on keypad to adjust attenuation by 0.1dB increment.

In stock (Only 1 left in stock)
  • US$160.00
Qty:
Add a different product to compare
    CONDITION:

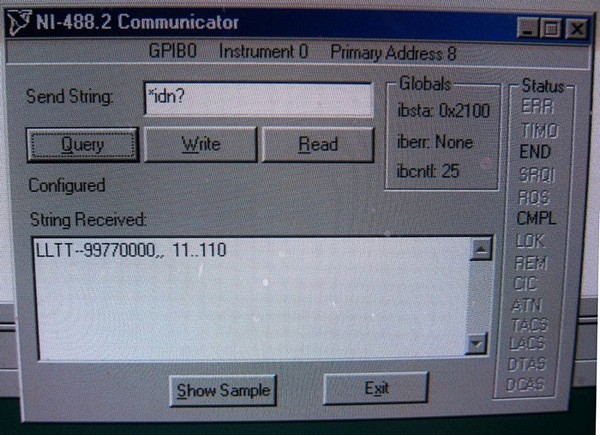

    Good cosmetic condition. We failed to figure out GPIB commands, only got *IDN? query result at last photo.

    At 1550nm, we tested insertion loss (including 2-connector loss) with HP81525A optical head:
    Set 0dB, IL=1.15dB.
    Set 2.01dB, IL=3.79dB.
    Set 5.02dB, IL=6.85dB.
    Set 10.02dB, IL=12.27dB.
    Set 15.03dB, IL=17.65dB.
    Set 20.00dB, IL=24.27dB.

    Occasionally, attenuation would drop to 0dB setting.
    Occasionally, keypad is locked, then you need reboot equipment.

    ‘Sell As Is’, ‘No return’.


  • DIM Weight
    11.0000 kg
  • Store Part No.
    OTI-VOA-SM-006
