Metro-Access DWDM Erbium Doped Fiber Amplifer Unit. For both boost and pre/inline amplifier. JDSU P/N:  LAP-MCH00XR00A.  It includes  18dBm 2-stage gain-flat EDFA module with mid-stage accesss, JDSU P/N: OAA-18F-12511C.
Next image
Zoom image

Metro-Access DWDM Erbium Doped Fiber Amplifer Unit. For both boost and pre/inline amplifier. JDSU P/N: LAP-MCH00XR00A. It includes 18dBm 2-stage gain-flat EDFA module with mid-stage accesss, JDSU P/N: OAA-18F-12511C.


Not rated yet

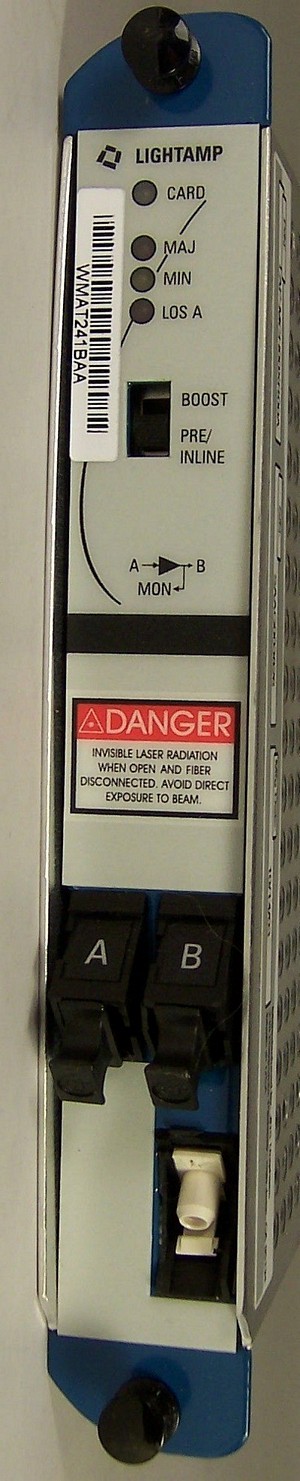

There is switch on from panel to choose between boost and pre/inline amplifier.

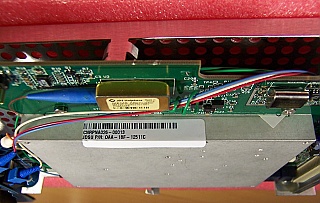

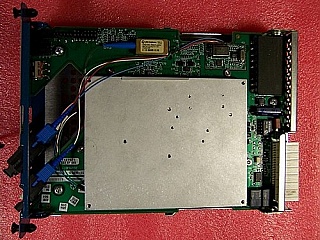

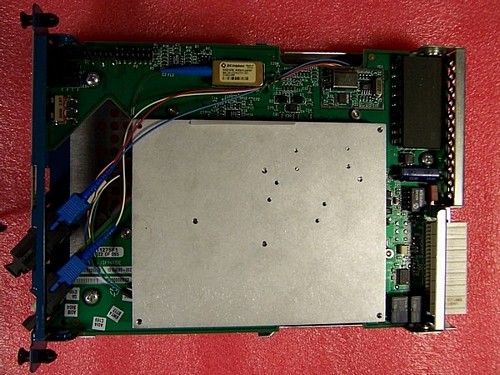

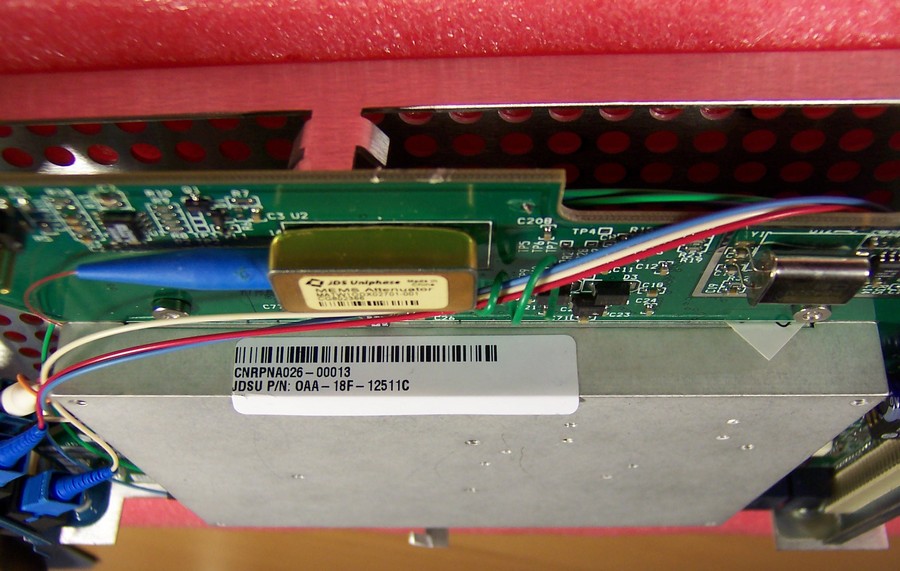

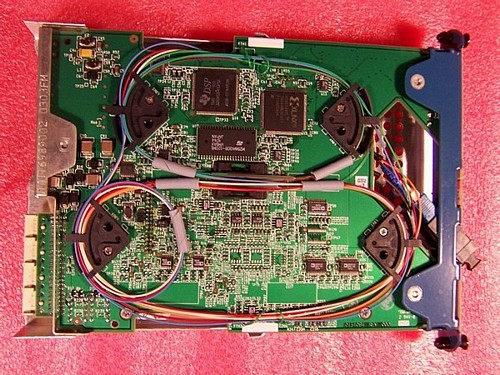

It includes one 2-stage gain-flat EDFA module with mid-stage access, JDSU P/N: OAA-18F-12511C, saturated output 18dBm, with 36-electrical pins, as shown at the last 2 photos below. See EDFA module specification including pinout info at 2nd pdf link below, so you can run this EDFA just like you drive two laser modules. It comes with 5 fibers (same as page 2 of 2nd pdf link, except that input monitor black fiber does not exist). There is also a MEMS variable attenuator MATW10DX02701-001, we believe it is paced between 2-stage amplifier.

Since there are two fiber amplifiers inside the EDFA module, pump laser power or qty should be higher than regular. You may also remove the lasers for your project.

The unit is with two SC/UPC adapter.

In stock (Only 2 left in stock)
  • US$780.00
Qty:
Add a different product to compare
    CONDITION:

    Looks new cosmetic condition.


  • DIM Weight
    1.2000 kg
  • Store Part No.
    OMS-OAM-072C
