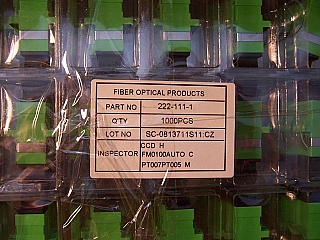

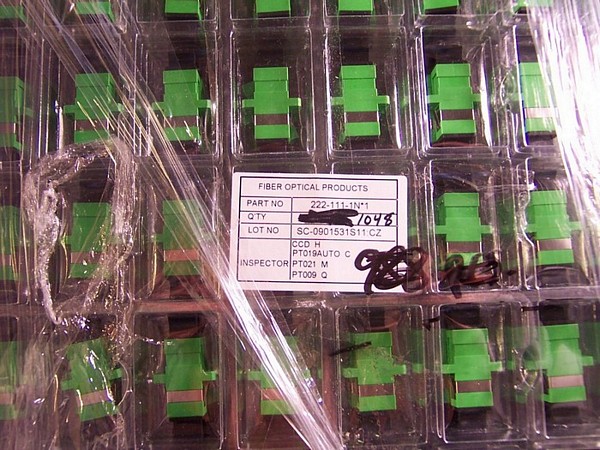

Min order qty: 10pc. $1.35/$0.8 each if buy 100pc/1000pc. Simplex SC/APC to SC/APC. Zirconia internal split sleeve. with flange. Senko P/N: 222-111-1 (or 222-111-1N*1). AFL Telecommunications P/N: C080810. Lot No.: SC-0901531S11:CZ
Next image
Zoom image

Min order qty: 10pc. $1.35/$0.8 each if buy 100pc/1000pc. Simplex SC/APC to SC/APC. Zirconia internal split sleeve. with flange. Senko P/N: 222-111-1 (or 222-111-1N*1). AFL Telecommunications P/N: C080810. Lot No.: SC-0901531S11:CZ


Not rated yet

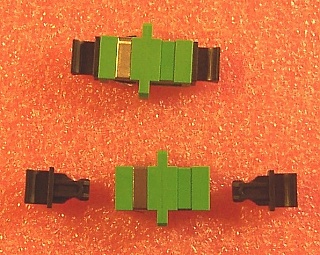

Female to female, green color plastic housing, angled endface. With 2 dust caps. Maker: Senko Advanced Components, Inc., made for AFL Telecommunications. Country of Origin: Taiwan.

See general description of this SC/APC adapter at last page of the 1st pdf link below (full AFL product catalog available upon request). Also see page 11 of last pdf link below for similiar model.

SC/APC connection loss specification of AFL telecommunications systems (see page 5 of 1st pdf link below):
•  Insertion loss: maximum  0.25 dB, typical 0.15 dB
•  Return Loss: maximum  -65 dB, typical -68 dB
•  Durability: 200 cycles
•  Operating Temperature -40°C to + 85°C
•  Storage Temperature -40°C to + 85°C

Mounting method: apply two screws over flange holes and panel holes. We verified key width is narrow.

In stock (1680 items available)
  • US$1.80
Buy more for less:
10-19 items US$1.80 / each
20-39 items US$1.70 / each save 6%
40-74 items US$1.55 / each save 14%
75-99 items US$1.44 / each save 20%
100-199 items US$1.35 / each save 25%
200-399 items US$1.20 / each save 33%
400-599 items US$1.00 / each save 44%
600-799 items US$0.93 / each save 48%
800-999 items US$0.86 / each save 52%
1000 or more items US$0.80 / each save 56%
Minimum purchase quantity: 10 units
Qty:
Add a different product to compare
    CONDITION:

    new in original product pack


  • DIM Weight
    0.0100 kg
  • Store Part No.
    ACC-ADAPTER-088D
  • Manufacturers
    • Manufacturer
      Senko
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
