Newport 8-channel butterfly laser mount fixture, Model 708. For Newport laser controller
Next image
Zoom image

Newport 8-channel butterfly laser mount fixture, Model 708. For Newport laser controller


Not rated yet

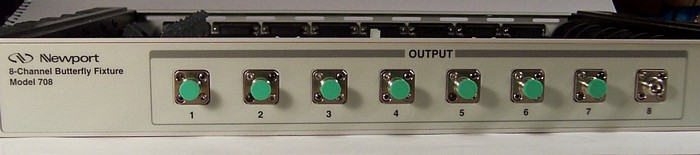

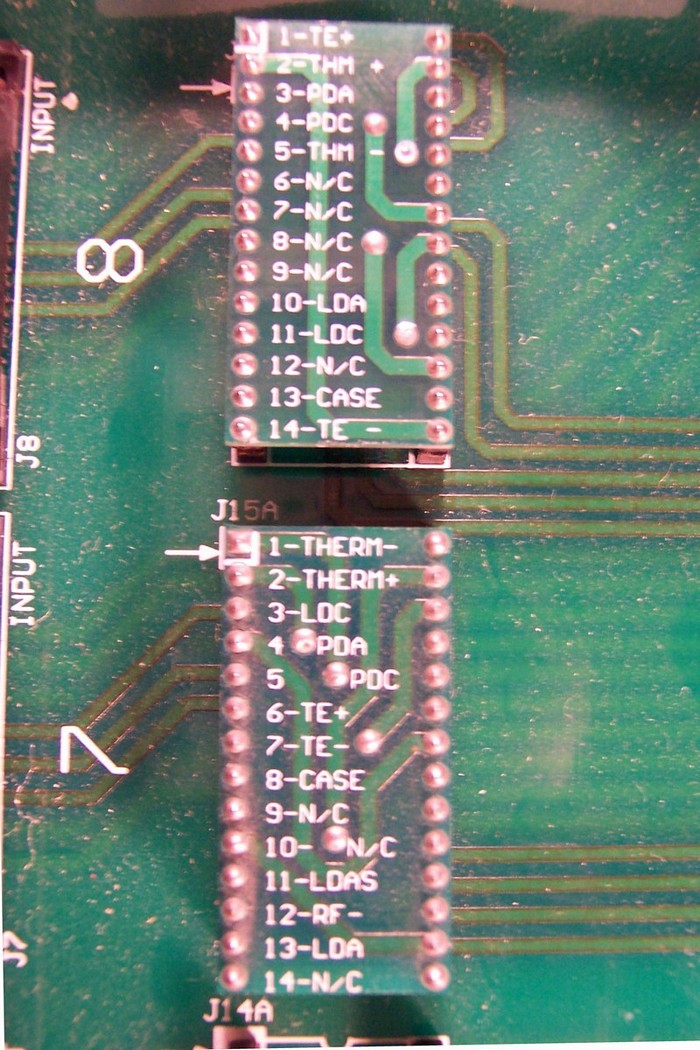

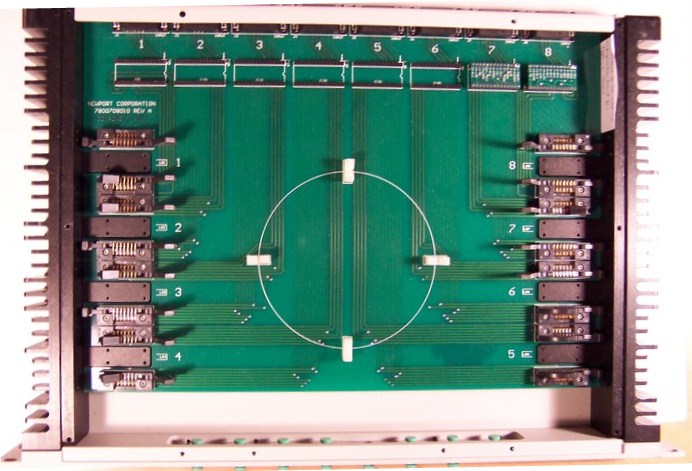

It can test 8 of 14-pin butterfly lasers at same time. With 8 FC/APC adapters on front panel (adapter key width is verified around 2.05mm). It comes with one configuration board 708-CONF-1 (for type-1 laser) and one configuration board 708-CONF-2 (for type-2 laser) , as shown in the 4th photo below, so you can test one type-1 laser and one type-2 laser at the same time. If you need test more lasers at the same time, you can follow these two configuration boards example, easily use prototype board to make more configuration boards.
In stock (Only 2 left in stock)
  • US$999.00
Qty:
Add a different product to compare
    CONDITION:
    Like new. It does not come with cables. You may make it by yourself (We can sell you DB15 male connector and DB15 female connectors, and ribbopn cable for you, at low cost). It is verified working for type-2 and also type-1 14-pin butterfly laser with suitable configuration boards, with Newport 9016 laser controller.

  • DIM Weight
    10.0000 kg
  • Store Part No.
    OTI-LDC-107C
