OC-192 LR Transponder  Circuit pack,   1561.83/1562.23nm dual wavelength outputs. Model: 1002-0706-39 Rev 2.01
Next image
Zoom image

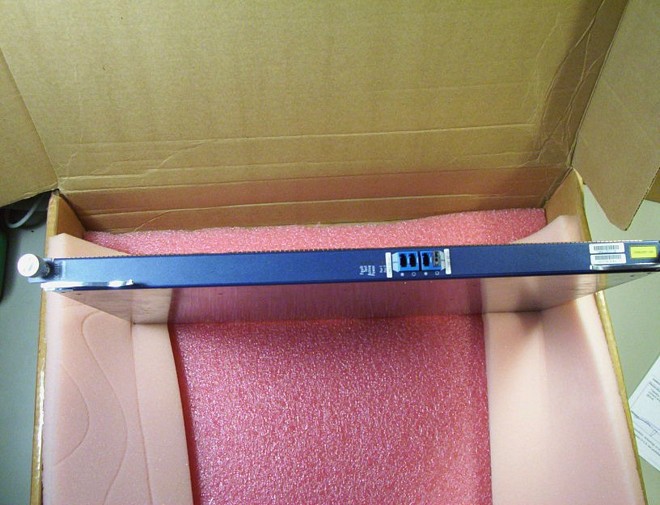

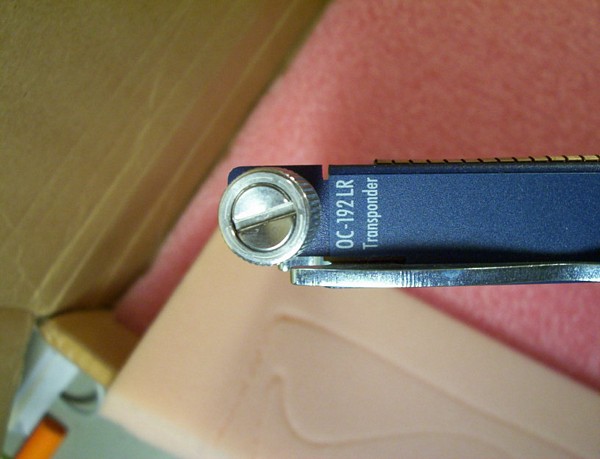

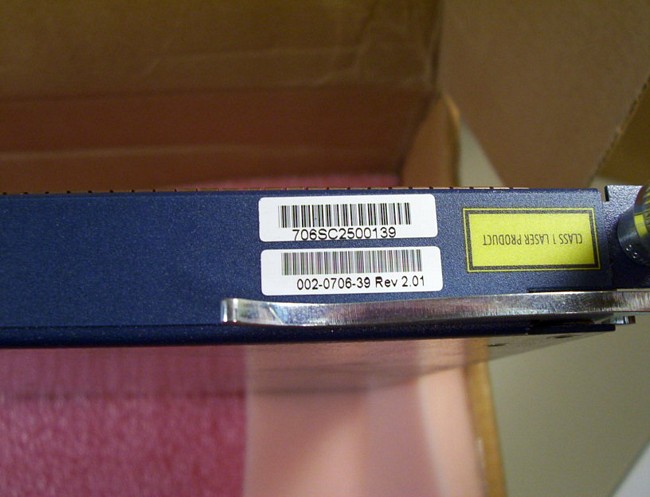

OC-192 LR Transponder Circuit pack, 1561.83/1562.23nm dual wavelength outputs. Model: 1002-0706-39 Rev 2.01


Not rated yet

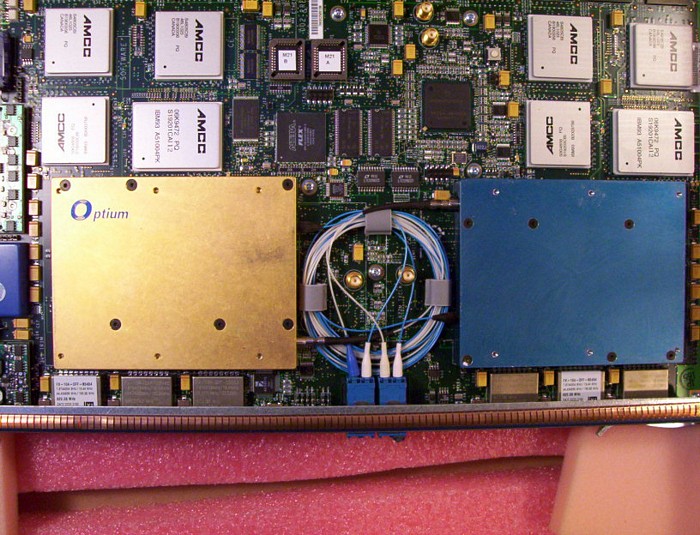

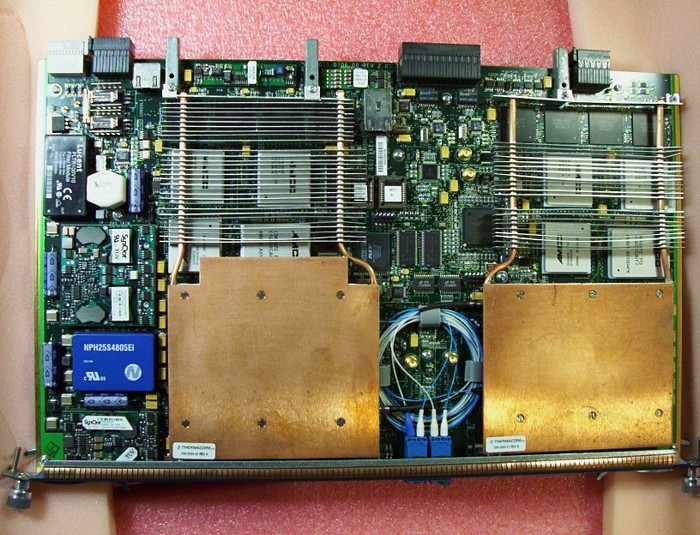

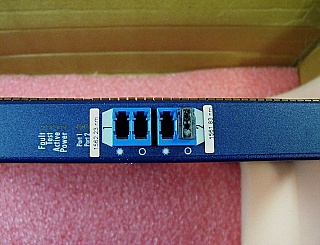

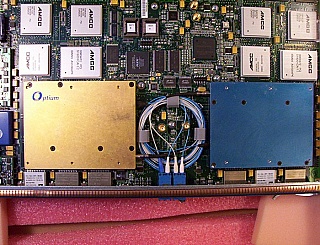

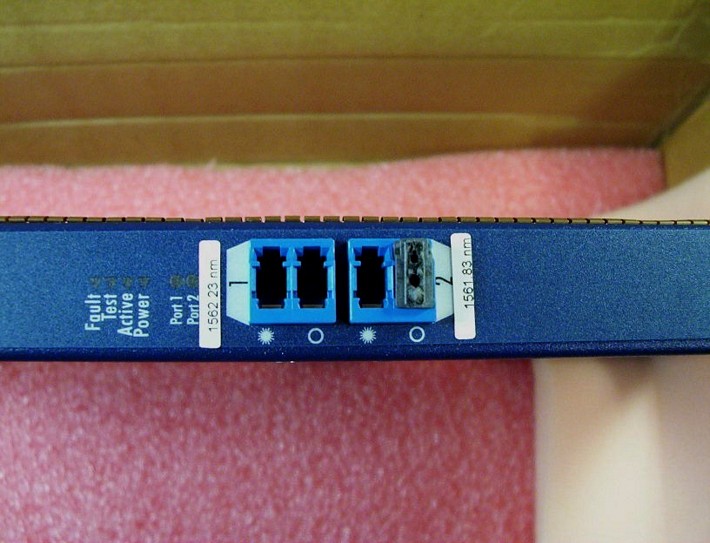

1561.83nm and 1562.23nm dual-output long-reach transponder card. It looks made by Altamar. With two transponder modules, with two laser outputs of 1561.83nm and 1562.23nm.

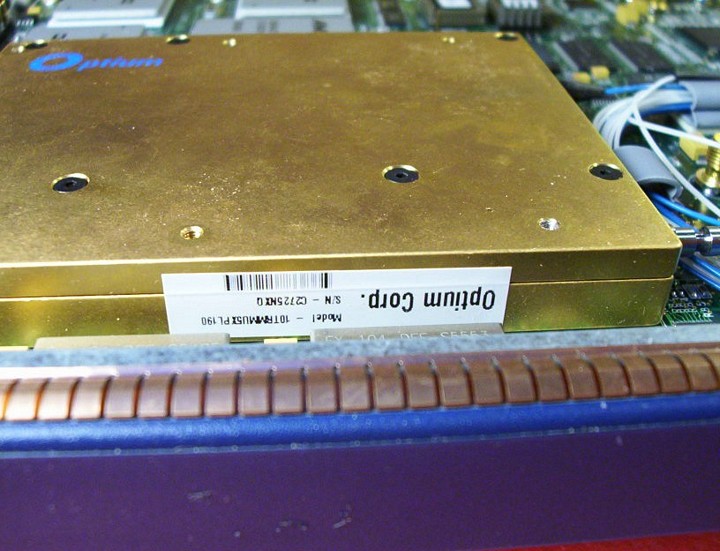

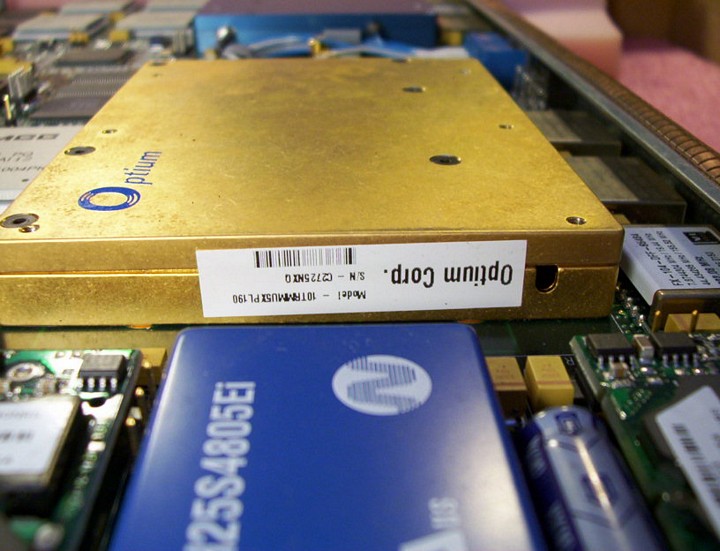

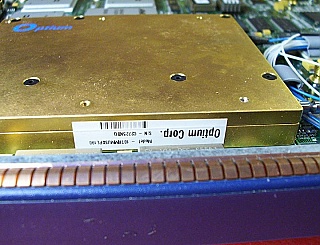

Optium transponder module 1: model: 10TRRMMU5XPL190.

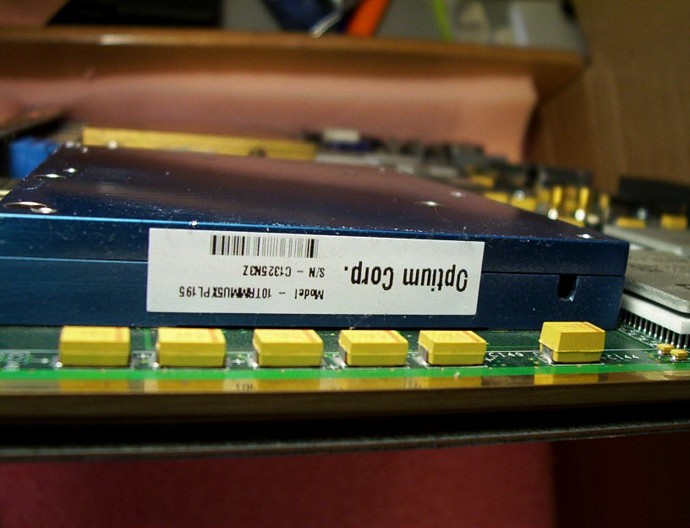

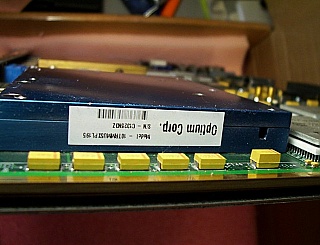

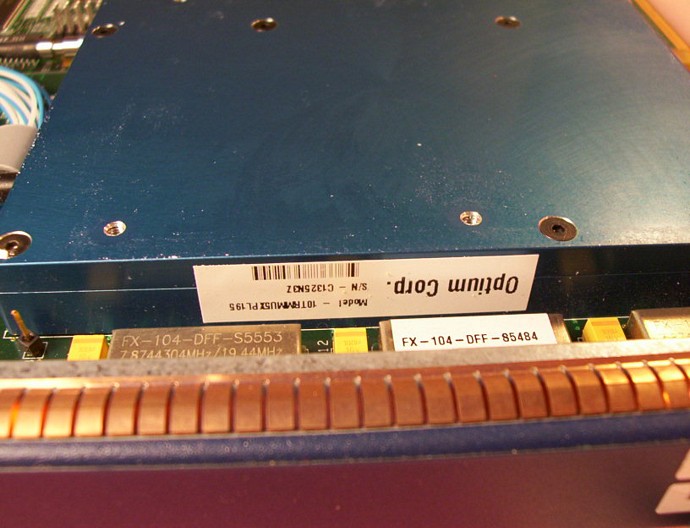

Optium transponder module 2: model: 10TRRMMU5XPL195.
See Optium transponder module datasheet at 1st and 2nd pdf links. It meets MSA pin-out basic definition. Please contact Optium or us for specific pin-out info.

Each Optium transponder module includes following parts

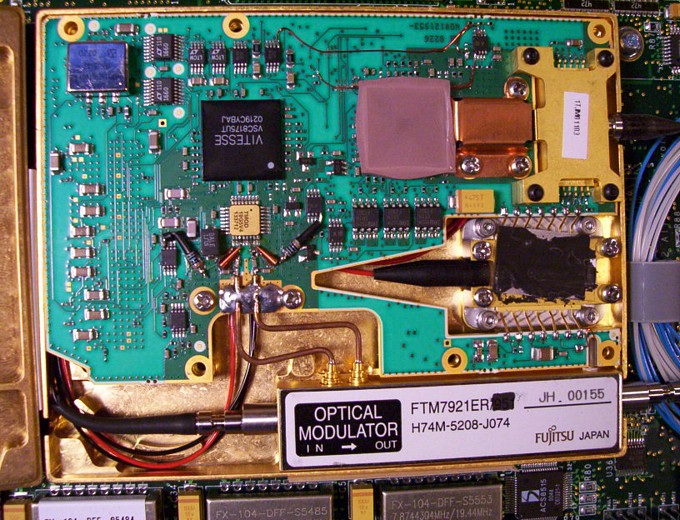

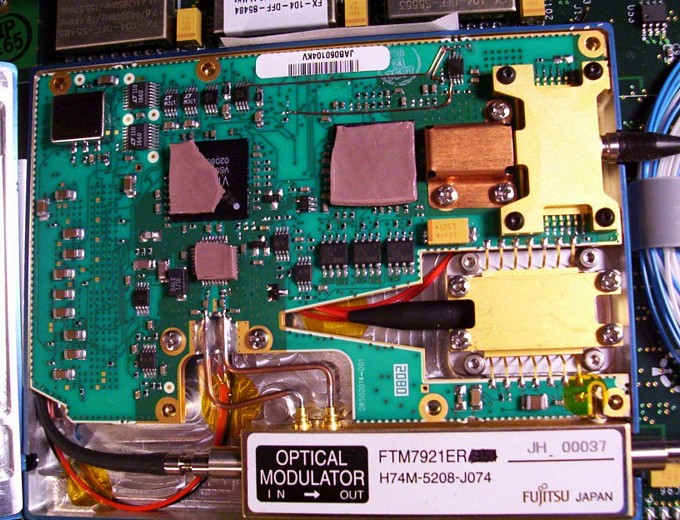

• one 10Gb optic intensity modulator with dual RF drives, Fujitsu model: FTM7921ER (see datasheet at the 3rd pdf link), with LC/PC connector at modulator output, modulator input fiber is either with FC/PC connector or fusion-spliced with laser module output fiber

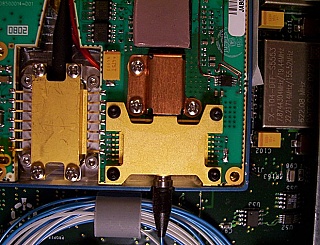

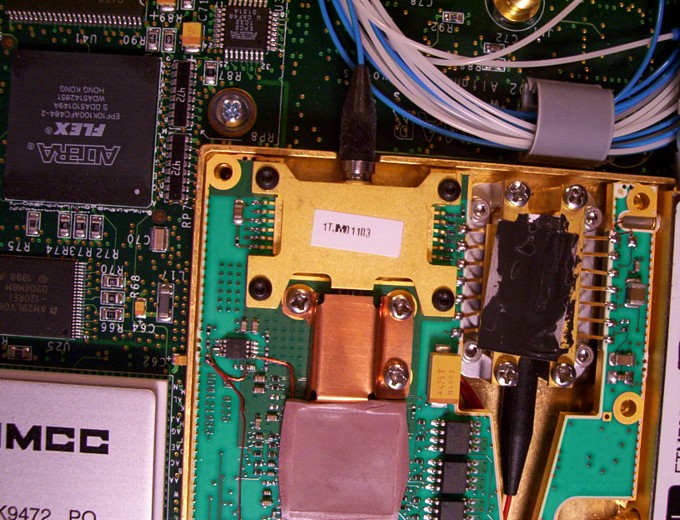

• one standard long-reach DWDM 14-pin PMF laser module (standard long-reach laser should give 20dBm or 10dBm output). The fiber is either with FC/PC PMF connector or fusion-spliced with modulator input fiber.
• one 10Gb optical receiver with LC/PC fiber connector. The pin-out package looks more like APD receiver rather than pin-amp receiver (APD receiver need more pins). So we assume it is APD receiver. The datasheet looks same or similar to last   pdf link (same pin numbers).
• 10Gb modulator diver chip and other electronic parts.

You can buy only one Optium transponder module at half price of whole transponder card. You can remove valuable transponder module or its parts for your project (we may also remove parts for you at service fee).

In stock (Only 1 left in stock)
  • US$1100.00
Qty:
Add a different product to compare
    CONDITION:

    Looks great.


  • DIM Weight
    4.8000 kg
  • Store Part No.
    OMS-OC192-TR-002C
