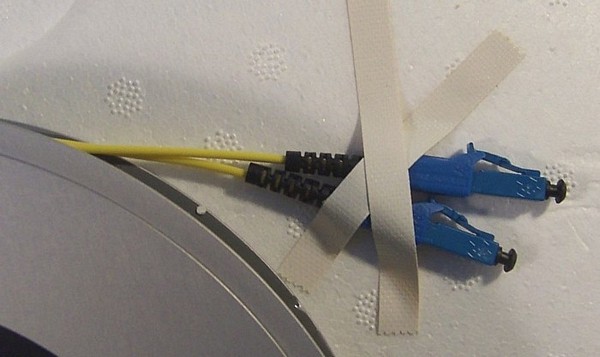

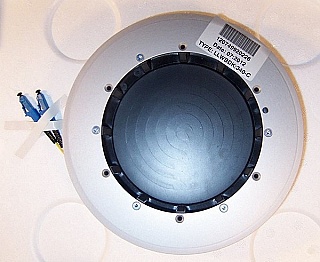

OFS ``low-loss-wide-band`` DCM for 1.55um C-band, dispersion: -340 ps/nm, 100% compensation. OFS/LucentType: LLWBDK:340-C. with 2 LC/PC connectors.
Next image
Zoom image

OFS ``low-loss-wide-band`` DCM for 1.55um C-band, dispersion: -340 ps/nm, 100% compensation. OFS/LucentType: LLWBDK:340-C. with 2 LC/PC connectors.


Not rated yet

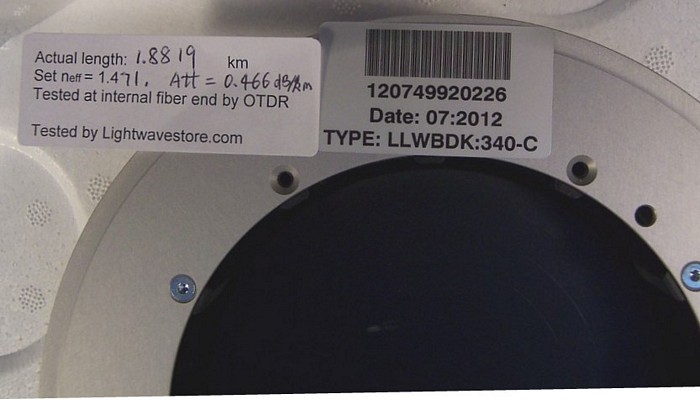

Dispersion compensation for 20km standard SM fiber. The dispersion compensation ratio is 100% with slope compensation, according to the datasheet in the 1st pdf link below. Dispersion at 1550nm: -340 ps/nm. With 1.7mm cables at two fiber ends. We measured one DCM sample approximately, fiber length is 1.8819km (assuming effective refractive index is 1.471), and 0.466dB/km at 1550nm.
In stock (Only 1 left in stock)
  • US$430.00
Qty:
Add a different product to compare
    CONDITION:

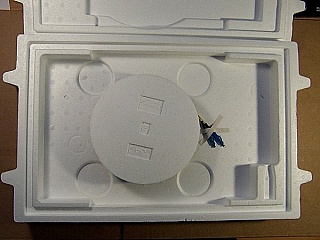

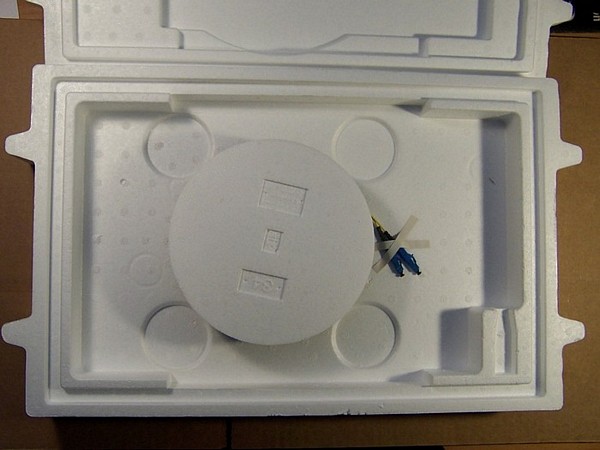

    new in original product pack, without manufacture test data.

  • DIM Weight
    4.5000 kg
  • Store Part No.
    FSC-DCM-014D
  • Manufacturers
    • Manufacturer
      OFS
