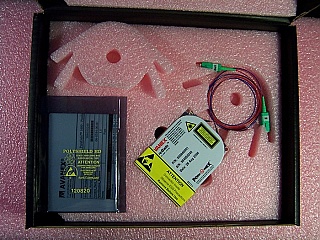

Two 900um fibers with two SC/APC connectors. There is 30-pin electrical connector on the module. Manufacture test data (see last 2 pdf links below) show that it offers flattened 12dBm output power over full C-band, and low noise figure around 4dB. See year-2012 specification at the first pdf link and year-2007 specification at the 2nd pdf link below. We do not have other technical info and we do not have software codes/manual, you need figure out how to use it by yourself.

The PureGain™ PG1600 Optical Amplifier Series combines state-of-the-art electronics, superior optical performance, a feature-rich control language and a compact form factor to create the most flexible low-cost amplifier on the market. The patented digital control system reduces the thermal dissipation, enabling higher system density and lower operating cost. The PureGain™ PG1600 series is available in both narrow-band and broadband models with output power up to 21 dBm.

Features:
• Fully Integrated Control Electronics with Transient Control
• Digital Control System with Adaptive Thermal Management
• Output Power up to 21 dBm
• RS232 or I2C™ Command Interface with Monitoring, Alarms and Safety Shut-Down
• Gain Flattening Filter (Option)
• Small Package (70 x 90 x 15 mm)
• Variants available for Single-Channel, Narrowband, or Broadband Amplification

Applications
• Metro Regional, Long-Haul and Ultra Long-Haul Networks
• Single-Channel or DWDM Networks
• Amplification at optical Add/Drop nodes
• Transmitter and Receiver Amplifications
