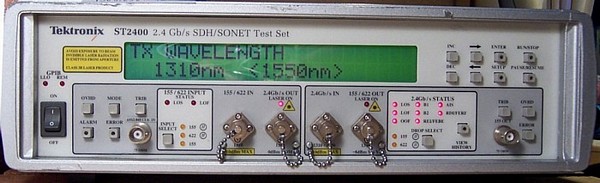

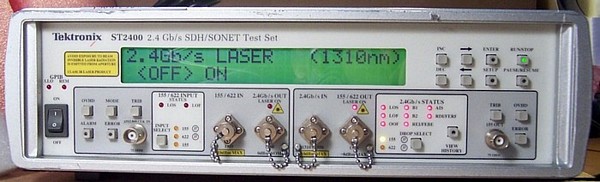

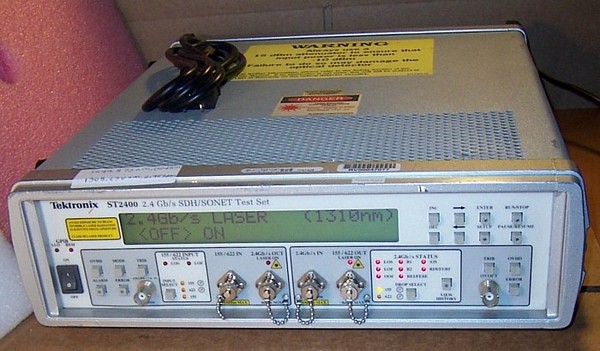

Tektronix ST2400 2.4Gb/s SDH/SONET Test Set. With 2.4Gb transmitter with both 1550nm and 1308nm lasers, with 2.4Gb receiver.
Next image
Zoom image

Tektronix ST2400 2.4Gb/s SDH/SONET Test Set. With 2.4Gb transmitter with both 1550nm and 1308nm lasers, with 2.4Gb receiver.


Not rated yet

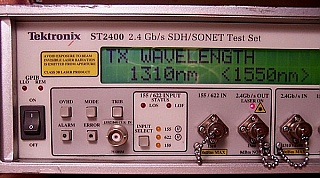

Using HP81525A optical head and HP 86120B wavelength meter, we tested 2.4Gb Tx optical output is 1549.875nm 1.30dBm when enabling 1550nm laser, 1308.250nm 2.489dBm when enabling 1300nm laser. Both 1.55um and 1.3um lasers are single peak at optical spectrum analyzer, so laser type is DFB. With FC/PC optical interface.

User tip:

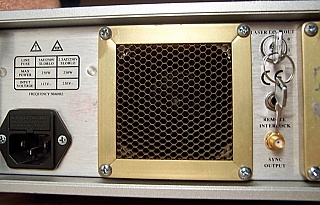

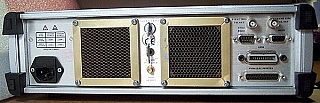

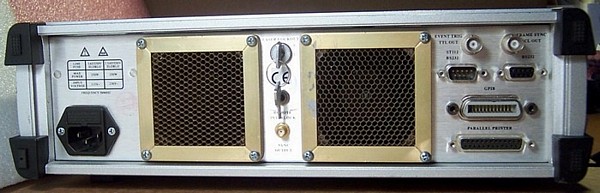

To enable laser, at the top back, turn “laser lockout” key to “1” position.

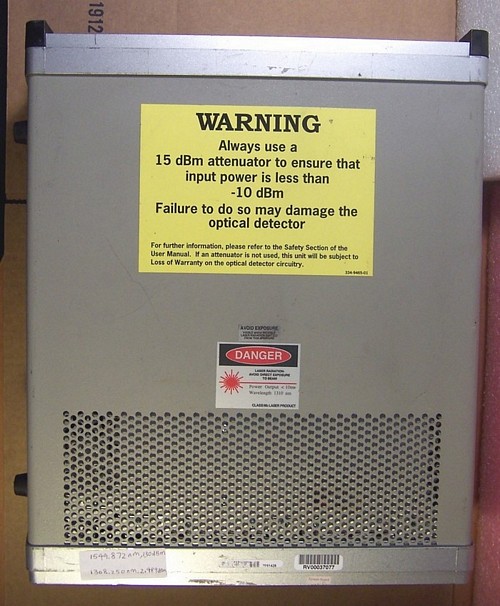

To avoid damage to optical detector, insert 15dB attenuator at optical receiver input port.

See SONET user guide in 2nd pdf link and programming manual in 3rd pdf link. SDH user guide is also available.  The ST2400/ST2400A 2.4 Gb/s SDH/SONET Test Set provides line and section signal generation and analysis for the 2.4 Gb/s SDH STM-16 or SONET OC-48 standards.

The ST2400/ST2400 has the ability to receive, generate and modify an OC-12c or OC-48c signal. The transmitter section can internally generate a 2.4 Gb/s signal or multiplex the higher-rate signal from OC-3 or OC-12 signal inputs. The ST2400 can also accept a OC-48 signal in through mode and regenerate it. The receiver section receives an OC-48 signal, demultiplexes it, and can drop out either the OC-3 or OC-12 signal as required.

In stock (Only 1 left in stock)
  • US$890.00
Qty:
Add a different product to compare
    CONDITION:

    Good cosmetic condition. Both 1.55um and 1.3um lasers at 2.4Gb Tx output are verified good. We are unable to verify further. So we cannot guarantee other than lasing performance. You can return if not satisfied, but two-way shipping cost is not refundable.


  • DIM Weight
    13.0000 kg
  • Store Part No.
    OTI-TELECOM-011C
  • Manufacturers
    • Manufacturer
      Tektronix
