This kit includes one 1x5 mux and one 1x5 demux, for 200GHz DWDM. 4 channel wavelengths: 1531.9nm, 1536.61nm, 1538.19nm, 1539.77nm, 1541.35nm. E-TEK P/N: DWDM2YMANTL27

The whole kit comes with 10 SC/UPC connectors, with Corning 3mm cable. 0.5dB Passband is about 1.05nm, so you can use it for 200GHz DWDM.

You can buy whole kit or only buy one module.

Nortel Mux/Demux Kit P/N: A0727804
Nortel Description: Coupler, UPG, MB/DR

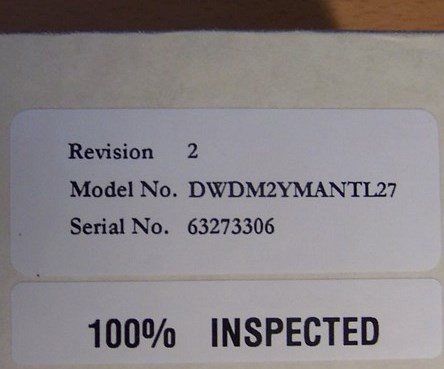

E-TEK Kit P/N: DWDM2YMANTL27

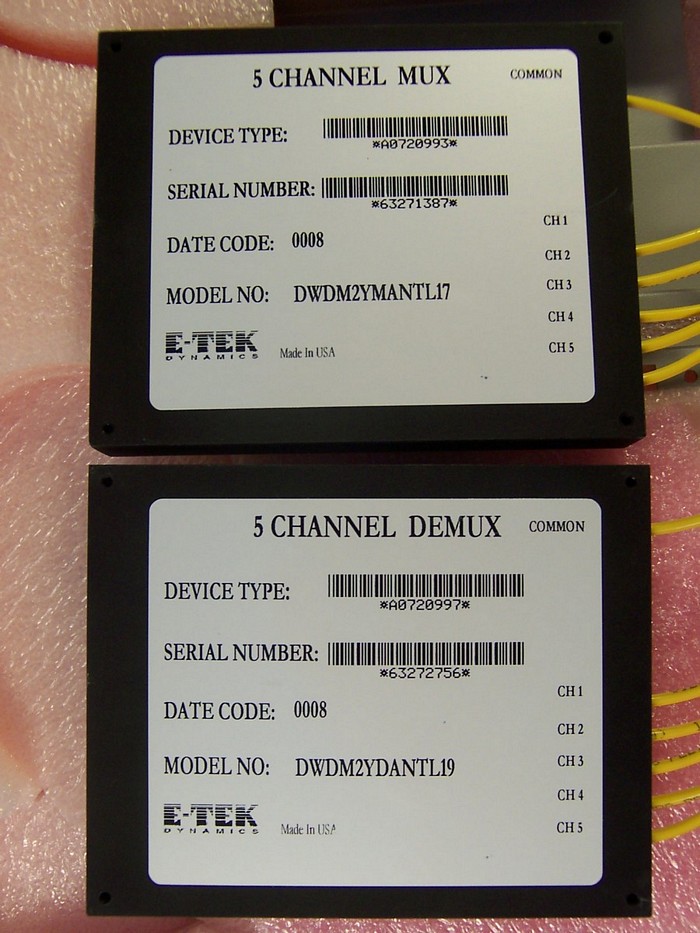

Mux module: With one common port and 5 channel ports
Module 1 (top)
Nortel Part No. : A0720993
E-TEK Part No.: DWDM2YMANTL17

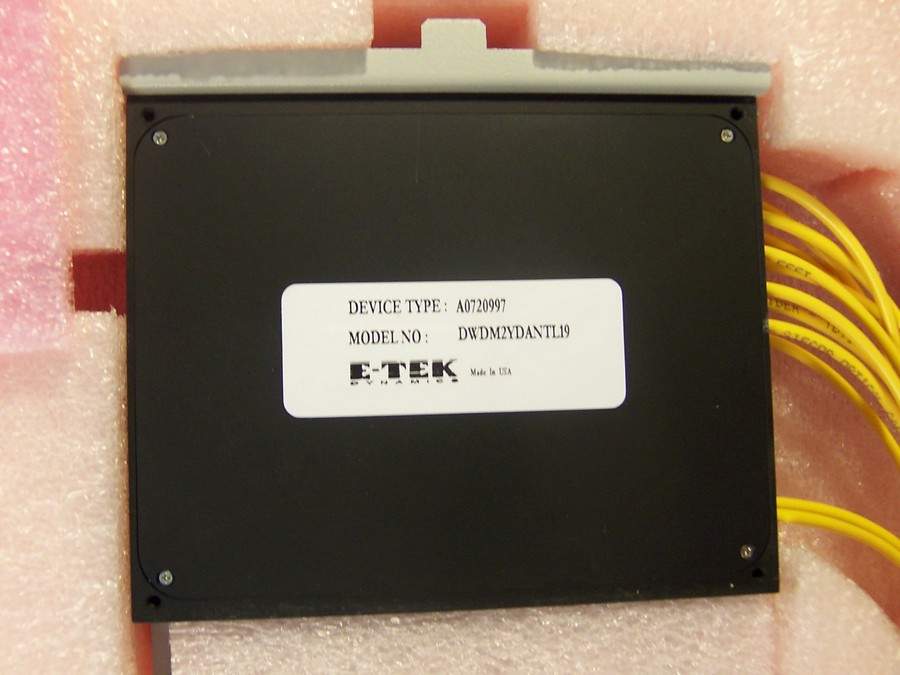

Demux module: With one common port and 5 channel ports
Module 2 (bottom)
Nortel Part No.: A0720997
E-TEK Part No.: DWDM2YDANTL19

Store Part No.	Choose whole kit or individual module (you cannot choose both)	Qty	Price	Buy
FFC-MUX-148DA	Whole kit P/N: DWDM2YMANTL27, with spectrum graph in test data (see sample-1 test data pdf link)	3	US$220.00	+ -
FFC-MUX-148D0	Mux module P/N: DWDM2YMANTL17, with spectrum graph in test data (see sample-1 test data pdf link)	3	US$120.00	+ -
FFC-MUX-148D1	Demux module P/N: DWDM2YDANTL19, with spectrum graph in test data (see sample-1 test data pdf link)	3	US$120.00	+ -
FFC-MUX-148D2	Whole kit P/N: DWDM2YMANTL27, without spectrum graph in test data	1	US$200.00	+ -
FFC-MUX-148D3	Mux module P/N: DWDM2YMANTL17, without spectrum graph in test data	1	US$110.00	+ -
FFC-MUX-148D4	Demux module P/N: DWDM2YDANTL19, without spectrum graph in test data	1	US$110.00	+ -

Manufacturer test data of sample 1 21 kB
Manufacturer test data of sample 2 21 kB
