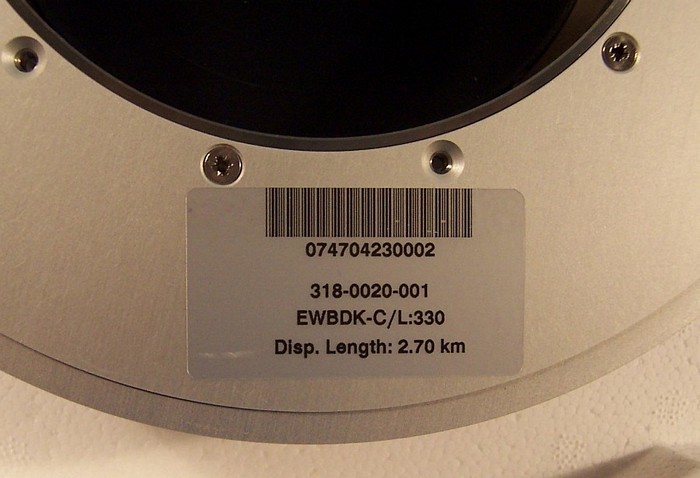

$170 each if you buy 20pc. Min order qty = 4pc. Lucent(OFS) DCM for both C and L-band. Designed as Raman amplifier, also regular DCM. Dispersion: -330 ps/nm around 1570nm, 100% compensation. without fiber connectors. Type: EWBDK-C/L:330.
Next image
Zoom image

$170 each if you buy 20pc. Min order qty = 4pc. Lucent(OFS) DCM for both C and L-band. Designed as Raman amplifier, also regular DCM. Dispersion: -330 ps/nm around 1570nm, 100% compensation. without fiber connectors. Type: EWBDK-C/L:330.


Not rated yet

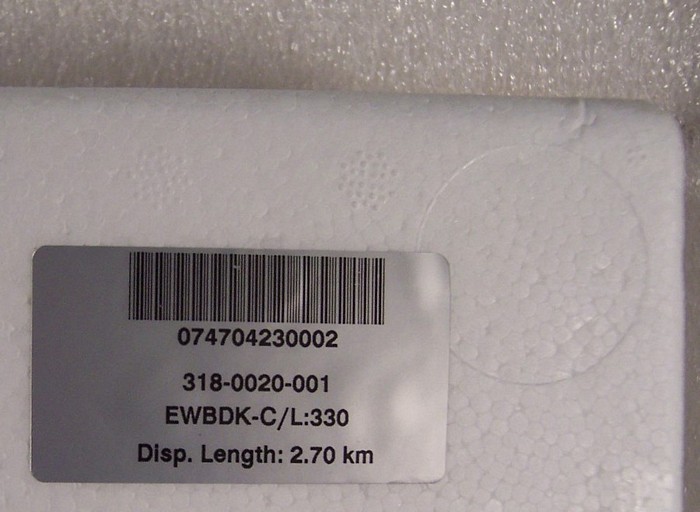

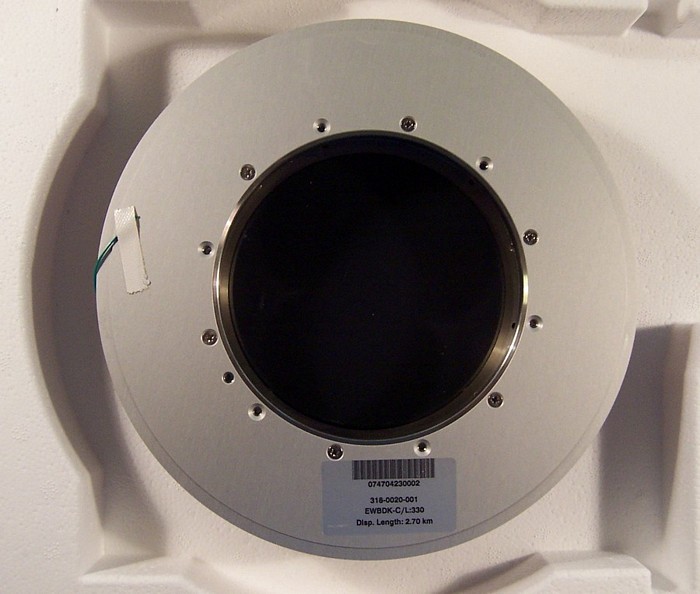

Fiber length: about 2.7km( see exact fiber length data at the manufacture test data at the last pdf link below, for each sample S/N). Dispersion compensation for standard fiber over both C-band and L-band. We believe the dispersion compensation ratio is 100%, according to the datasheet in the 1st pdf link below. Dispersion: -330 ps/nm around 1570nm, see actual test data at last pdf link below.

DCF has much higher Raman gain coefficient than regular SMF. This DCM is designed to use as Raman amplifier. See Raman gain data at last pdf link below. It can be also used as regular DCM.

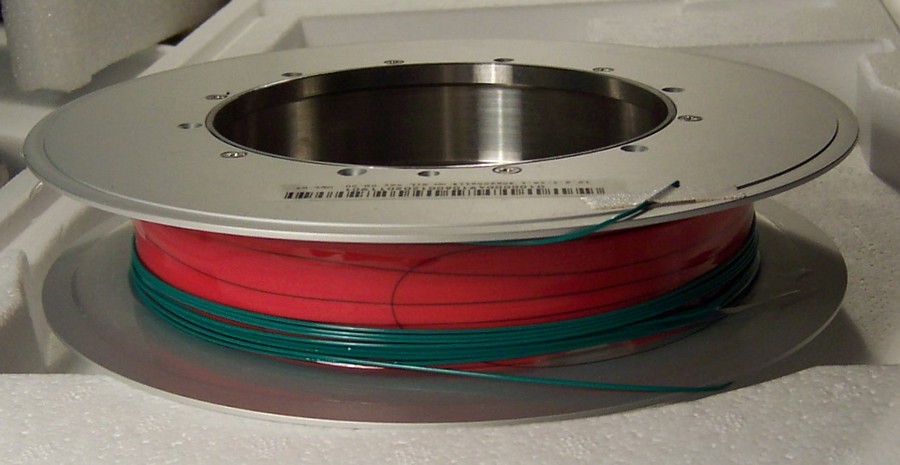

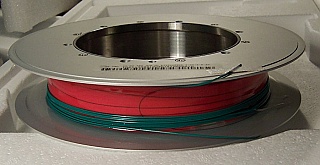

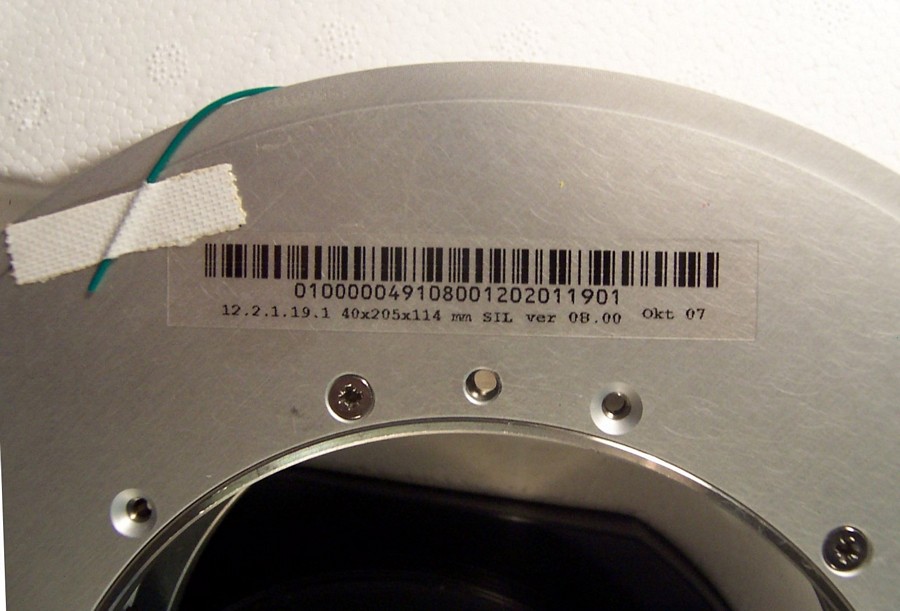

Without fiber connectors.  There is 900um buffer fiber pigtail in green jacket on each end of fiber spool, and there is sleeve-protected fusion splice between 900um buffer fiber pigtail and internal dispersion-compensating fiber (250um-coating bare fiber in red color) on each end of fiber spool. The internal dispersion-compensating fiber roll (with 250um-coating in red) is covered with soft glue. Based on our experience, this glue layer can be easily removed by hand, in case you need use shorter fiber length. Showing from manufacture test data of similar-model DCM which is also designed for Raman amplifier, the green fiber pigtail is SMF, so you can easily fusion-splice this DCM with regular SMF or add fiber connector by standard fusion-splice.

In stock (80 items available)
  • US$220.00
Buy more for less:
4-9 items US$220.00 / each
10-19 items US$190.00 / each save 14%
20-39 items US$170.00 / each save 23%
40 or more items US$160.00 / each save 27%
Minimum purchase quantity: 4 units
Qty:
Add a different product to compare
    CONDITION:

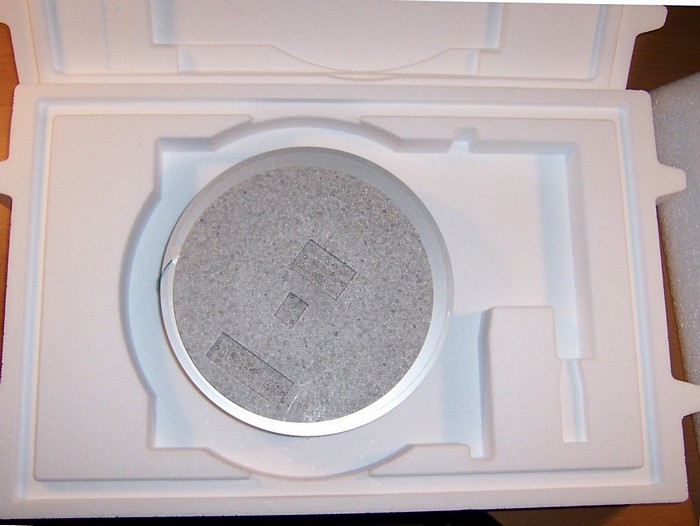

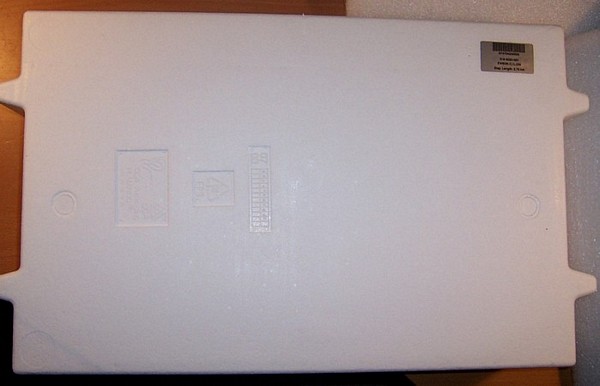

    New or seems new in original product pack. See actual manufacture test data list at last pdf link above(We have 121 samples, this list only contains test data for 55 samples, we will sell samples randomly). If you like to reduce shipping cost, tell us, we can remove original packing.


  • DIM Weight
    4.5000 kg
  • Store Part No.
    FSC-DCM-016I
  • Manufacturers
    • Manufacturer
      OFS
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
