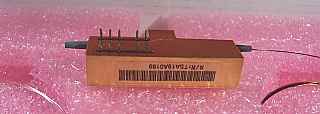

Min order qty=4pc. $45 each if buy 200pc. 1x2 E-Tek Switch module. E-tek Model: CFSW2120S1100.
Next image
Zoom image

Min order qty=4pc. $45 each if buy 200pc. 1x2 E-Tek Switch module. E-tek Model: CFSW2120S1100.


Not rated yet

Manufacturer verified its performance over wavelength 1520-1580nm. 250um SMF-28 bare fibers without connectors. Made in Oct. or Nov. 2000 in Thailand.

This compact fiber-optic switch (CFSW) features a low insertion loss of 0.6 dB and high 5-msec switching speed. By relying on a proprietary design, the switch has a typical ±0.03 dB repeatability for highly reliable switching. It is also ideal for signal-routing or protection-switching applications.

The new design provides reliability over 10M cycles and has passed 500g shock tests. Due to its small size, 42.4 mm x 18.1 mm with a height of 9.5 mm, it can be easily integrated into WDM systems and add-drop modules. In addition, the switch features a PDL of 0.05 dB and repeatability of 0.02 dB. The CFSW is available in 1x1, 1x2 and 2x2 configurations. The packages are environmentally sealed and are suitable for field applications.

In stock (326 items available)
  • US$59.00
Buy more for less:
4-9 items US$59.00 / each
10-19 items US$56.00 / each save 5%
20-49 items US$54.00 / each save 8%
50-99 items US$51.00 / each save 14%
100-199 items US$48.00 / each save 19%
200 or more items US$45.00 / each save 24%
Minimum purchase quantity: 4 units
Qty:
Add a different product to compare
    CONDITION:

    New in original product case, with actual test data (see pdf links above from 4 samples). Almost all samples are in manufacture sealed package.


  • DIM Weight
    0.5000 kg
  • Store Part No.
    OFC-SW-022F
  • Manufacturers
    • Manufacturer
      E-tek
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
