$185 each if buy 4pc, 10Gb OKI PIN-TIA receiver, with SC/PC connector. OKI model: OD9245N. Lower price for larger qty.
Next image
Zoom image

$185 each if buy 4pc, 10Gb OKI PIN-TIA receiver, with SC/PC connector. OKI model: OD9245N. Lower price for larger qty.


Not rated yet

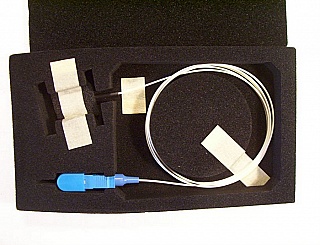

900um buffer fiber with SC/PC connector.

$185 each if buy 4pc. Lower price is available for larger qty.

DESCRIPTION
The OD9245N is the 10Gbps receiver module which incorporates a high speed pin-photodiode and a High Gain trans-impedance amplifier (TIA). This receiver is specifically designed for OC-192 SONET/SDH STM-64,DWDM and 10-Gbps Ethernet applications. The outline is based on the MSA that defines small footprint coplanar OC-192 receivers.

FEATURES
High Data Rate Capability up to 10.7Gb/s.
High Responsivity InGaAs PIN-photodiode.
+3.3V TIA and +5V PD Supply.
Small Footprint Coplanar Output.

In stock (29 items available)
  • US$225.00
Buy more for less:
1-3 items US$225.00 / each
4-29 items US$185.00 / each save 18%
30 or more items US$145.00 / each save 36%
Qty:
Add a different product to compare
    CONDITION:

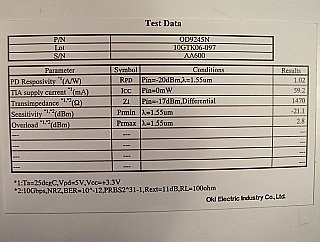

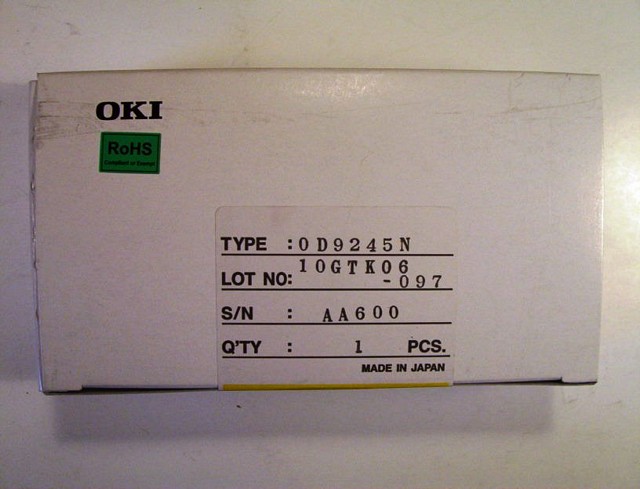

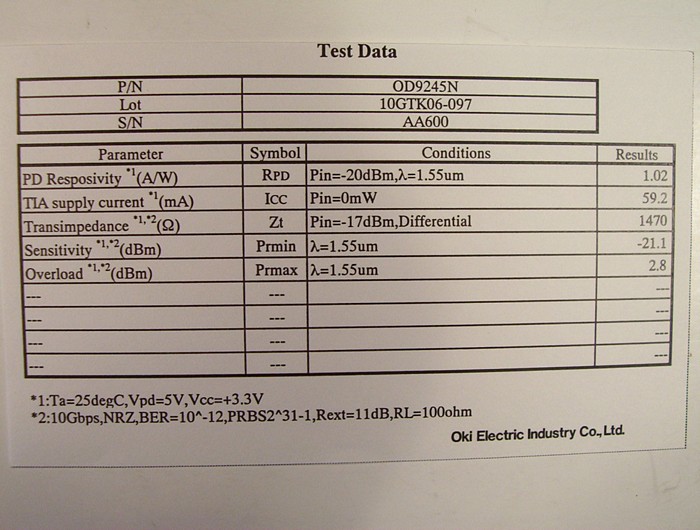

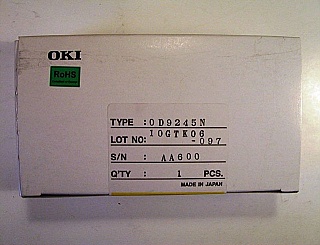

    new in original product pack. With test sheet


  • DIM Weight
    0.1900 kg
  • Store Part No.
    ODC-Rx-10Gb-012C
  • Manufacturers
    • Manufacturer
      OKI
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)
