$25 each if buy 5pc. Lucent 1319W APD receiver module, 1.3/1.55um


Not rated yet
with 1.9mm-cable SM fiber LC/PC connector. With simple test sheet. A sample test sheet shows VG=53.5V, Response = 13.1 A/W. Comparing with the test sheet of known model 1319MS in our online store, VG seems APD reference voltage (But the VG value looks like APD breakdown voltage). It should be 2.5Gb receiver, since there is RF SMA connector in 10Gb receiver (see the 3rd pdf datasheet for 1319T 10Gb receiver). It seems 1319W is same as 1319MR except that the fiber connector is LC/PC.
In stock (38 items available)
  • US$29.00
Buy more for less:
1-4 items US$29.00 / each
5 or more items US$25.00 / each save 14%
Qty:
Add a different product to compare
    CONDITION:

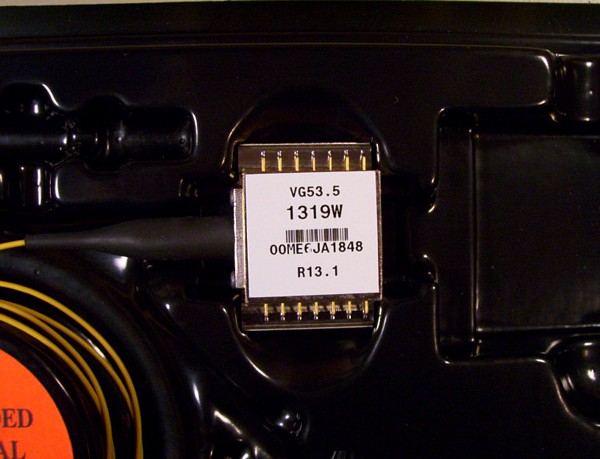

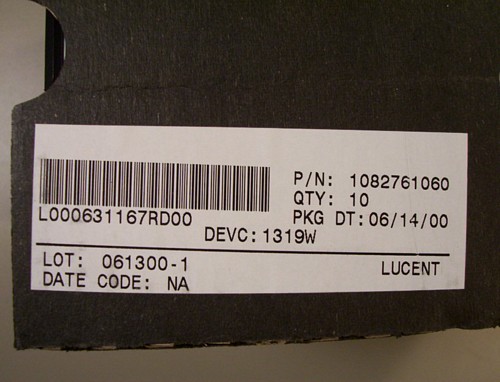

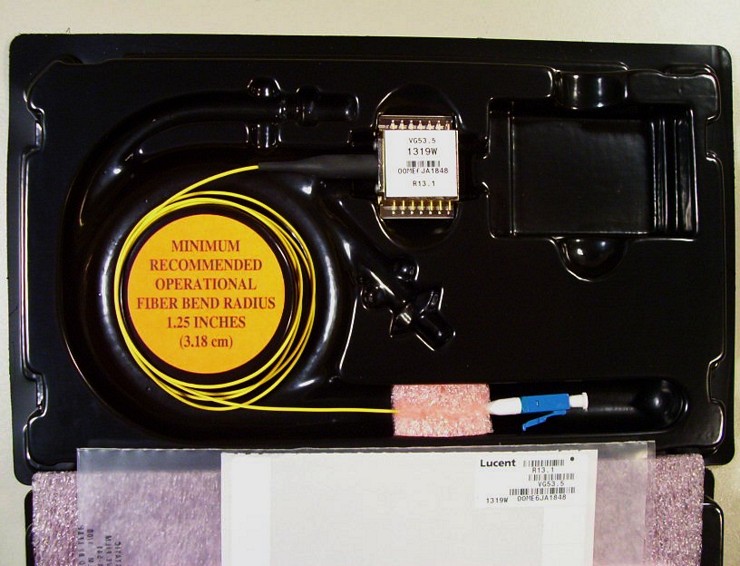

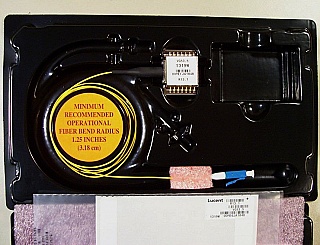

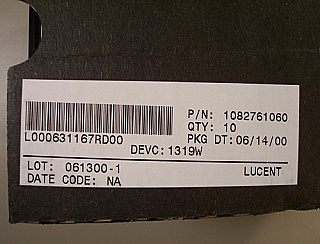

    new in original package with individual simple manufacture test data. The test data on paper inside package is just two parameters, is same as the data marked on the module case, see 2nd and 3rd photos below. made in 2000

  • DIM Weight
    0.5000 kg
  • Store Part No.
    ODC-Rx-APD-009D
  • Manufacturers
    • Manufacturer
      Lucent
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
