DCMLEAF700 for LEAF fiber in L-band by Corning, -700ps/nm. 100% dispersion slope compensation
Next image
Zoom image

DCMLEAF700 for LEAF fiber in L-band by Corning, -700ps/nm. 100% dispersion slope compensation


Not rated yet

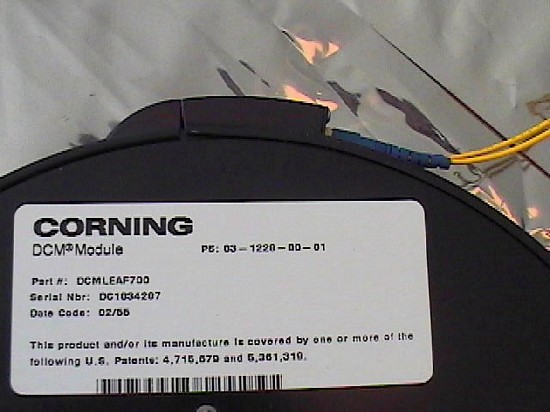

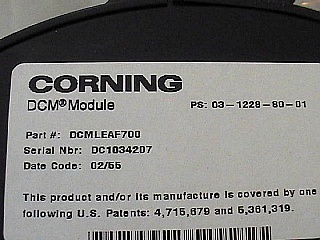

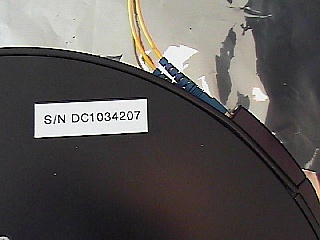

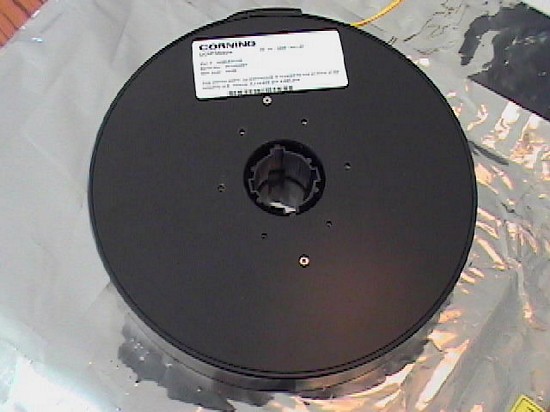

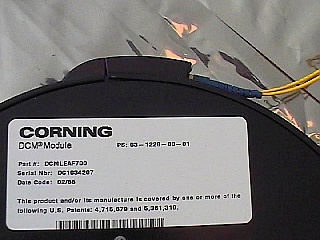

DCMLEAF700. With LC/PC connectors. Designed for ultra long-haul L-band DWDM optical transmission system. -700ps/nm. 100% dispersion slope compensation. Removed from unused DCMA cards.

Corning sold its DCM group to Avanex around 2003.  See datasheet in 1st pdf link with almost same model number. The 2nd pdf link is for very old model only. The 3rd pdf link is for C-band model, as reference to compare our L-band model.

Predicting based on the dispersion slope in datasheet, this L-band DCM should also show negative dispersion in C-band. So you should also use this L-band DCM wih lower negative dispersion over C-band, though dispersion slope is not be compensated.

The DCMLEAF580, DCMLEAF700 and other OC-192 cards (listed at https://www.lightwavestore.com/optic-modules-subsystems/oc-192-cards-boards-with-optical-modules/ )  were installed within same OC-192 DWDM ultral long haul transmission terminal systems and acquired from bankrupted company: Innovance Networks, Inc.  This company only developed and made products for ultra long haul L-band DWDM systems.

In stock (Only 8 left in stock)
  • US$860.00
Qty:
Add a different product to compare
    CONDITION:

    new, removed from unused DCMA cards


  • DIM Weight
    3.6000 kg
  • Store Part No.
    FSC-DCM-041
  • Manufacturers
    • Manufacturer
      Corning
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
