>40GHz bias tee. Picosecond Pulse Labs model: 5542-202

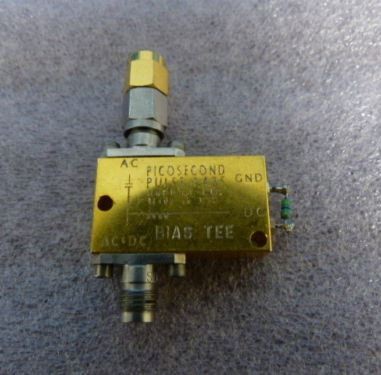

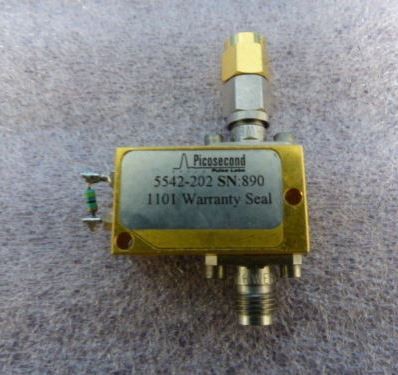

10KHz to > 50GHz Bias Tee. 2 RF connectors are female 2.4mm-type. The bias port is solder-pin type. See pdf link below for specification. It comes with 2.4mm male-male adapter, see top of 2 photos below. Model 5542-202 : 2.4 mm jacks (f) on AC & AC+DC, solder pin on DC. 7 ps Risetime General description The Model 5542 is an ultra-broadband, coaxial bias insertion tee and DC blocking capacitor that passes ultra-fast pulses with very low waveform distortion. Its risetime is only 7 ps, and its frequency response is flat over many decades from 10 kHz to beyond 50 GHz. It is available with either 2.92 mm (40 GHz) or 2.4 mm (50 GHz) connectors. Both 16 Volt and 100 Volt blocking voltage options are available. Its small package makes this bias tee ideal for 40 Gbit data systems as well as broadband RF and microwave applications.

PDF datasheet 21.2 kB

Manufacturers
- Manufacturer
  Picosecond
