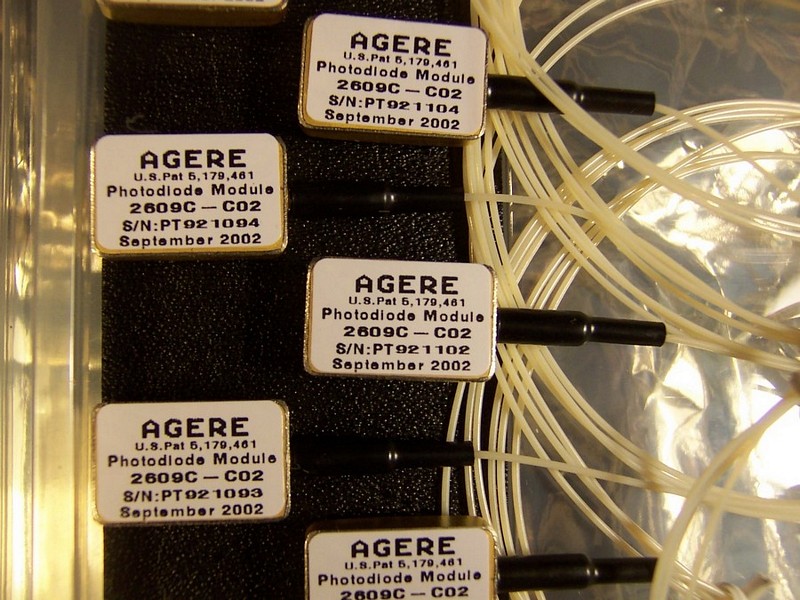

$42 each if buy 30pc. 1.3/1.55um broadband fiber PHOTODIODE Receiver module, 1GHz flat response. 6-dB internal current gain. Agere model: 2609C-C02. With test data

With 900um-buffered single-mode fiber, with SC/APC fiber connector. 14-pin DIL package. Internal current gain: 6 dB (typ.). 75 OHM impedance-matched. The 2609C is a packaged impedance-matched photodiode module with internal gain designed for use in optical broadband receivers in fiber-optic networks. The patented impedance-match technology results in improved gain-bandwidth product compared to external circuits due to control of parasitics between the photodiode and the impedance-matching circuit. Features 1 GHz flat response, +/-0.5 dB High responsivity: 0.85 A/W at 1310 nm 0.95 A/W at 1550 nm Internal current gain, 6 dB (typ.) 75 ??impedance-matched Applications Extended bandwidth, broadband CATV receivers

1-9 items	US$55.80 / each
10-29 items	US$49.00 / each	save 12%
30 or more items	US$42.00 / each	save 25%

PDF datasheet 19.8 kB
Manufacturer test data of sample 1 19.8 kB

Manufacturers
- Manufacturer
  Agere
