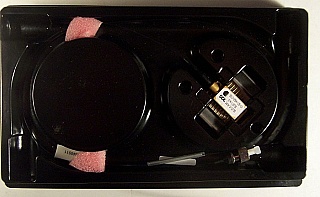

0.98um >125mW kink-free pump laser without FBG stabilizer. JDSU(SDL) product code: SDLO-2564-125-CN.

115mW output operating power. Original 250um bare fiber is only 26cm long, so we fusion-spliced with equivalent fiber : FLEXCORE CS980 fiber (see Store Product Code: FPC-SMJUMPER-GC-002K) with FC/UPC fiber connector. Splice loss is 0.02dB.The JDS Uniphase 2500 Series 980 nm pump module is currently deployed in many of today’s DWDM systems and CATV distribution systems. This module has proven reliability with Telcordia GR-468-CORE qualification and more than 100 million field deployed hours of operation.The 2500 Series pump module uses fiber Bragg grating stabilization to “lock” the emission wavelength and provides a noise-free narrow band spectrum even under changes in temperature, drive current and optical feedback.Key Features• High kink-free powers to 170 mW• Fiber Bragg grating stabilized• Wavelength selection available• Superior tracking error and tracking ratio• Integrated TEC and thermistorApplications• DWDM EDFAs• High bit rate, high channel count EDFAs• CATV distribution

CONDITION:

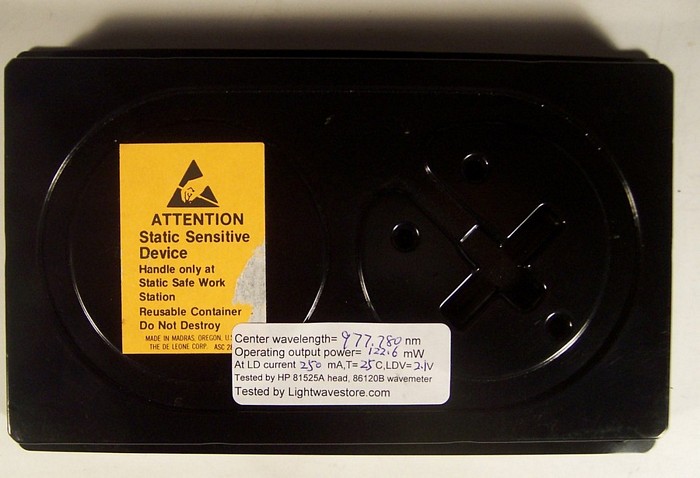

Unsued in original product case. Original 250um bare fiber is only 26cm long, so we fusion-spliced with equivalent fiber : FLEXCORE CS980 fiber (see Store Product Code: FPC-SMJUMPER-GC-002K) with FC/UPC fiber connector. Splice loss is 0.02dB. Without FBG stablizer on the fiber. Without manufacturer test sheet. Verified good at our lab, see our rest result at the label of 2nd photo below .

DIM Weight

0.3500 kg

Store Part No.

OSC-PUMP-980-021I

PDF datasheet 19.1 kB
PDF user guide 19.1 kB
