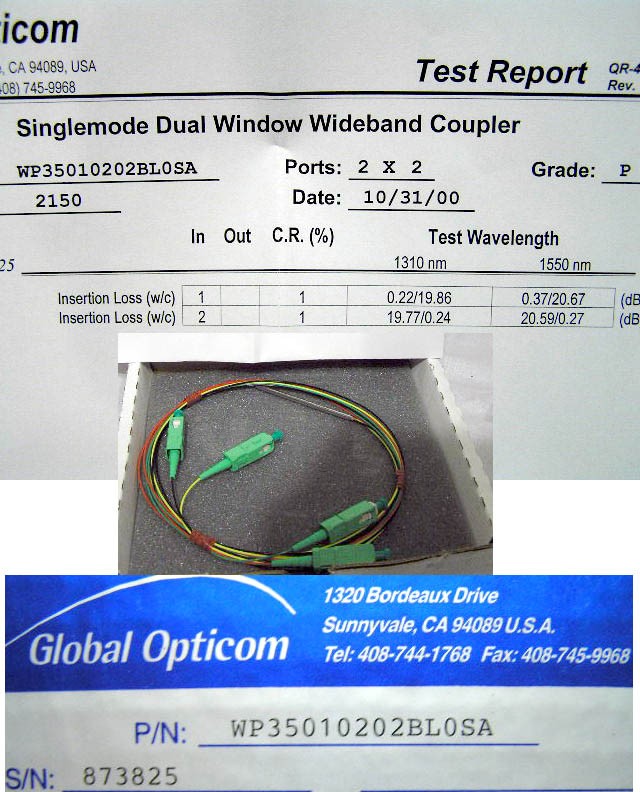

1% 2x2 coupler 1.55/1.3um, SC/APC connectors.
Next image
Zoom image

1% 2x2 coupler 1.55/1.3um, SC/APC connectors.


Not rated yet

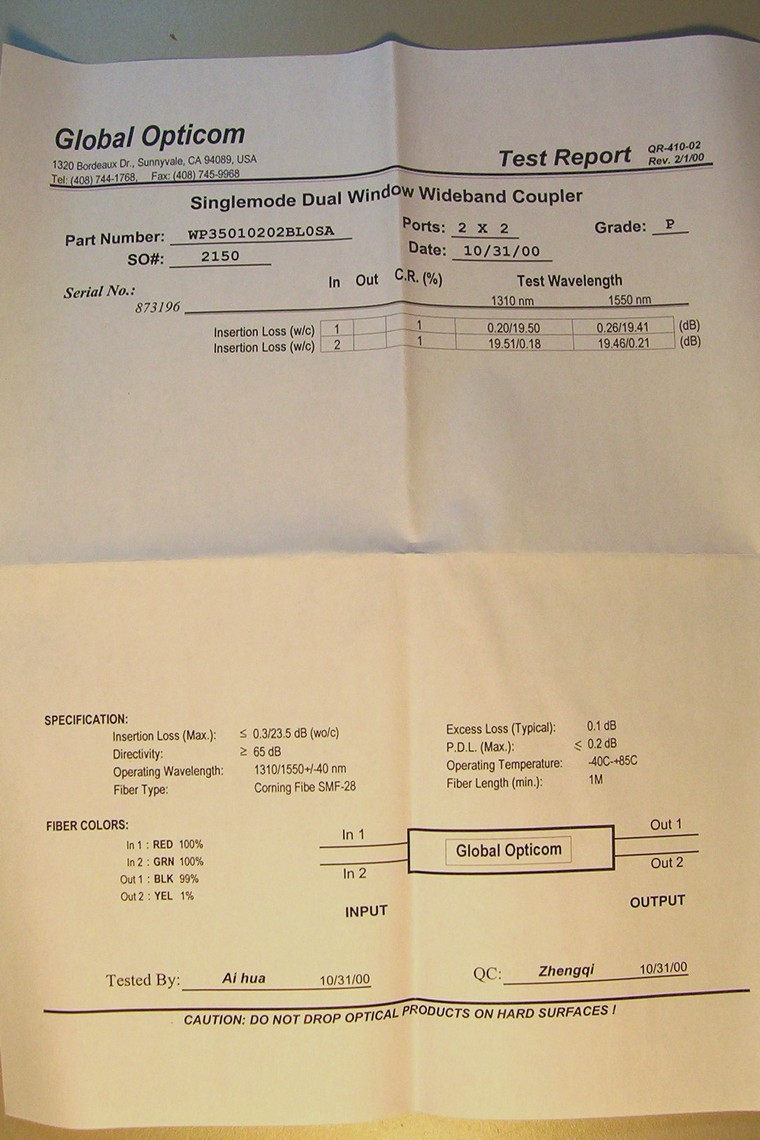

Global Opticom Singlemode Dual-Window Wideband Coupler
P grade. 900um-buffer SMF pigtails. With test sheet each. Insertion Loss (Max): <.3/23.5 dB (wo/c)
Directivity: >65 dB
Operating Wavelength: 13010/1150+- 40nm
Fiber Type: Corning Fibre SMF-28
Excess Loss (typical): .1dB
P.D.L. (Max.): <.2dB
Operating Temperature: -40C-+85C
Fiber Length (min.) 1M

FIBER COLORS
In 1: Red 100%
In 2: GRN 100%
Out1: BLK 99%
Out 2: YEL 1%

In stock (17 items available)
  • US$65.00
Qty:
Add a different product to compare
    CONDITION:

    new in box


  • DIM Weight
    0.3500 kg
  • Store Part No.
    OFC-CPM2x2-001C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Global Opticom
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
