1.55um 2.5Gb/s optical digital intensity modulator, JDS P/N: 10022591
Next image
Zoom image

1.55um 2.5Gb/s optical digital intensity modulator, JDS P/N: 10022591


Not rated yet

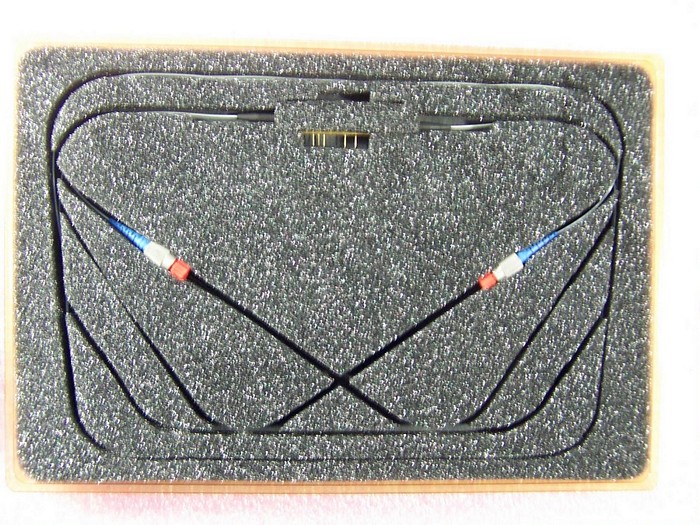

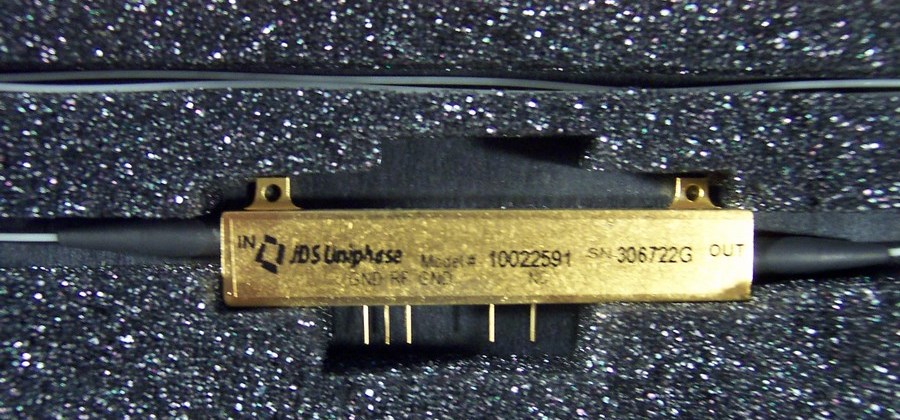

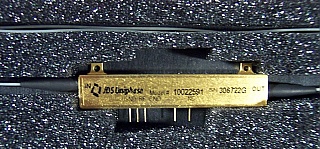

Square copper billet is 46.2mm long, 11mm wide(excluding 2 screw hole sections),8mm high. With 2 FC/PC fiber connectors. The 1st pdf link below for similar model is for reference only. We do not have exact specification for this model.

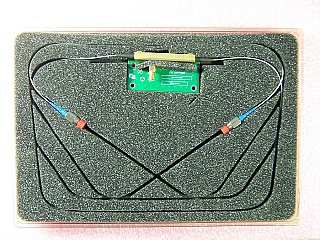

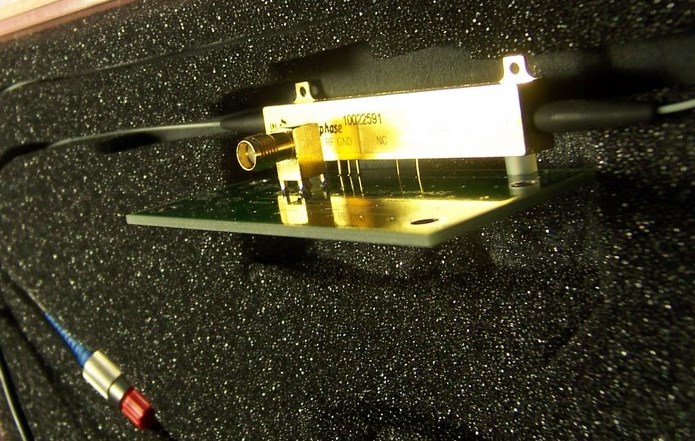

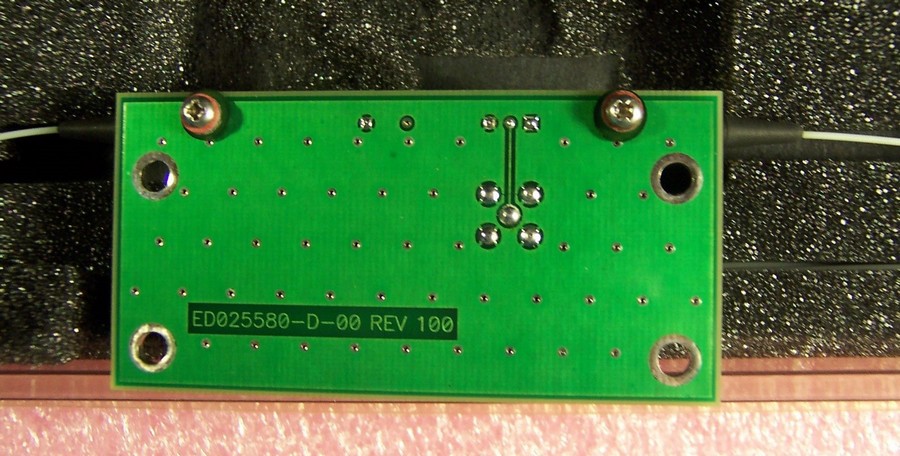

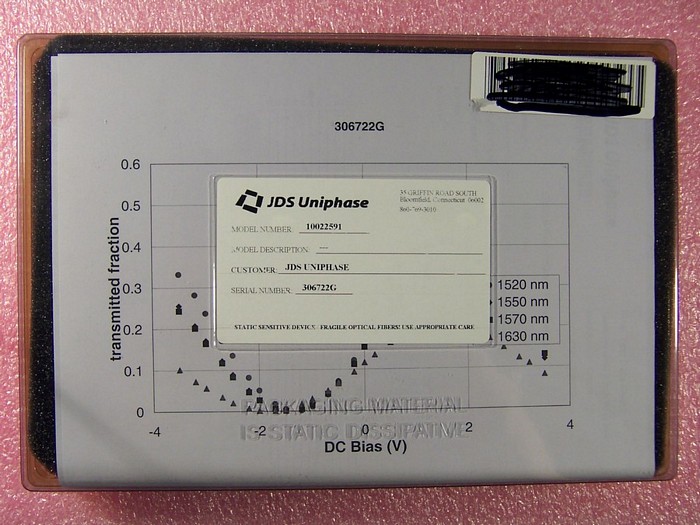

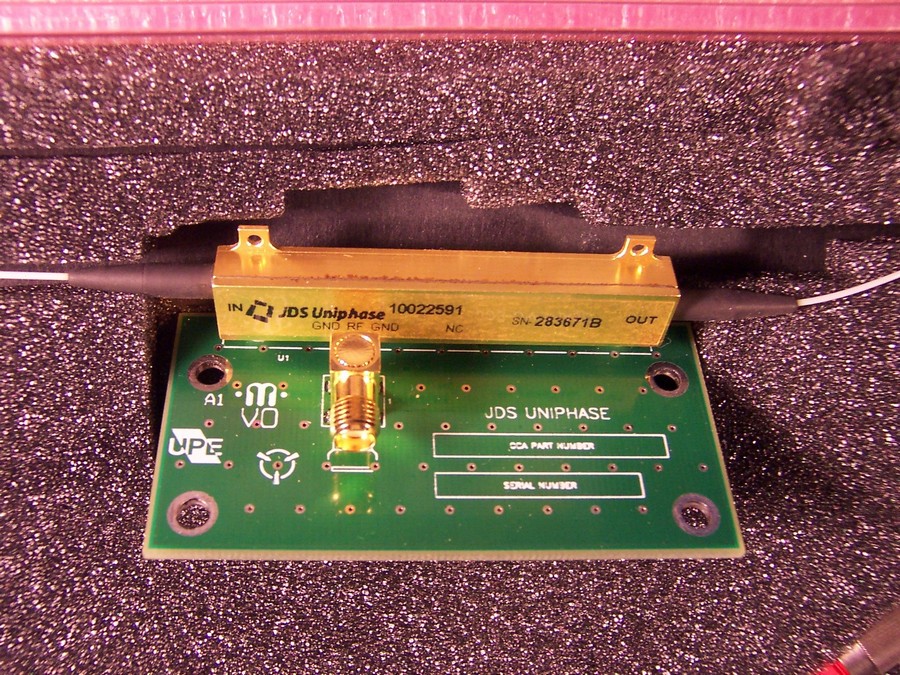

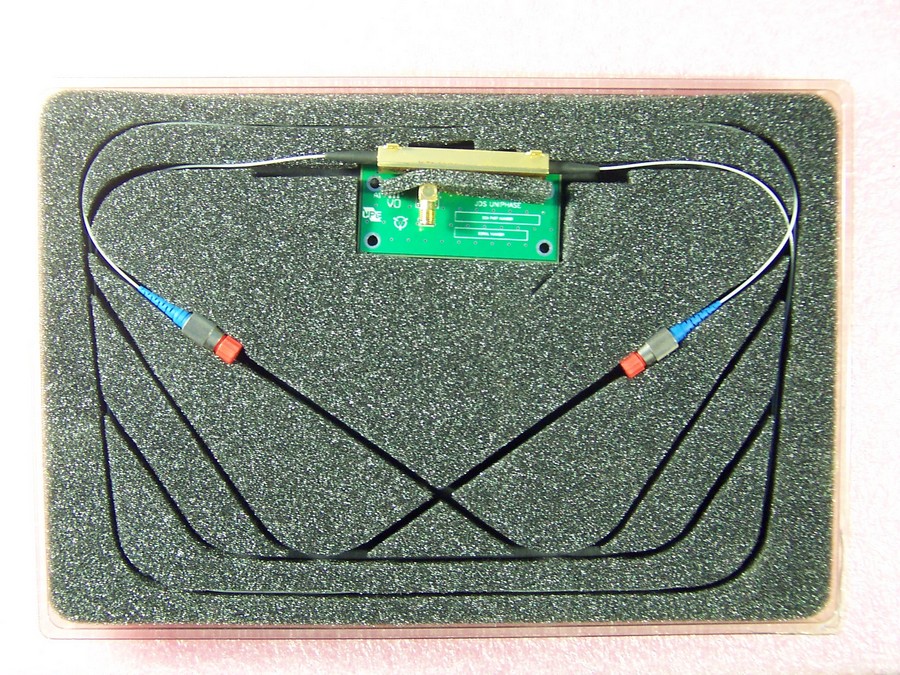

Only 1pc is mounted on PCB, see 1st 5 photos and see its test data at 2nd pdf link below. The two electrical pins under "NC" have no function, they connect to nowhere on sample PCB. Some sample come with 2-page manufacture test data (see last 5 pdf links), some samples have only one page test data (only 2nd page of last 5 pdf links), and one sample have no test data.

Store Part No. Choose product Qty Price Buy
OSC-MOD-10Gb-302C0 Modulator module is mounted on PCB, with 2-page test data at 2nd pdf link above, see 1st 5 photos. 0 US$210.00 Out of stock
OSC-MOD-10Gb-302C1 Modulator module without PCB, with 2-page test data at last 4 pdf links above, see last 4 photos 0 US$140.00 Out of stock
OSC-MOD-10Gb-302C2 Modulator module without PCB, with only one page test data (only 2nd page of last 5 pdf links) 4 US$120.00 + -
OSC-MOD-10Gb-302C3 Modulator module without PCB, without test data 1 US$100.00 + -
Add a different product to compare
    CONDITION:

    unused in original product pack. "Sell As Is". Two-way shipping fee is not refundable if your return them.
