1.55um 20mW DFB Laser module. Tunable over 8 ITU-T grid channels (2.8nm). To be removed from unused systems. Fujitsu P/N: FLD5F15CA002W9xx
Next image
Zoom image

1.55um 20mW DFB Laser module. Tunable over 8 ITU-T grid channels (2.8nm). To be removed from unused systems. Fujitsu P/N: FLD5F15CA002W9xx


Not rated yet

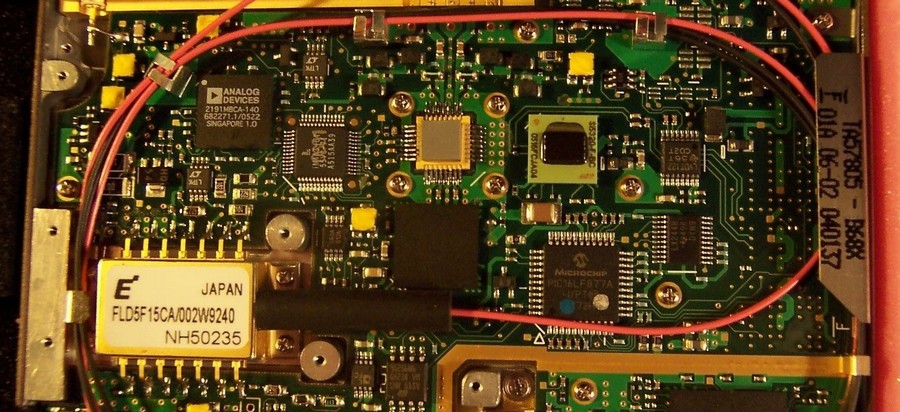

Laser module is inside of unused 10Gb transponder subsystem of Store Product CODE OMS-TRx-1550-026E (see last 3 photos). It is tunable over 8 ITU-T 50GHz-grid channels (2.8nm). PMF CW laser. Fujitsu P/N: FLD5F15CA/002W9xxx, it is 20mW laser since transponder specification shows output >3dBm. Fiber is in 900um red buffer without connector, about 0.54 meter long. We will desolder and remove the laser module from PCB, so you can buy laser separately here. This sale will not include APD receiver and modulator modules.

Product wavelength options : FLD5F15CA/002W9590 from FIM83011/5052W9590, tunable over 1530.334 – 1533.073nm FLD5F15CA/002W9540 from FIM83011/5352W9540, tunable over 1534.250 – 1537.003nm FLD5F15CA/002W9490 from FIM83011/5052W9490, tunable over 1538.186 – 1540.953nm FLD5F15CA/002W9490 from FIM83011/5352W9490, tunable over 1538.186 – 1540.953nm FLD5F15CA/002W9340 from FIM83011/5352W9340, tunable over 1550.116 – 1552.926nm FLD5F15CA/002W9240 from FIM83011/5252W9240, tunable over 1558.173 – 1561.013nm

Store Part No. Choose wavelength and P/N Qty Price Buy
OSC-LDPM-C-014SA FLD5F15CA/002W9590 from FIM83011/5052W9590, tunable over 1530.334 – 1533.073nm 0 US$220.00 Out of stock
OSC-LDPM-C-014S1 FLD5F15CA/002W9490 from FIM83011/5052W9490, tunable over 1538.186 – 1540.953nm 3 US$230.00 + -
OSC-LDPM-C-014S3 FLD5F15CA/002W9340 from FIM83011/5352W9340, tunable over 1550.116 – 1552.926nm 4 US$290.00 + -
OSC-LDPM-C-014S4 FLD5F15CA/002W9240 from FIM83011/5252W9240, tunable over 1558.173 – 1561.013nm 50 US$210.00 + -
Add a different product to compare
    CONDITION:

    To be removed from unused long-reach 10Gb transponder subsystems. We are so confident in its working condition, so we do not need spend time to verify its working condition. Fiber will be quite long, cut from the fusion splice point between modulator and laser fiber.


  • DIM Weight
    0.5000 kg
  • Store Part No.
    OSC-LDPM-C-014S4
  • Choose wavelength and P/N
    FLD5F15CA/002W9240 from FIM83011/5252W9240, tunable over 1558.173 – 1561.013nm, FLD5F15CA/002W9340 from FIM83011/5352W9340, tunable over 1550.116 – 1552.926nm, FLD5F15CA/002W9490 from FIM83011/5052W9490, tunable over 1538.186 – 1540.953nm, FLD5F15CA/002W9540 from FIM83011/5352W9540, tunable over 1534.250 – 1537.003nm, FLD5F15CA/002W9590 from FIM83011/5052W9590, tunable over 1530.334 – 1533.073nm
  • Manufacturers
    • Manufacturer
      Fujitsu
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
