1.55um 7dBm analog Metrolink forward transmitter, with JDS laser CQF933/21xx, various wavelength options. Harmonic P/N: HLD7805-W0x-AS-1
Next image
Zoom image

1.55um 7dBm analog Metrolink forward transmitter, with JDS laser CQF933/21xx, various wavelength options. Harmonic P/N: HLD7805-W0x-AS-1


Not rated yet

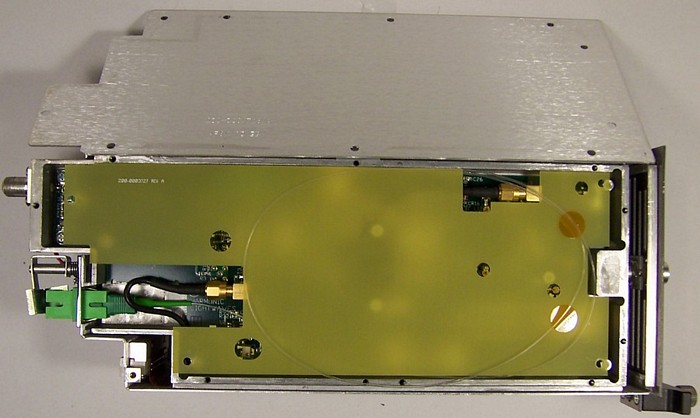

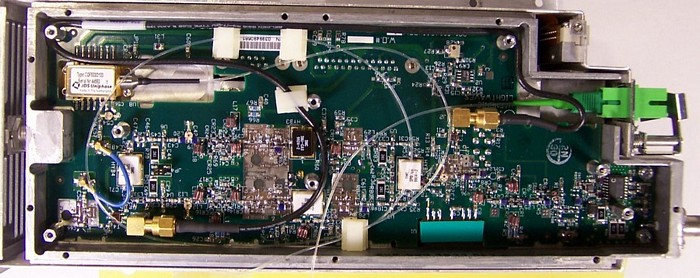

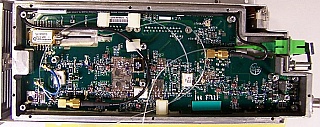

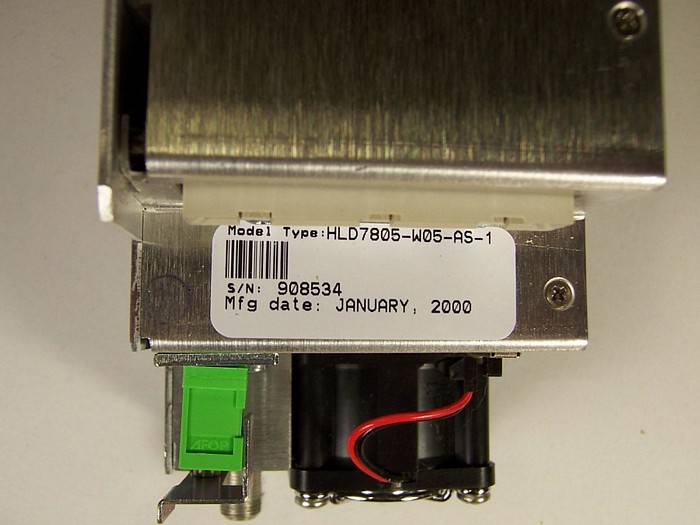

See transmitter module datasheet at 1st pdf link below. We opened a sample module HLD7805-W05-AS-1, found there is JDS laser CQF933/2133, as shown at last photo. “33” in laser P/N means specific wavelength. We very believe CQF933/21xx (made in Netherland factory of JDS) is same as CQF933/208-19xxx (made in USA factory of JDS). We do not have correct specification for CQF933/21xx, but we believe CQF933/21xx is very similar to 10mW CQF933/408-19xxx. See CQF933/408-19xxx laser datasheet at last pdf link below. Since the transmitter output is 7dBm, so the laser is either 5mW or 10mW version. (CQF915/208, CQF915/28xx, CQF915/408 have same output power, so probably CQF933/208, CQF933/21xx, CQF933/408 also have same 10mW output power ?).

With one SC/APC adapter.

We can remove laser from the transmitter module by desoldering machine with low-melting point solder, at extra $40 for the desoldering, testing, and packing work).

Available P/N, wavelengths: HLD 7805-W01-AS-1, 1549.32; HLD 7805-W02-AS-1, 1550.92; HLD 7805-W04-AS-1, 1554.13;  HLD 7805-W05-AS-1, 1555.75; HLD 7805-W06-AS-1, 1557.36; HLD 7805-W07-AS-1, 1558.98; HLD 7805-W08-AS-1, 1560.61.

General description:
Harmonic’s METROLink HLD 7805 is a family of high performance DFB laser transmitter modules designed for forward path narrowcasting applications. The DFB laser’s wavelength is stabilized and aligned to one of eight wavelengths on the ITU grid with 200 GHz (1.6 nm) spacing. Using Dense Wavelength Division Multiplexing (DWDM), digital narrowcast services can be carried on a single fiber and targetted by wavelength. The HLD 7805 transmitters can operate alone in local distribution and narrowcasting applications or in combination with Harmonic’s METROLink family of gain flattened optical amplifers, wavelength selected broadcast transmitters and multiplexers and demultiplexers for complete system solutions.

Store Part No. Choose P/N and wavelength Qty Price Buy
OMS-Tx-1550-285CA HLD7805-W01-AS-1, 1549.32. 2 US$280.00 + -
OMS-Tx-1550-285C0 HLD7805-W02-AS-1, 1550.92. 1 US$280.00 + -
OMS-Tx-1550-285C1 HLD7805-W04-AS-1, 1554.13. 1 US$240.00 + -
OMS-Tx-1550-285C2 HLD7805-W05-AS-1, 1555.75. 6 US$230.00 + -
OMS-Tx-1550-285C3 HLD7805-W06-AS-1, 1557.36. 3 US$225.00 + -
OMS-Tx-1550-285C4 HLD7805-W07-AS-1, 1558.98. 2 US$220.00 + -
OMS-Tx-1550-285C5 HLD7805-W08-AS-1, 1560.61. 5 US$210.00 + -
Add a different product to compare
    CONDITION:

    Good cosmetic condition. We do not know how to use it and unable to verify its working condition. You may try it and return if you are not satisfied, but two-way shipping fee is not refundable.


  • DIM Weight
    2.0000 kg
  • Store Part No.
    OMS-Tx-1550-285CA
  • Choose P/N and wavelength
    HLD7805-W08-AS-1, 1560.61., HLD7805-W07-AS-1, 1558.98., HLD7805-W06-AS-1, 1557.36., HLD7805-W05-AS-1, 1555.75., HLD7805-W04-AS-1, 1554.13., HLD7805-W02-AS-1, 1550.92., HLD7805-W01-AS-1, 1549.32.
  • Manufacturers
    • Manufacturer
      Harmonic
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)
