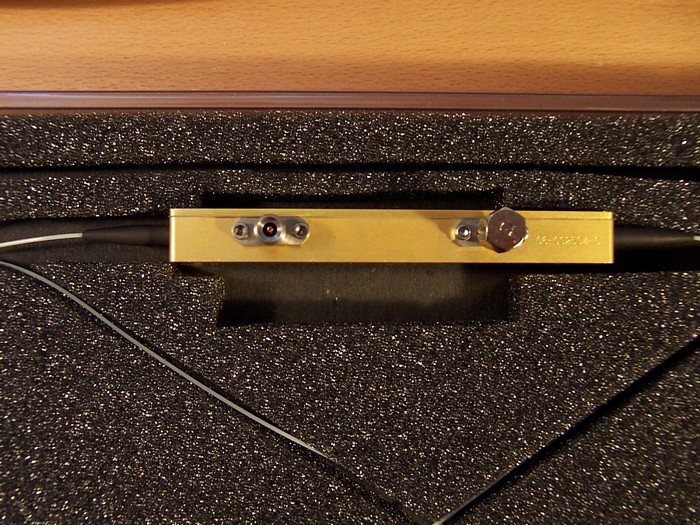

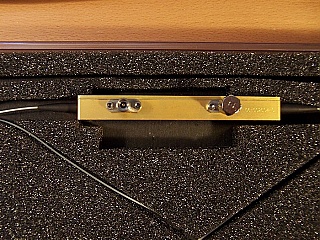

1.55um C-band 10Gb/s Bias-Ready optical digital intensity modulator, we have modulator driver for this modulator. Sample verified chirp-free. JDS P/N: 10020416. 6-dB insertion loss. Not Oxidized .

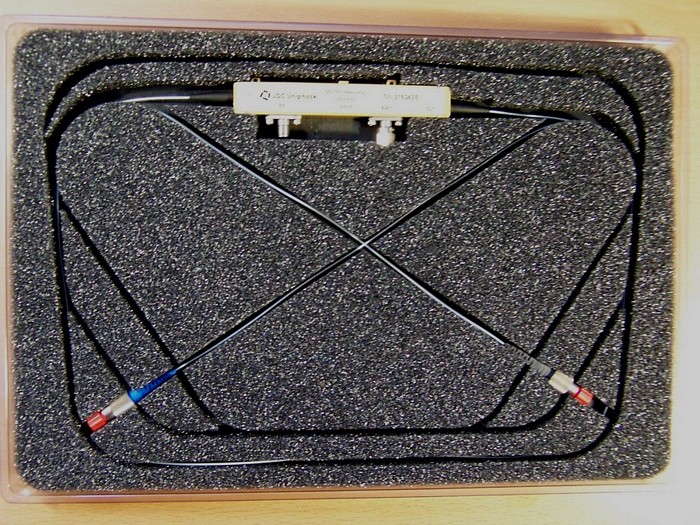

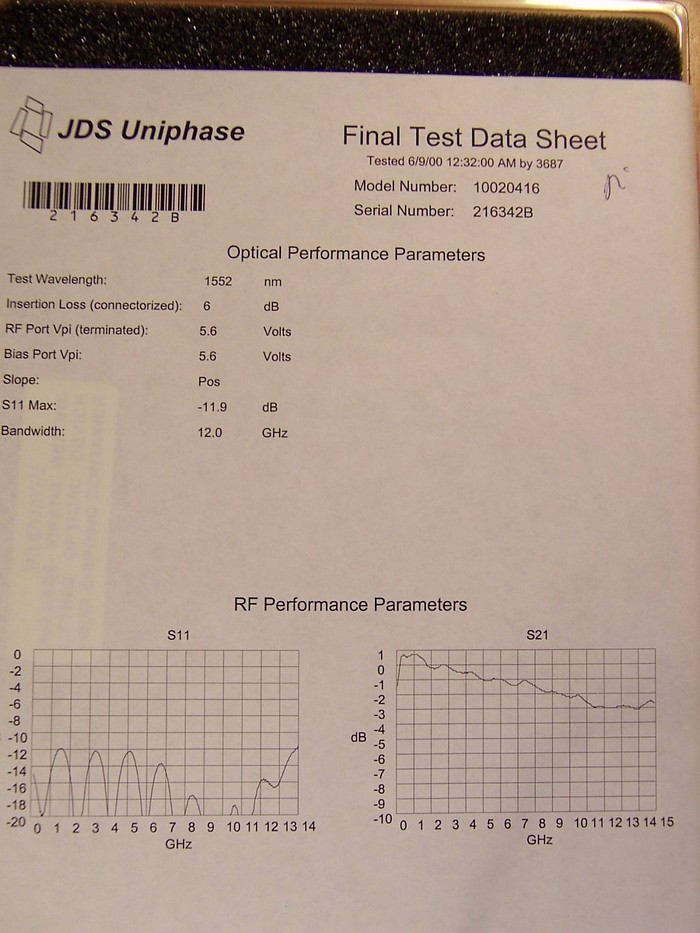

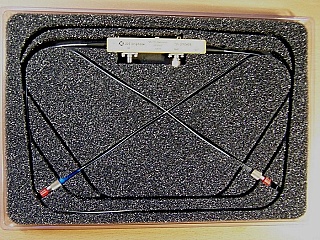

Test data at last photo below shows 6-dB insertion loss, 12GHz bandwidth. We have modulator driver MTC5515 for this modulator. With two FC/PC fiber connectors.

According to general principle, X-cut LiNbO3 modulator has almost zero chirp due to its sysmmetric structure (chirp parameter of Z-cut structure is 0.7). Our local customer has verified a sample is chirp-free.

The test example in its pdf datasheet link below applies MTC5510 modulator driver. We have improved version MTC5515, which is almost same as MTC5510, but offers improved performance. Modulator sample is verified working well with our 10Gb modulator driver (Multilink P/N: MTC5515 ) up to 1.3GHz (1.3GHz is our highest signal source frequency) at our lab. You can buy this modulator and also MTC5515 10Gb modulator driver together from our online store, then the modulator is ready to use with power supplies.

The 10 Gb/s “Bias Ready” Intensity Modulator is designed for TDM and WDM 10 Gb/s transmission.It features excellent stability in a biased circuit and operates within the 1530 to 1565 nm range.

Features
• Excellent stability in a biased circuit
• 1530 nm to 1565 nm operation
• Proven JDS Uniphase reliability
• Low insertion loss provides maximum transmission power

Applications
• TDM and WDM 10 Gb/s transmission

See one application example of this modulator (unconnectorized version) at http://www.lightwavestore.com/store/product.php?productid=16422&cat=0&page=1

Note: In principle, all LiNbO3 modulator is working at low frequency naturally. So this modulator can also works at 10KHz or even at DC. Some of our customers use LiNbO3 modulators at low frequency (for test equipment, sensor, training and education, etc.). You can also use high-freq modulator driver for low frequency, see http://www.lightwavestore.com/store/product.php?productid=19250

Note: As shown in the pdf datasheet, 10020417 is exactly same as 10020416. Only one difference : 10020416 have two fiber connectors, 10020417 has no fiber connectors.

PDF datasheet 19.9 kB

CONDITION:

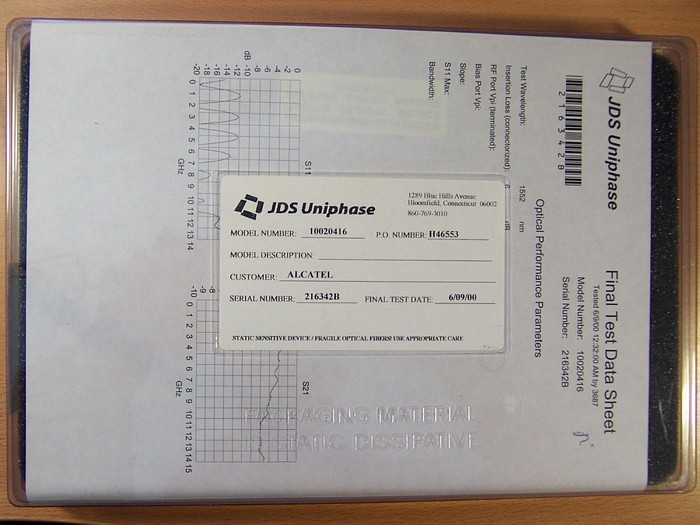

New in original product pack. Excellent cosmetic condition, modulator body is not oxidized. With actual test sheet at last photo below. We have tested 10 samples of this JDS 10Gb modulator at our lab, with our new arrived modulator drivers MTC5515 and MTC5515-751. They work quite well up to 1.3GHz, checked by 1.3GHz digital scope. The DC bias and insertion loss might slightly drift from manufacture test data, but they still meet specification (at least very close to specification). Our local university customer with more professional RF instruments just tested one sample of this 10Gb modulator. He has verified a different sample can work well at >10GHz, bandwidth is about 13GHz, insertion loss is 4.8dB, and chirp-free. DC bias voltage, insertion loss match manufacture test data. When it is operated at the carrier suppression mode, the suppress ratio is about 32 dB (large enough). Overall test result of this 10G modulator sample is nicer than other type of regular 10G modulators.

DIM Weight

1.2000 kg

Store Part No.

OSC-MOD-10Gb-200F

Manufacturers
- Manufacturer
  jds
