Tell us if you like to save shipping fee, then we will remove original paper box in last 2 photos.
Product Overview

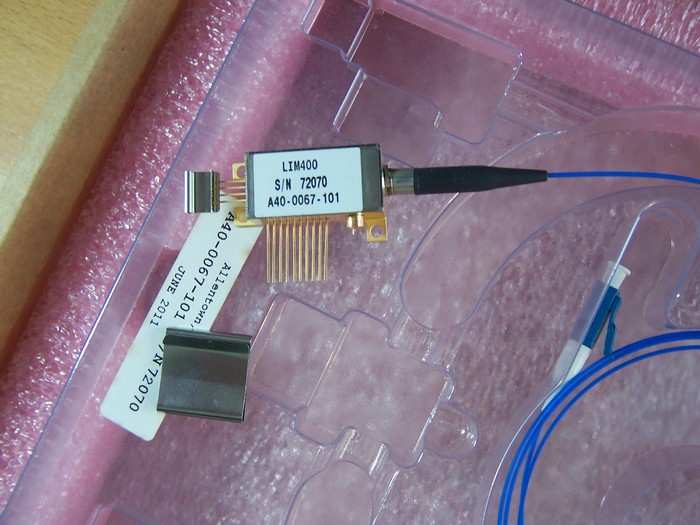

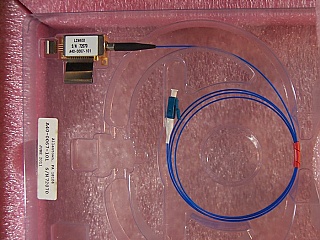

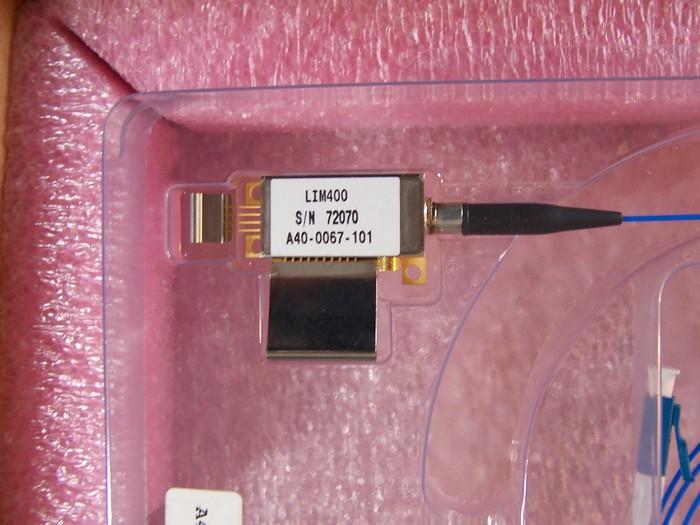

The CyOptics (formerly Apogee Photonics) LIM400 Laser-Integrated Module is a compact, high-performance device used in 40Gb/s long-reach data transmission. The LIM400 enables ITU and MSA compliance with a dispersion penalty of less than 1dB over 40ps/nm of fiber, and an end-of-life output power-exceeding 0dBm. The LIM400 is ideal for both 2km VSR and 80km LR dispersion-compensated applications.
CyOptics’ innovation has led to the reduction of size and power requirements, enabling MSA-compliant transponders and increased board densities. The LIM400 integrates both laser and modulator into a single package, thereby eliminating a separate TEC. A proprietary internal-biasing technology permits direct connection to the RF port of the EAM, eliminating the need for an external bias-tee. Lastly, the low-profile corner-mount design of the LIM400 allows additional board space savings.
Features
• Enables ITU and MSA Compliance
• Single Fiber Package
• 40Gb Electroabsorption Modulator (EAM) with Integrated Laser
• Integrated bias eliminates need for external bias-tee
• Separate DC bias for chirp control
• 40ps/nm with < 2dB Dispersion Penalty (w/o FEC)
• Unique low-profile corner mount design.
• GPPO-connector input
• Full Telcordia GR-468-CORE qualification
The manufacture test data shows operational wavelengths (nm) and bandwidth for our stocked samples as below:
1532.36 (LC/PC connector), 3dB bandwidth: 29.46GHz
1560.64 (SC/PC connector), 3dB bandwidth: 28.6GHz
1561.84 (LC/PC connector), 3dB bandwidth: 29.21GHz
One sample has no test data with SC/PC connector, $15 cheaper.
Tell us your wavelength and connector preference when you order.
