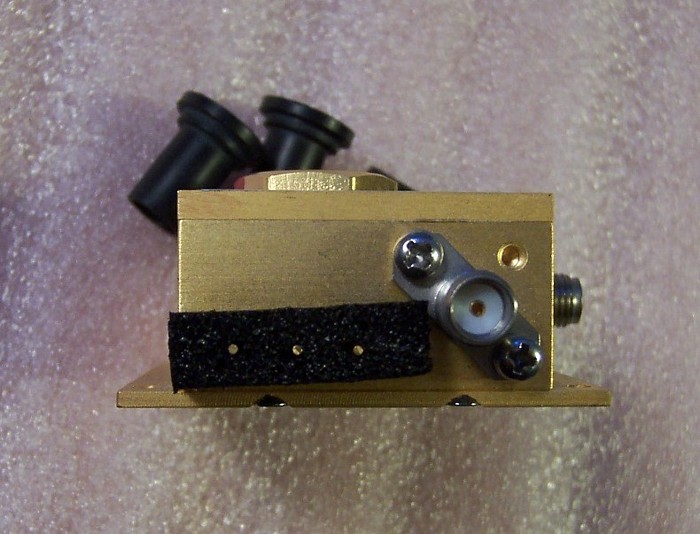

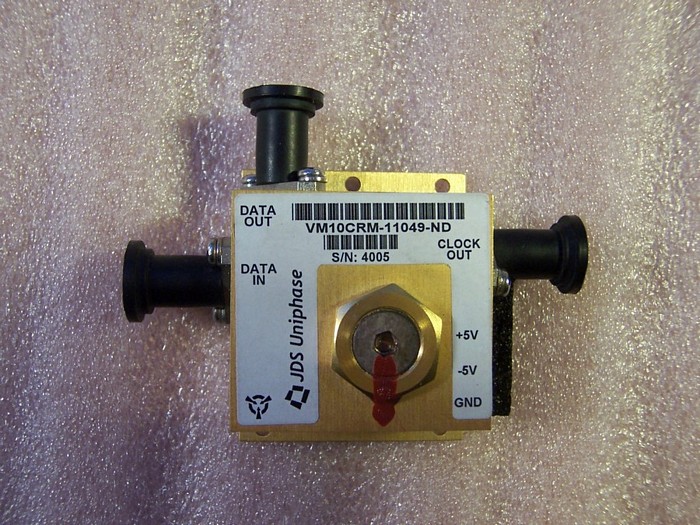

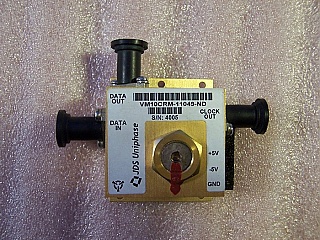

This product is used to generate a high-level synchronous clock signal from 10 Gb/s NRZ data. This module includes a temperature-stable high “Q” filter (800 to 1000) for excellent jitter transfer characteristic, which unlike phase-locked-loop designs cannot “loose lock.”

The unit can be supplied with an optional data output port and factory-settable clock rate in the range of 9.9 to 11.5 Gb/s. Please specify the bit rate in MHz when ordering. (See instructions for the packaging part numbering.)

Key Features• Low DC power, 5 V at 160 mA typical• Provides sinusoidal clock >1.5 Vp-p• Accepts data input level as low as 300 mVp-p• Internal DC regulation and reverse voltage protection• Spectral purity >30 dBc• Optional data output port eliminates external splitters, couplers• Excellent output amplitude and phase stability over input level range and temperature• Fast start-up (50 to 100 bits)
