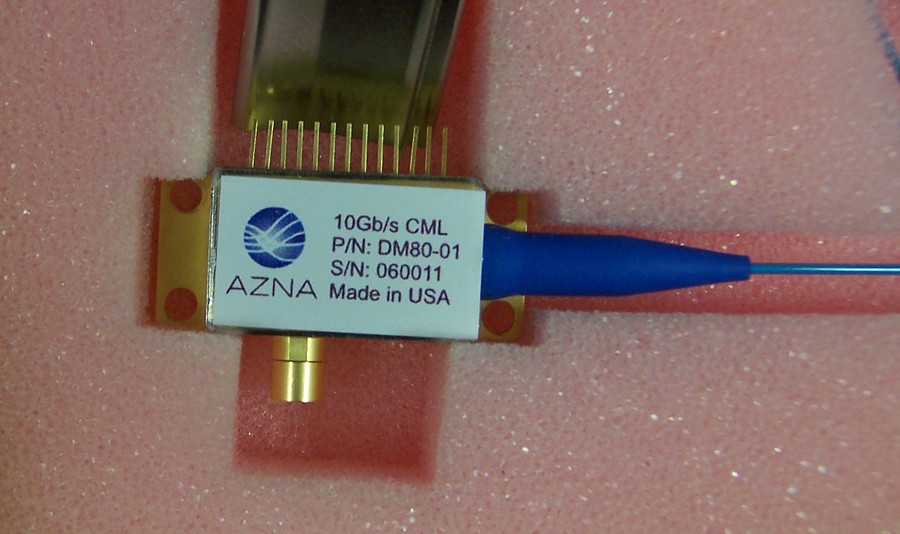

10Gb directly modulated laser. 1535.036nm, 1555.747nm, 1600.6nm, or 1604.026nm. 10Gb/s 120km Telecom CMLTM 13pin-GPO Butterfly Transmitter. AZNA or Finisar P/N: DM80-01-1-xxxx-4-LC,
Next image
Zoom image

10Gb directly modulated laser. 1535.036nm, 1555.747nm, 1600.6nm, or 1604.026nm. 10Gb/s 120km Telecom CMLTM 13pin-GPO Butterfly Transmitter. AZNA or Finisar P/N: DM80-01-1-xxxx-4-LC,


Not rated yet

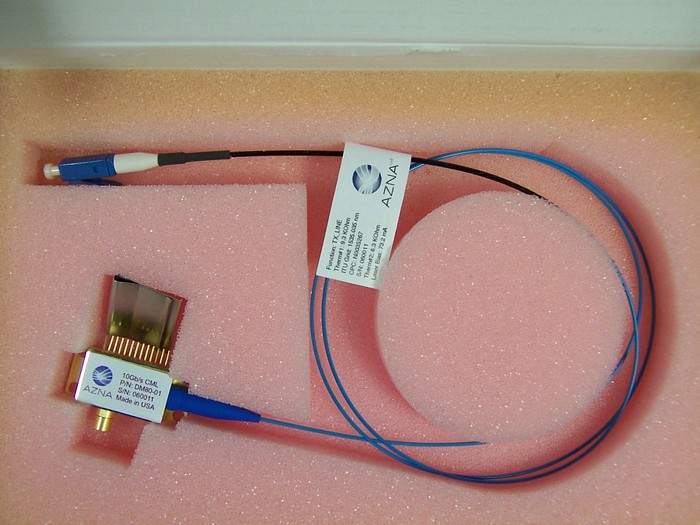

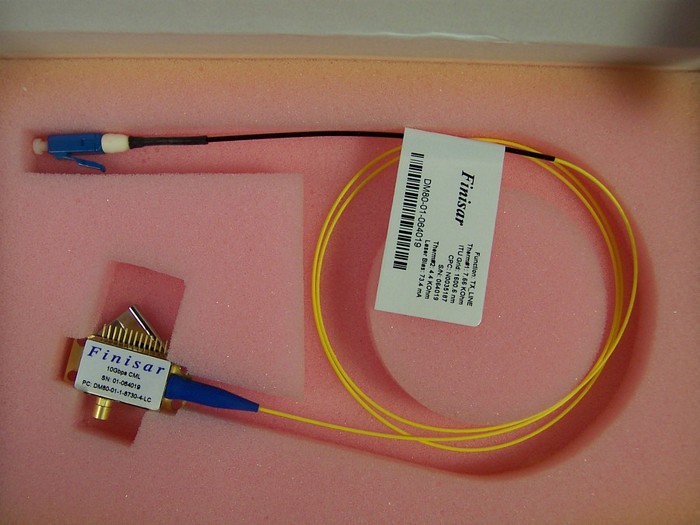

With GPO male RF interface. With 900um tube fibers with LC/PC fiber connectors. See datasheet at the 1st two pdf links below. AZAN was merged into Finisar. Made in mostly in 2006 (except 2pc are in 2007).

PRODUCT FEATURES
• High Performance CMLTM
• Supports multi-bit-rate application, from 9.95Gb/s to 11.1Gb/s
• Supports link length up to 120km without DCM
• 4-7dBm modulated output power
• Case temperature range -5°C to 75°C
• Supports application with and without FEC
• TDM, DWDM single channel
• Covers ITU-T C- and L-band channels (1527.773nm to 1605.744nm)

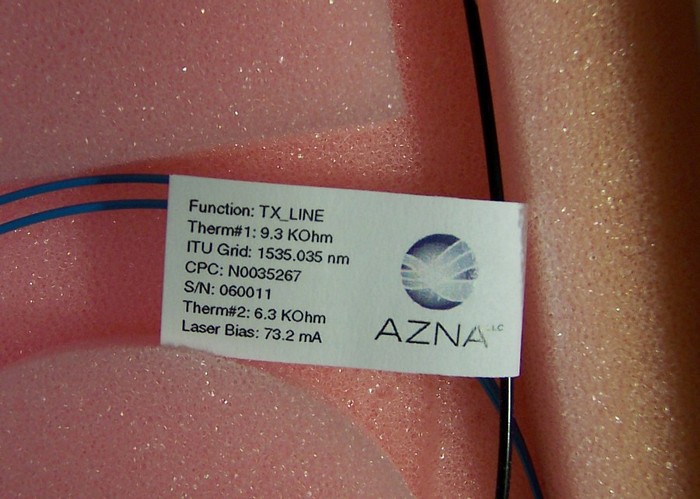

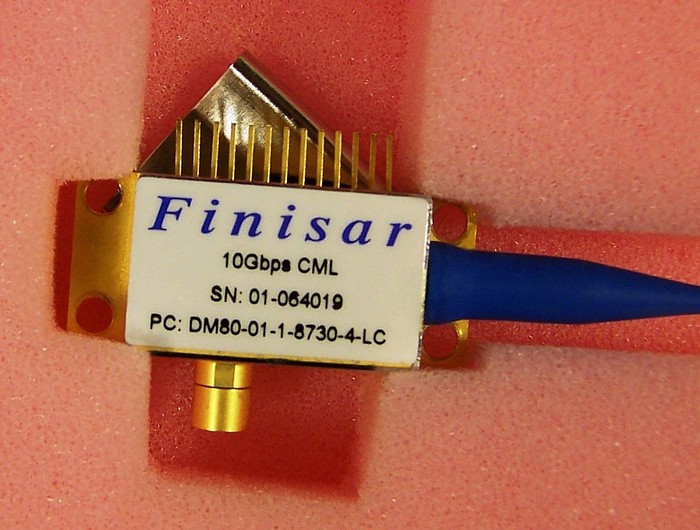

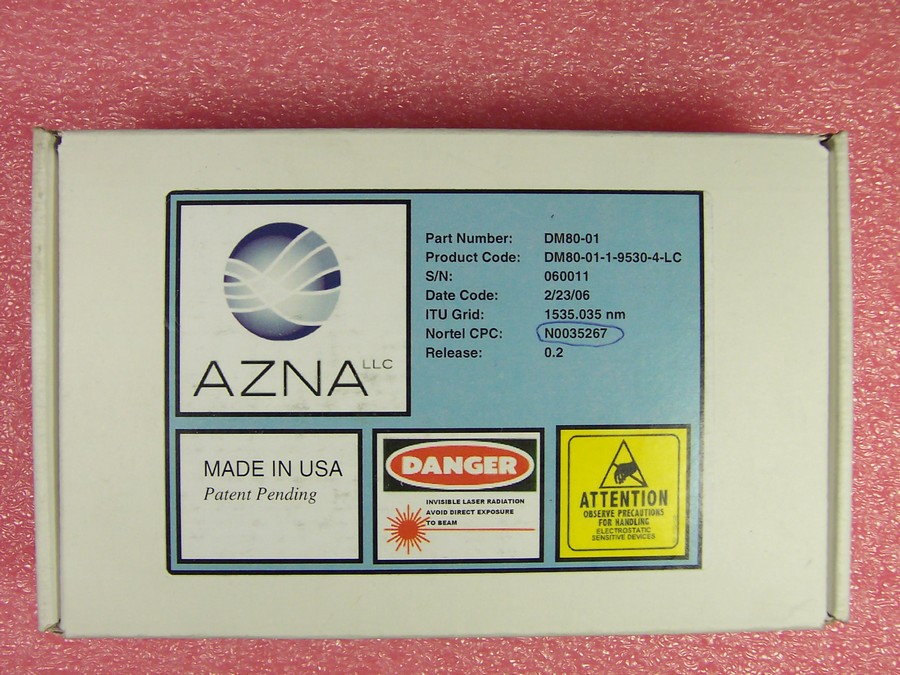

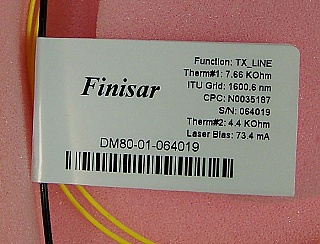

Wavelength and P/N: 1535.036nm, AZAN P/N: DM80-01-1-9530-4-LC; 1600.6nm, FINISAR P/N: DM80-01-1-8730-4-LC; 1604.026nm, AZAN P/N: DM80-01-1-8690-4-LC.

With GPO/SMP male interface. You can use GPO(SMP)-female to SMA-female adapter (Store product code: EIP-RFADAPTERS-017D) to convert to SMA interface. SMA can work up to 18GHz.

Store Part No. Choose wavelength and P/N Qty Price Buy
OSC-LDS-C-900CA 1535.036nm, AZAN P/N: DM80-01-1-9530-4-LC 0 US$865.00 Out of stock
OSC-LDS-C-900C1 1600.6nm, FINISAR P/N: DM80-01-1-8730-4-LC 1 US$780.00 + -
OSC-LDS-C-900C2 1604.026nm, AZAN P/N: DM80-01-1-8690-4-LC 0 US$760.00 Out of stock
Add a different product to compare
    CONDITION:

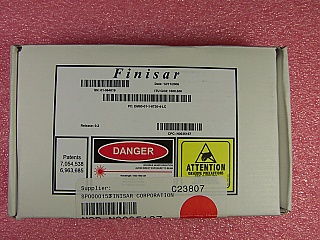

    new in original product pack, with manufacture test data, as shown at last 2 pdf links above..


  • DIM Weight
    0.5500 kg
  • Store Part No.
    OSC-LDS-C-900C1
  • Choose wavelength and P/N
    1604.026nm, AZAN P/N: DM80-01-1-8690-4-LC, 1600.6nm, FINISAR P/N: DM80-01-1-8730-4-LC, 1555.747nm, AZAN P/N: DM80-01-1-9270-4-LC, 1535.036nm, AZAN P/N: DM80-01-1-9530-4-LC
  • Manufacturers
    • Manufacturer
      AZNA
