10Gb optic modulator and 20mW laser module combo from nortel 10Gb Transmitter system
Next image
Zoom image

10Gb optic modulator and 20mW laser module combo from nortel 10Gb Transmitter system


Not rated yet

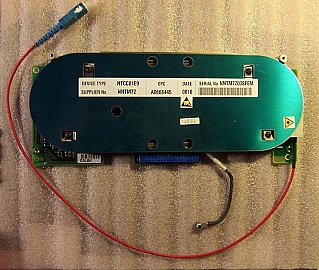

The small board with laser module and modulator will be removed from system, see actual photos of two removed samples at left. There was a standard Lucent 2623NA 10Gb amplitude modulator, see datasheet at the 1st pdf link below. Fusion-spliced with 20mW Nortel(Bookham) laser with PM Fiber, see general datasheet at the 2nd pdf link below. With external fiber tap photo detector.

It was used in standard Nortel OC-192 long haul system. We have some product publications for standard Nortel OC-192 long haul system which include this modulator info.

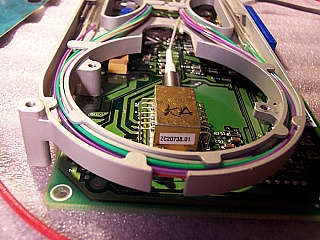

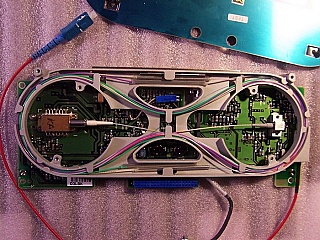

One point of the output fiber of modulator is glued on the plastic tray (fiber tray), fiber tray is with fiber coils and is the grey oval section. The glue is not removable.

OC-192 DWDM Tx cards info:
Card type 1: NTCA01HK. SNT3F91CAA. 1541.35nm +/-CHIRP. SC/PC out. 99/07/07 or 00/11/21. 2pc available (One unit of small board with 1541.35nm laser module and modulator has been already removed from system, see actual photos).
Card type 2: NTCA01VK. SNT3F04CAB. 1550.92nm +/-CHIRP. SC/PC out. 00/08/17.
Card type 3: NTCA01KK. SNT3F02CAA. 1552.52nm +/-CHIRP. SC/PC out. 00/08/09 or 00/07/20.
Card type 4: NTCA01EK. SNT3F61CAA. 1530.33nm +/-CHIRP. SC/PC out. 00/08/07.
Card type 5: NTCA01QA. SNT4BBJBAA. 1538.19nm +/-CHIRP. FC/PC out. Datecode: 99/05/05.
Card type 6: NTCA01GA. SNT3F8ECAA. 1535.04nm +/-CHIRP. FC/PC out. Datecode: 98/12/15 or 98/05/05.
Card type 9: NTCA01XK. SNT3F05CAA. 1555.75nm +/-CHIRP. SC/PC out. Datecode: 00/08/31.
Card type 10: NTCA01RA. SNT5MGBAAA. 1539.77nm +/-CHIRP. FC/PC out. Datecode: 99/04/24. The small board with laser module and modulator has been already removed from system, see actual photos.
Card type 11: NTCA03VA. SNT3EOUCAA. 1550.92nm +/-CHIRP. FC/PC out. Datecode: 99/02/04. Price is $30 more.

Store Part No. Choose product Qty Price Buy
OSC-MOD-10Gb-003BA 1541.35nm +/-CHIRP. SC/PC out. Card Datecode: 99/07/07 or 00/11/21. 0 US$495.00 Out of stock
OSC-MOD-10Gb-003B0 1550.92nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/17. 0 US$530.00 Out of stock
OSC-MOD-10Gb-003B1 1552.52nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/09 or 00/07/20. 0 US$510.00 Out of stock
OSC-MOD-10Gb-003B2 1530.33nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/07. 0 US$490.00 Out of stock
OSC-MOD-10Gb-003B3 1538.19nm +/-CHIRP. FC/PC out. Card Datecode: 99/05/05. 0 US$495.00 Out of stock
OSC-MOD-10Gb-003B4 1535.04nm +/-CHIRP. FC/PC out. Card Datecode: 98/12/15 or 98/05/05. 0 US$490.00 Out of stock
OSC-MOD-10Gb-003B5 1539.77nm +/-CHIRP. FC/PC out. Card Datecode: 99/04/24 0 US$495.00 Out of stock
OSC-MOD-10Gb-003B56 1555.75nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/31. 0 US$500.00 Out of stock
OSC-MOD-10Gb-003B66 1550.92nm +/-CHIRP. FC/PC out. Card Datecode: 99/02/04. 0 US$530.00 Out of stock
Add a different product to compare
    CONDITION:

    to be removed from unused system . One unit of 1541.35nm laser module and modulator and one unit of 1539.77nm laser module and modulator have been already removed from system, see actual photos at left.


  • DIM Weight
    2.2000 kg
  • Store Part No.
    OSC-MOD-10Gb-003BA
  • Choose product
    1550.92nm +/-CHIRP. FC/PC out. Card Datecode: 99/02/04., 1555.75nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/31., 1539.77nm +/-CHIRP. FC/PC out. Card Datecode: 99/04/24, 1535.04nm +/-CHIRP. FC/PC out. Card Datecode: 98/12/15 or 98/05/05., 1538.19nm +/-CHIRP. FC/PC out. Card Datecode: 99/05/05., 1530.33nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/07., 1552.52nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/09 or 00/07/20., 1550.92nm +/-CHIRP. SC/PC out. Card Datecode: 00/08/17., 1541.35nm +/-CHIRP. SC/PC out. Card Datecode: 99/07/07 or 00/11/21.
  • Manufacturers
    • Manufacturer
      Lucent
