10km to 18km Lucent truewave-RS fiber spool.
Next image
Zoom image

10km to 18km Lucent truewave-RS fiber spool.


Not rated yet

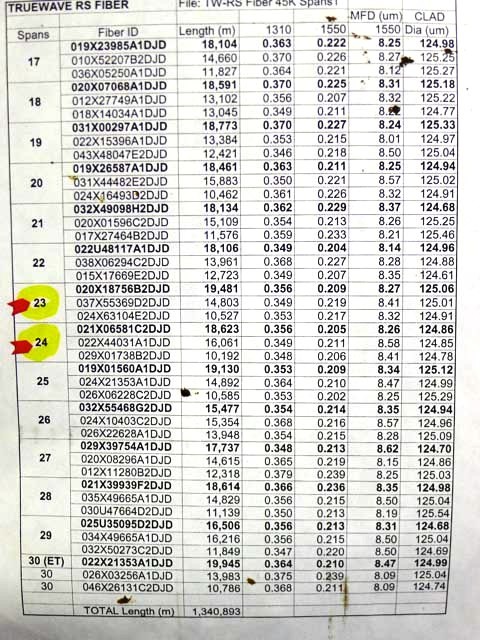

It is Truewave Reduced Slope (TWRS) fiber, see test data at the 9th photo. See year 1998 datasheet in 1st pdf link and year 2003 datasheet in 2nd pdf link below.

Based on following tested zero dispersion wavelength and slope data, we verified that it is G.655 fiber, more specifically it is truewave RS fiber: Zero dispersion wavelength: 1467.93nm, dispersion slope at zero dispersion wavelength: 0.0524 ps /(nm2*km), spool length: 17.754km, tested by our local dispersion-test contractor at last pdf link below (see spool 8 in test report, there is typo error in dispersion slope), with GN Nettest dispersion receiver FD440 RX and transmitter FD440 TX, in July 2013.

It is made in late 1999 or 2000.

Store Part No. Choose fiber spool length (m) Qty Price Buy

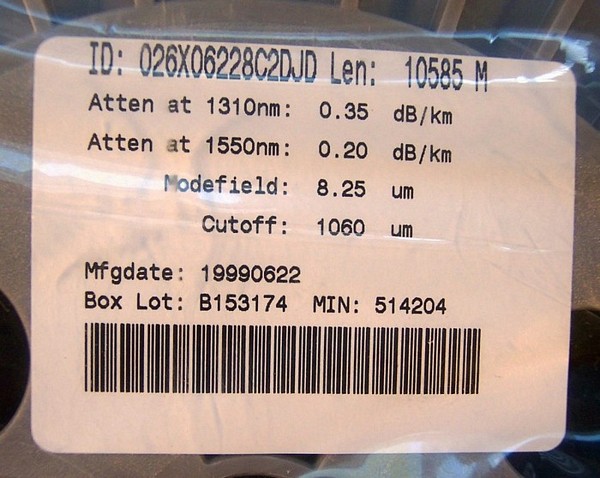

FSC-NZDSF-SPOOL-005EA 10,585 0 US$341.00 Out of stock
FSC-NZDSF-SPOOL-005E0 14,892 1 US$465.00 + -
FSC-NZDSF-SPOOL-005E1 15,477 1 US$479.00 + -
FSC-NZDSF-SPOOL-005E2 15,354 1 US$476.00 + -

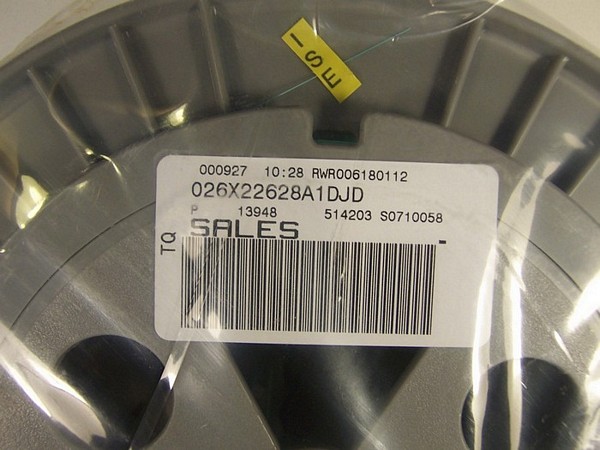

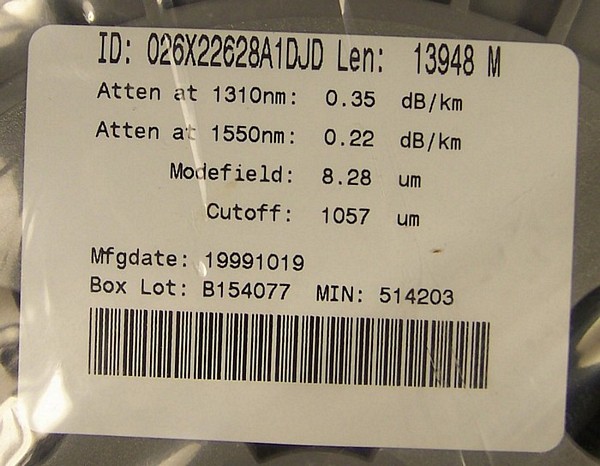

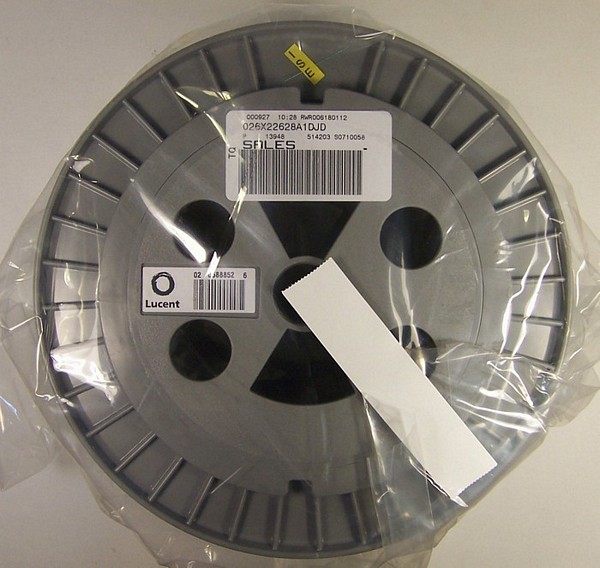

FSC-NZDSF-SPOOL-005E3 13,948 1 US$438.00 + -
FSC-NZDSF-SPOOL-005E4 17,737 very-slightly used with 2 FC/PC connectors in 3mm-cables, with dispersion test data at last pdf link below (spool 8), IL=3.87dB at 1550nm 0 US$587.00 Out of stock
FSC-NZDSF-SPOOL-005E5 14,615 1 US$456.00 + -
FSC-NZDSF-SPOOL-005E6 12,318 1 US$392.00 + -

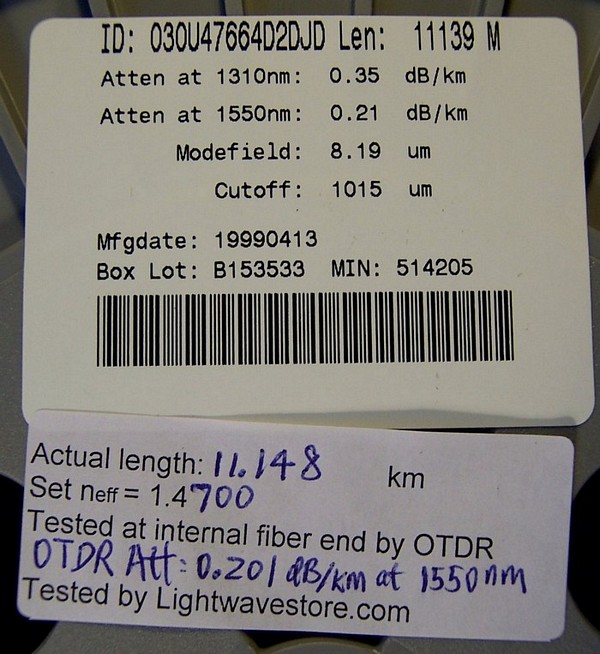

FSC-NZDSF-SPOOL-005E8 11,139 1 US$357.00 + -
FSC-NZDSF-SPOOL-005E9 14,829 1 US$463.00 + -
FSC-NZDSF-SPOOL-005E10 19,481 0 US$584.00 Out of stock
FSC-NZDSF-SPOOL-005E12 14,803 1 US$462.00 + -
FSC-NZDSF-SPOOL-005E13 10,192 1 US$330.00 + -

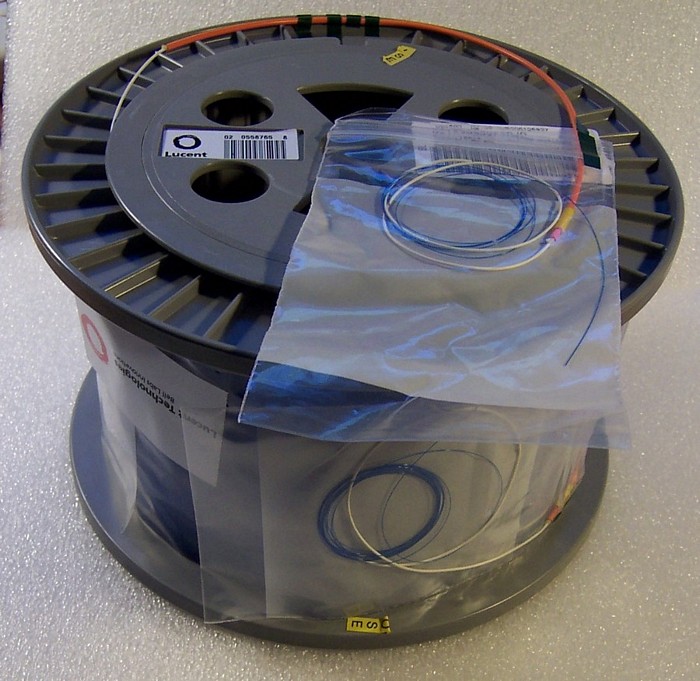

FSC-NZDSF-SPOOL-005E15 16,061 very-slightly used with cable leads 1 US$476.00 + -
Add a different product to compare
    CONDITION:

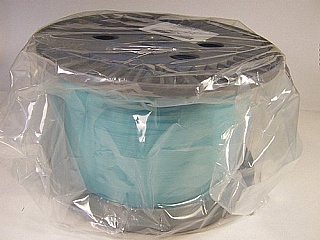

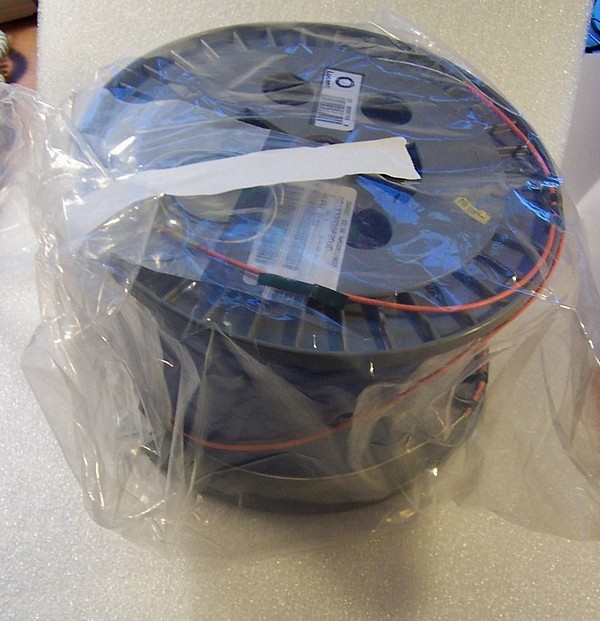

    New, never used (except 4 samples are very-slightly used, fiber roll is still covered with plastic film). With original full fiber length.


  • DIM Weight
    3.9000 kg
  • Store Part No.
    FSC-NZDSF-SPOOL-005E13
  • Choose fiber spool length (m)

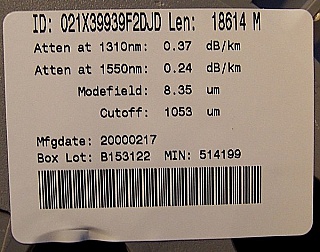

    16,061 very-slightly used with cable leads, 18,623 very-slightly used with cable leads, 10,192, 14,803, 10,527, 19,481, 14,829, 11,139, 18,614 very-slightly used with cable leads, 12,318, 14,615, 17,737 very-slightly used with 2 FC/PC connectors in 3mm-cables, with dispersion test data at last pdf link below (spool 8), IL=3.87dB at 1550nm, 13,948, 15,354, 15,477, 14,892, 10,585
  • Manufacturers
    • Manufacturer
      Lucent
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
