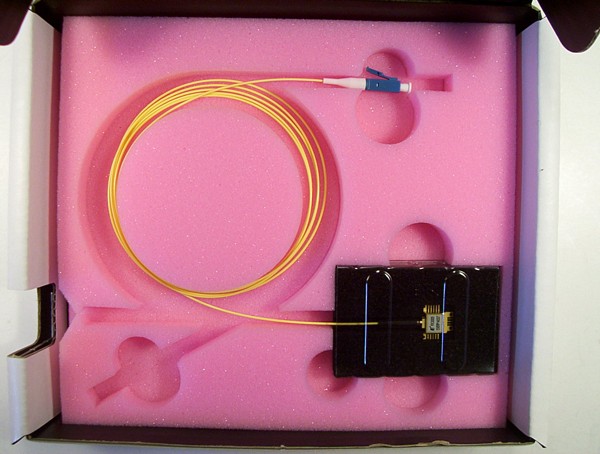

10Gb PIN-type linear receiver, with LC/PC connector. Eudyna model: ES/ERP1402GT205L

900um buffer fiber with LC/PC connector. We do not know pin-out definition. General description 10Gbps Linear Receiver Small size 9pin coplanar MSA package (ERx1402GW) Board mount type 17pin coplanar MSA package (ERx1402GT) High sensitivity and Excellent Overload +3.3V mid-gain transimpedance amplifier Transimpedance Gain: 0.9k? (Single Ended), 1.8k? (Differential) Maximum Output Voltage Swing: 550mVpp (Single Ended), 1100mV (Differential) Response Wavelength: 1270nm to 1620nm Operating Case Temperature: -5°C to 75°C Part No., Type, Responsivity (A/W), Transimpedance Zt (k OHM), - dB, Bandwidth (GHz), Minimum Sensitivity (dBm), Overload Pmax (dBm), Max., Package eRP1402gt, Pin, 1 0.9, 9, -20, 0, 17-pin

PDF datasheet 18.7 kB
HTML datasheet 18.7 kB
