Previous image
150pc 1x2 100GHz C-band mux/demux thin-film filter. Various available wavelengths. JDS P/N: from DWSW126002501 to DWSW142002501
Next image
Zoom image

150pc 1x2 100GHz C-band mux/demux thin-film filter. Various available wavelengths. JDS P/N: from DWSW126002501 to DWSW142002501


Not rated yet

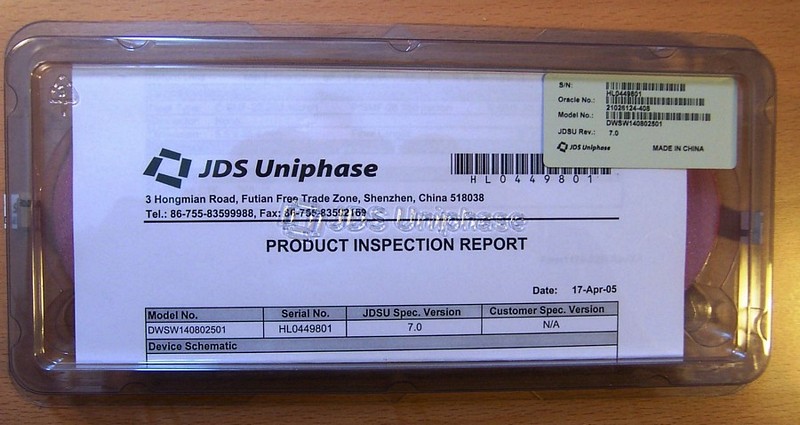

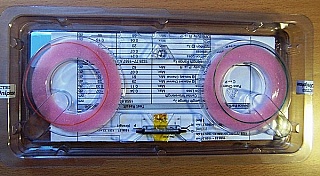

Passband: about 0.29nm. IL: max 1.07dB. ITU 100GHz spacing DWDM multiplexer/demultiplexer. 1X2 thin-film type optical filter. With SMF-28 250um-coating bare fibers. Photos are from a sample of what we have. See manufacture test data from our samples at last four pdf links below.

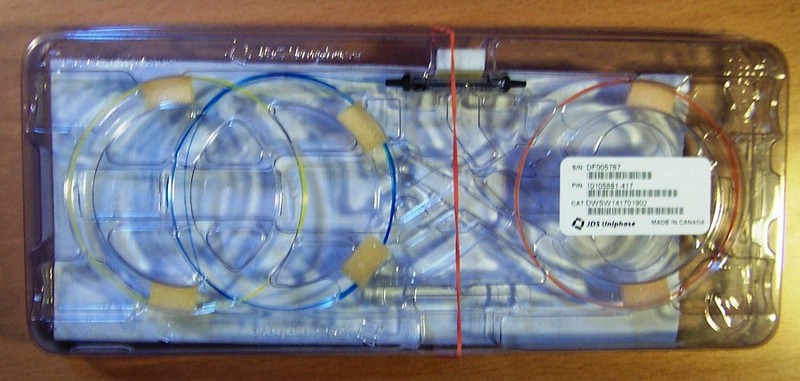

See ITU grid at the 2nd pdf link below. Mostly made in 2005 in China. Very few samples are made in 2002 in China (specified in the qty list below, see technical details at last photo and last pdf link below).

Wavelengths:
P/N: DWSW128002501, 1532.68nm
P/N: DWSW140802501, 1558.17nm
P/N: DWSW141202501, 1558.98nm
P/N: DWSW141602501, 1559.79nm
P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada
P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada, (without test data)
P/N: DWSW142002501, 1560.61nm

Store Part No. Choose center wavelength Qty Price Buy
FFC-TFF-101C1 P/N: DWSW128002501, 1532.68nm 67 US$26.00 + -
FFC-TFF-101C12 P/N: DWSW140802501, 1558.17nm 6 US$35.00 + -
FFC-TFF-101C13 P/N: DWSW141202501, 1558.98nm 16 US$35.00 + -
FFC-TFF-101C14 P/N: DWSW141602501, 1559.79nm 4 US$35.00 + -
FFC-TFF-101C15 P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada 0 US$35.00 Out of stock
FFC-TFF-101C16 P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada, (without test data) 0 US$33.00 Out of stock
FFC-TFF-101C17 P/N: DWSW142002501, 1560.61nm 7 US$32.00 + -
Add a different product to compare
    CONDITION:

    new in original product pack, with individual manufacture test data sheet


  • DIM Weight
    0.2500 kg
  • Store Part No.
    FFC-TFF-101C1
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose center wavelength
    P/N: DWSW144002501, 1564.68nm, (without test data), P/N: DWSW143202501, 1563.05nm, P/N: DWSW142002501, 1560.61nm, P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada, (without test data), P/N: DWSW141701902, 1559.997nm, made in 2002 in Canada, P/N: DWSW141602501, 1559.79nm, P/N: DWSW141202501, 1558.98nm, P/N: DWSW140802501, 1558.17nm, P/N: DWSW140401902, 1557.36nm, made in 2002 in Canada, P/N: DWSW140002501, 1556.55nm, P/N: DWSW138802501, 1554.13nm, made in 2002 in Canada, (without test data), P/N: DWSW138002501, 1552.52nm, P/N: DWSW134802501, 1546.12nm, made in 2002 in Canada, (without test data), P/N: DWSW134002501, 1544.53nm, P/N: DWSW133202501, 1542.94nm, P/N: DWSW130002501, 1536.61nm, P/N: DWSW129202501, 1535.04nm, P/N: DWSW128802501, 1534.25nm, P/N: DWSW128002501, 1532.68nm, P/N: DWSW127603601, 1531.51nm, P/N: DWSW126002501, 1528.77nm
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
