With LC/PC fiber connector. 4dBm – 7dBm output.
See year-2007(January) datasheet at the 1st pdf link below, see year-2004 (December) datasheet at last pdf link below.
Wavelengths and model numbers:

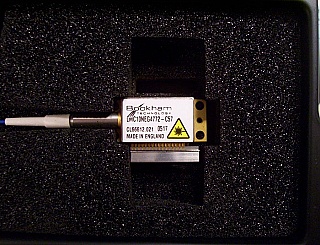

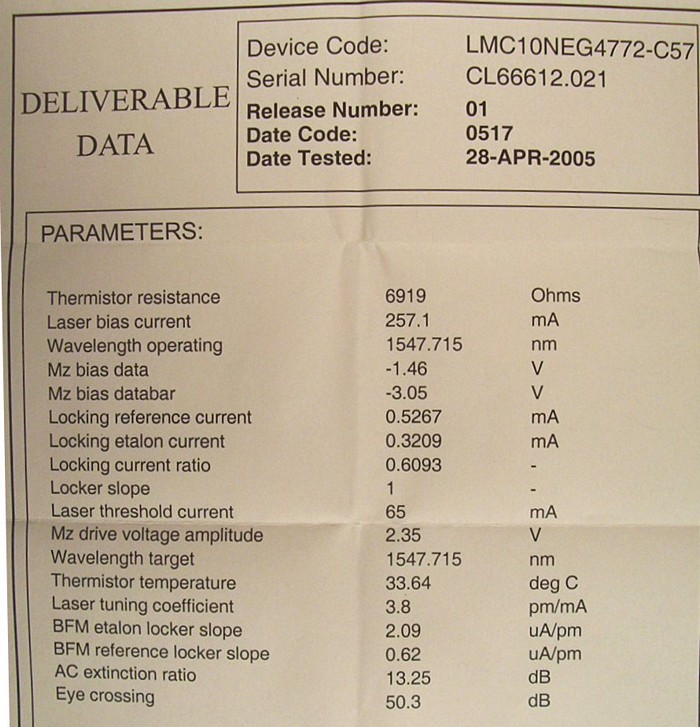

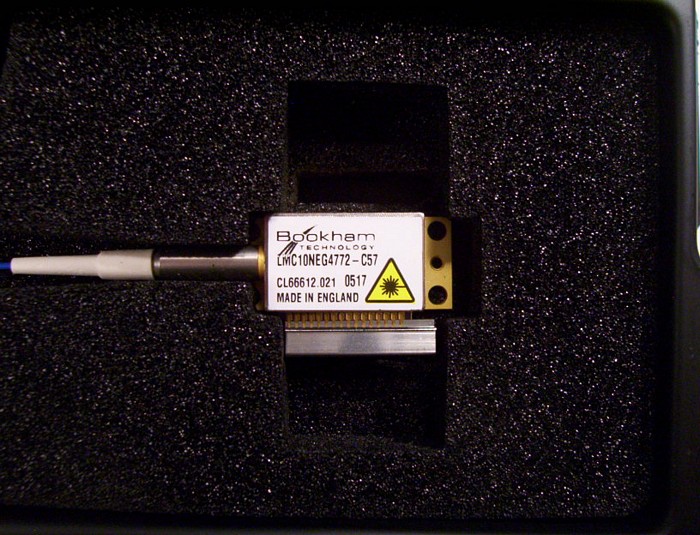

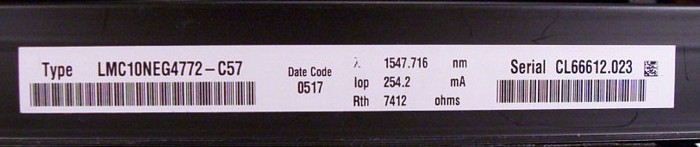

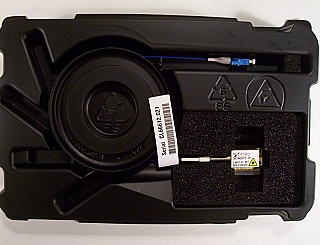

1547.72nm, LMC10NEG4772-C57, with full test sheet(last 2 photos)

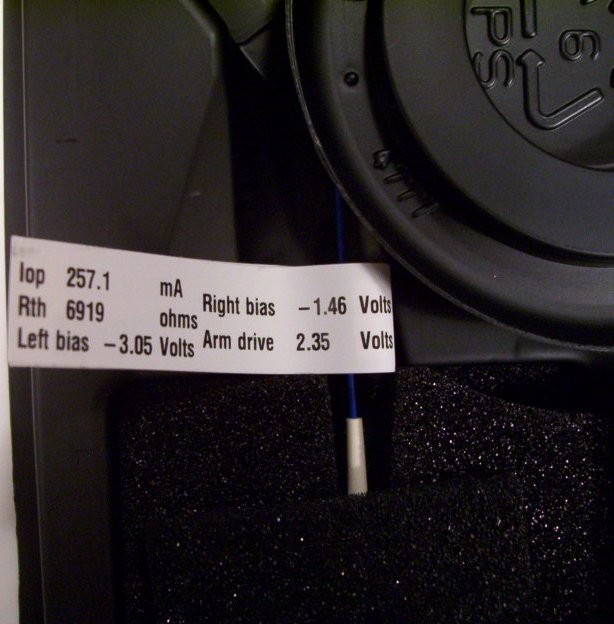

1547.72nm, LMC10NEG4772-C57, without full test sheet, with test data tag on the fiber
1554.13nm, LMC10NEG5413-C57, with full test sheet(last 2 photos)

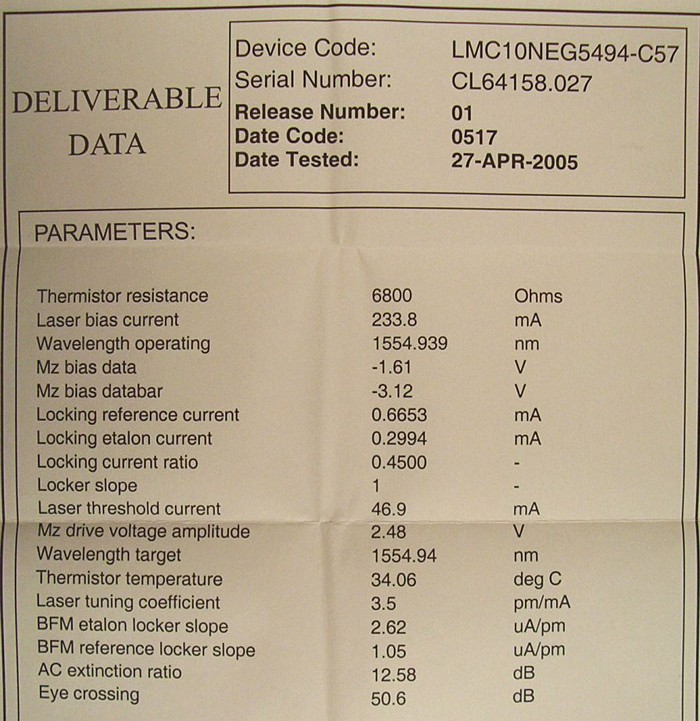

1554.94nm, LMC10NEG5494-C57, with full test sheet(last 2 photos)
1555.75nm, LMC10NEG5655-C57, without full test sheet, with test data tag on the fiber
General description:

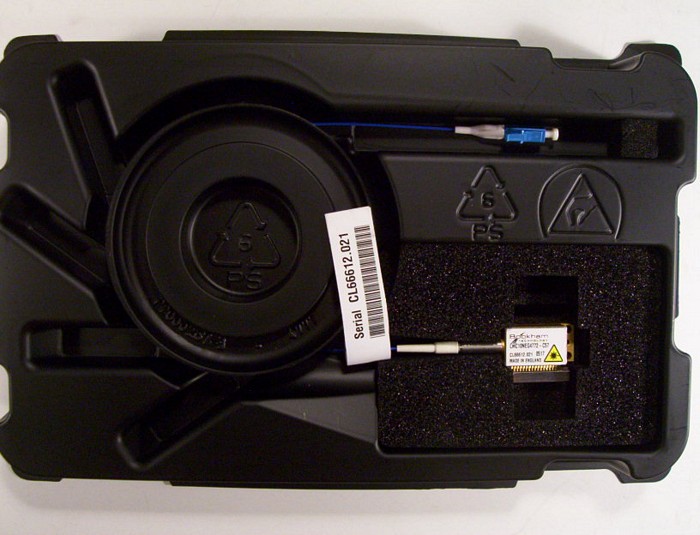

The LMC10NEG product, containing the Bookham Ultra High Power Strained Layer DFB laser chip and negative chirp InP MZ modulator, has been specifically designed for use in 10 Gb/s high performance regional metro and long haul DWDM systems. By co-packaging the laser, locker, modulator and MZ Bias Control Tap in a package with the same footprint area as the industry standard 14-pin, the LMC10 series provides Mach-Zehnder performance at a price similar to lower performance alternatives. The provision of the MZ bias control tap offers the option of MZ bias point optimisation for best transmitted optical waveform over life. The high output power, integral wavelength locking and high extinction ratio provides excellent OSNR to allow the device to be employed on multi-span long haul links.
Features:
• Mean modulated power is higher than +4dBm over life and temperature
• Negative Chirp (up to 1600ps/nm applications)
• Co-planar differential RF drive [2.7 volts
• Suitable for 50GHz ITU applications with +/-20pm wavelength accuracy over life
• Low Power Dissipation
• Industry Standard 14-pin footprint area
• Pins on one side to allow increased system density
• C and L band
• Unrivalled performance vs size
• Qualified to Telcordia GR-468 CORE • RoHS 5/6 compliant
Applications:
• 10Gb/s Long Haul DWDM multi-span dispersion compensated links
• Regional Metro single spans with no dispersion compensation
• 10Gb/s Overlay for Metro Networks
• 2.5Gb/s Long Haul DWDM multi-span non dispersion compensated links
