1557.36nm 10mW 14-pin butterfly Laser Module. Fujitsu P/N: FLD5F6CXP/067W25 or FLD5F6CXP/067W27
Next image
Zoom image

1557.36nm 10mW 14-pin butterfly Laser Module. Fujitsu P/N: FLD5F6CXP/067W25 or FLD5F6CXP/067W27


Not rated yet

10mW peak power. SM 900um buffered fiber with SC/APC connector. The fiber is verified SMF under fiber scope. Designed for 2.5Gb/s DWDM direct modulation.

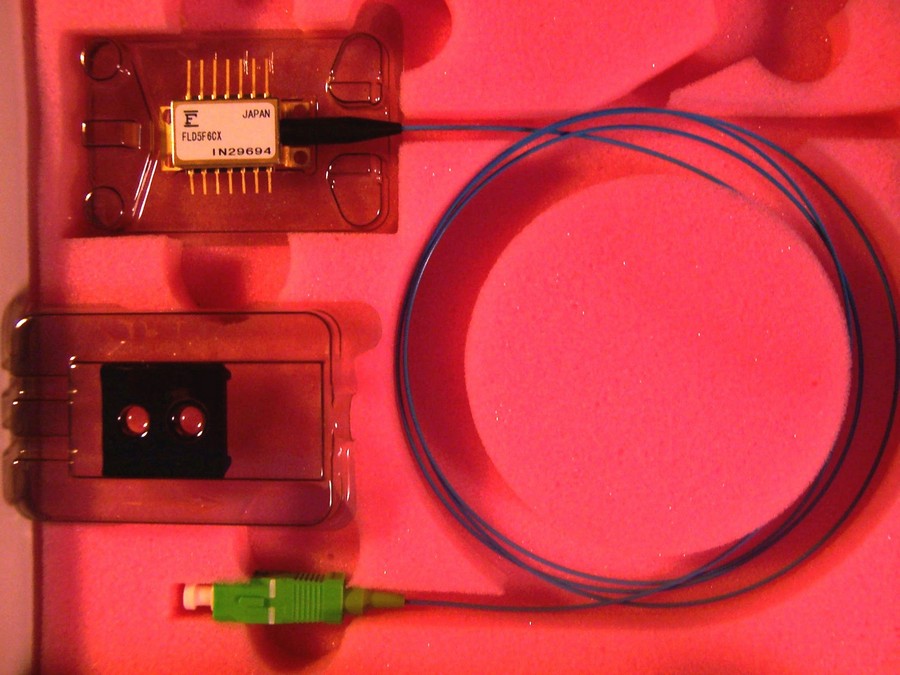

This laser has shorter leads at one side, as shown at last photo below. It is not cut, just designed like that. It should be ok for general use, unless your PCB design requires long leads.

Store Part No. Choose wavelength and P/N Qty Price Buy
OSC-LDS-C-007K0 1557.36nm, FLD5F6CXP/067W25 7 US$203.00 + -
Add a different product to compare
    CONDITION:

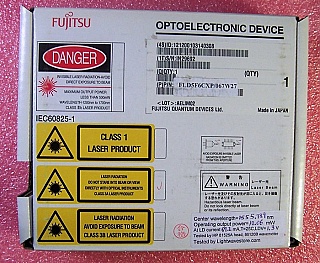

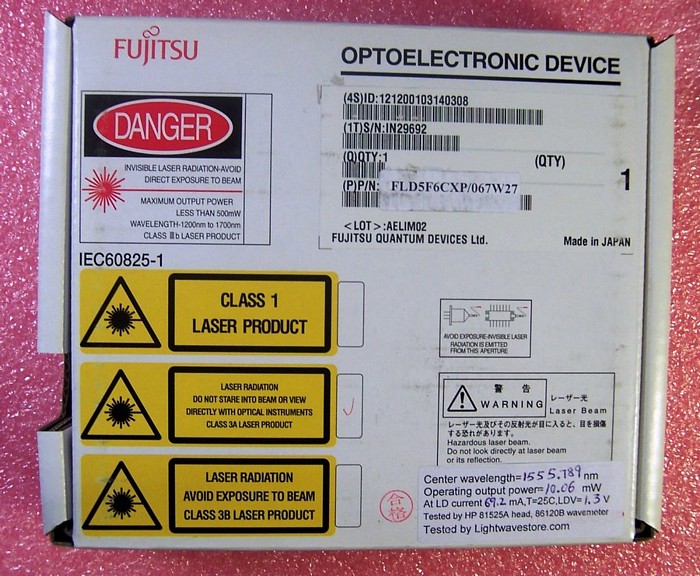

    new in original product pack. With actual manufacture test sheet. One laser sample is tested good at our lab, see our test result at 1st photo.


  • DIM Weight
    0.4200 kg
  • Store Part No.
    OSC-LDS-C-007K0
  • Choose wavelength and P/N
    1557.36nm, FLD5F6CXP/067W25, 1555.75nm, FLD5F6CXP/067W27
  • Manufacturers
    • Manufacturer
      Fujitsu
