1460-1490nm 180mW Alcatel A1948PLI Laser with internal isolator. Product code: 3CN00207FT. with SC/APC connector.
Next image
Zoom image

1460-1490nm 180mW Alcatel A1948PLI Laser with internal isolator. Product code: 3CN00207FT. with SC/APC connector.


Not rated yet

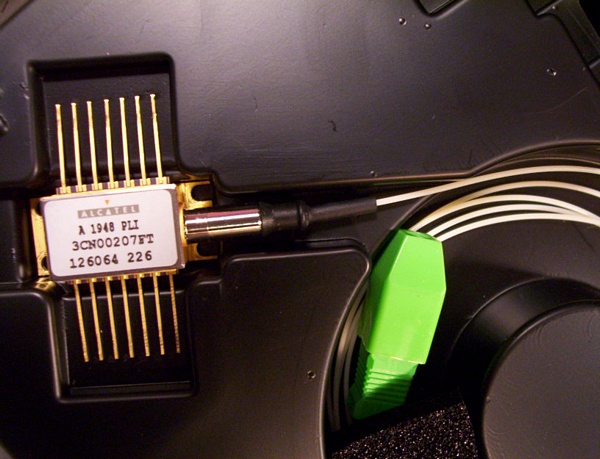

180mW 1.48um Terrestrial Pump Laser Module with internal isolator. Without FBG. 900um-bufferred SM fiber pigtail with SC/APC connector (SMF checked by fiber scope). The average wavelength is between 1460-1490nm in actual manufacturer test sheet. Lasing is multimode over several nm or even more than 10nm.
This item is out of stock
  • US$230.00
Add a different product to compare
    CONDITION:

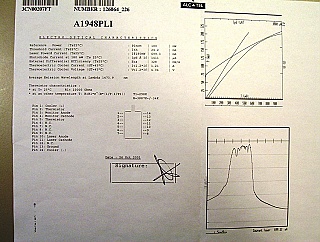

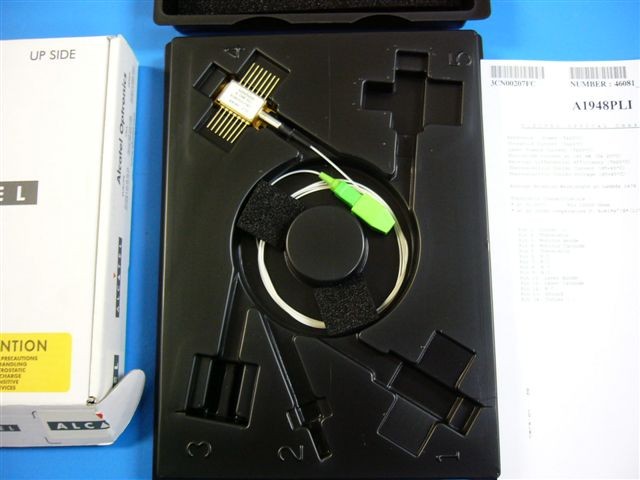

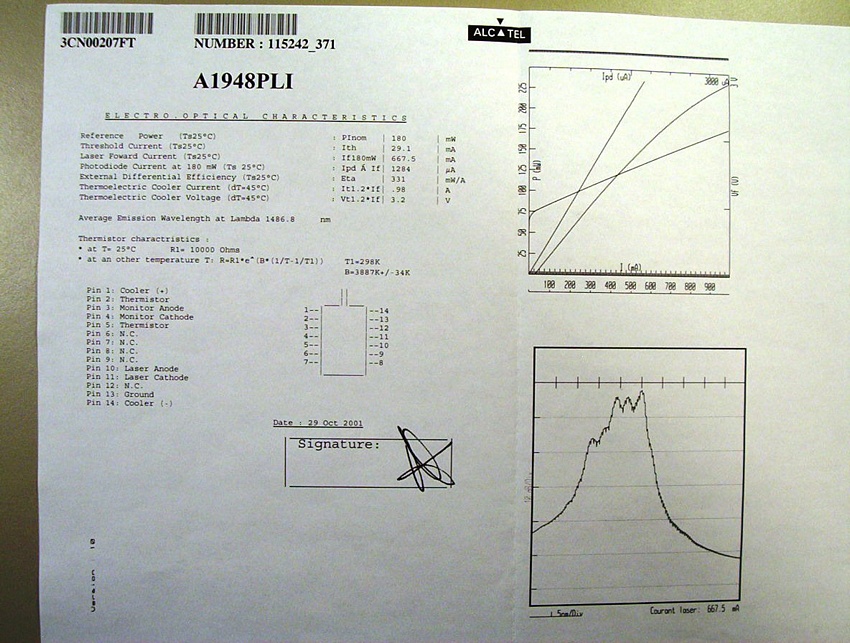

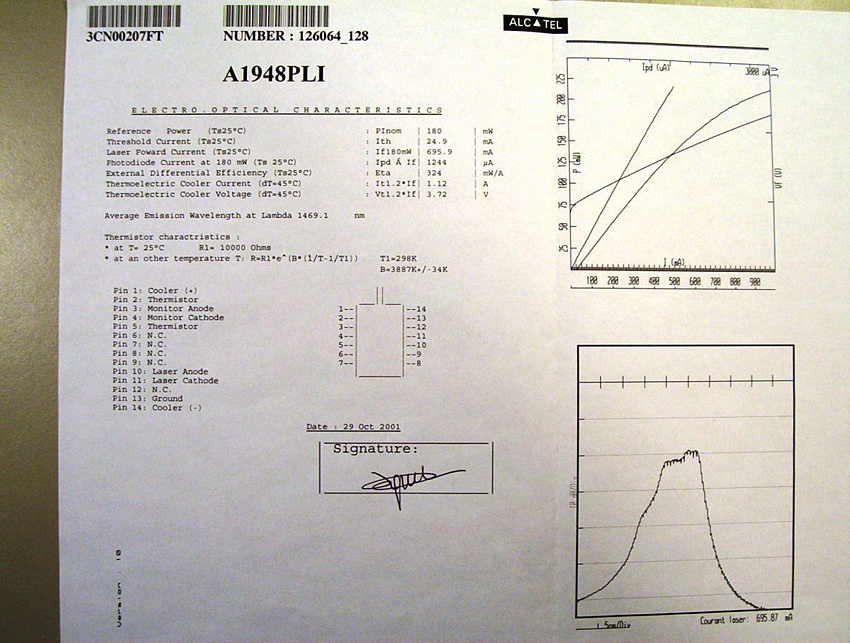

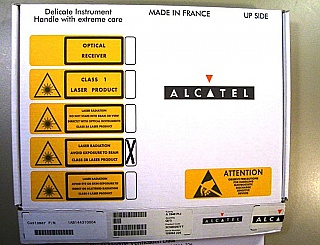

    new in original product case, with manufacturer test sheet. Sample was tested well at our lab, see our test reports at last two photos below.

  • DIM Weight
    0.7000 kg
  • Store Part No.
    OSC-PUMP-14xx-030CA
  • Choose wavelength from manufature test data
    1489.5nm, 1472.5nm, 1468.1nm
  • Manufacturers
    • Manufacturer
      Alcatel
