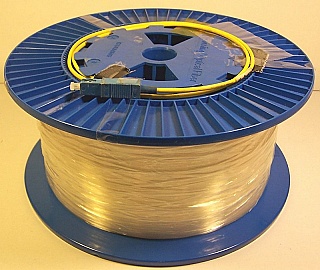

15.43km SMF-28 bare fiber spool, with one SC/PC connector

Both internal end and external end connectors of fiber spool are accessible. With one SC/PC fiber connector in 3mm cable at internal end. You can add a connector by fusion splce by yourself. Or you can ask us to add connector by fusion splice with $20 extra cost at Add fiber connector to optical fiber module by fusion-Splice.

See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.

CONDITION:

Fiber roll is in good condition. Fiber attenuation by OTDR is tested very good (0.189dB/km at 1550nm) at our lab, see 2nd photo below. The fiber length is measured as 15.429km. In another OTDR test, we cascaded another SMF-28 spool, tested connector plus splice loss of internal fiber end is <0.25dB, indicated and duduced from 3rd photo below. All our test result is shown at the label of last photo below.

DIM Weight

3.5000 kg

Store Part No.

FSC-SMF-SPOOL-072C

PDF datasheet 21 kB
Similar-model PDF datasheet 21 kB

Manufacturers
- Manufacturer
  Corning
