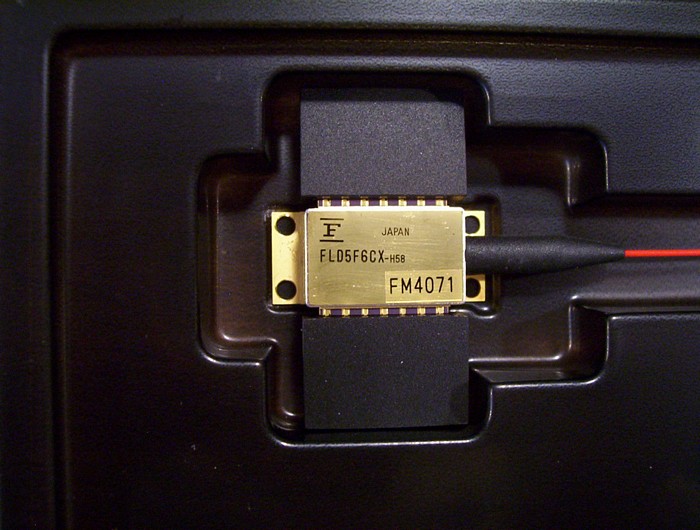

1531.12nm, 1538.19nm, or 1542.14nm, 10mW Fujitsu FLD5F6CX-Hxx DFB Laser
Next image
Zoom image

1531.12nm, 1538.19nm, or 1542.14nm, 10mW Fujitsu FLD5F6CX-Hxx DFB Laser


Not rated yet

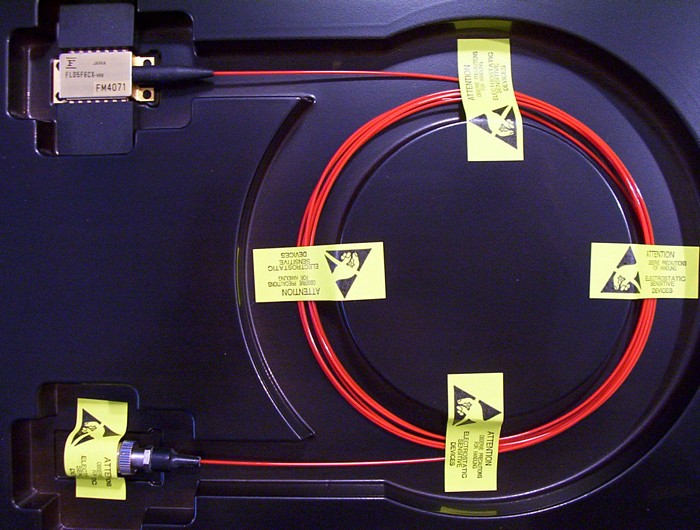

PMF with FC/PC connector. 10mW CW Light Source for DWDM System. Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator. With FC connector. It has angled end face but not standard APC. It will get near 3dB loss if connecting with FC/PC jumper, and >10dB loss if connecting with FC/APC jumper. So user may change to a standard connector by fusion splice by himself. (We guess the connector is only for evaluation test, after test, user normally cut the connector and fusion-splice with modulator input fiber.)
This item is out of stock
  • US$210.00
Add a different product to compare
    CONDITION:

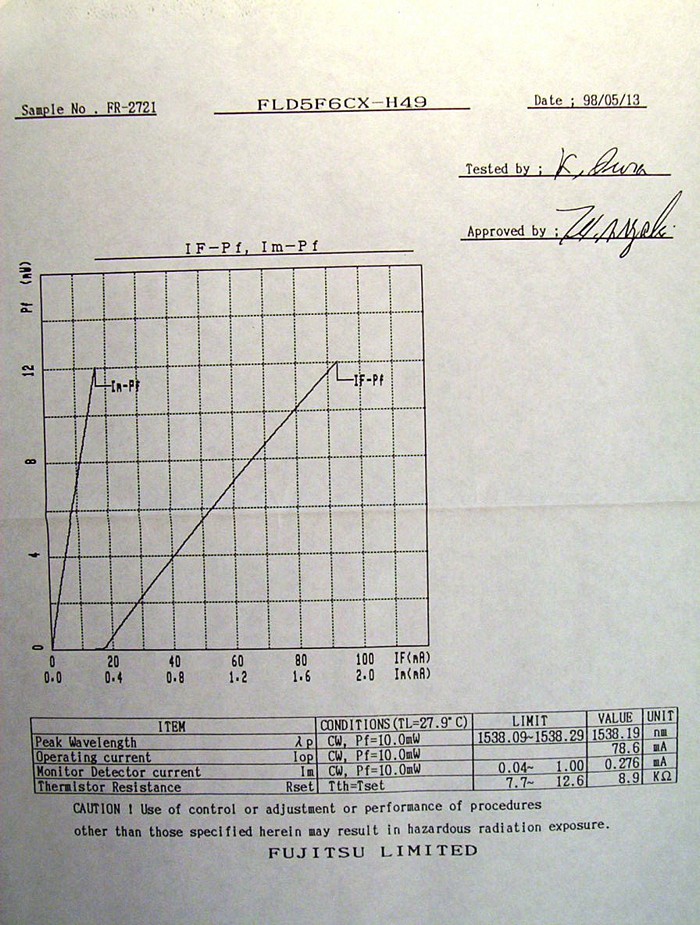

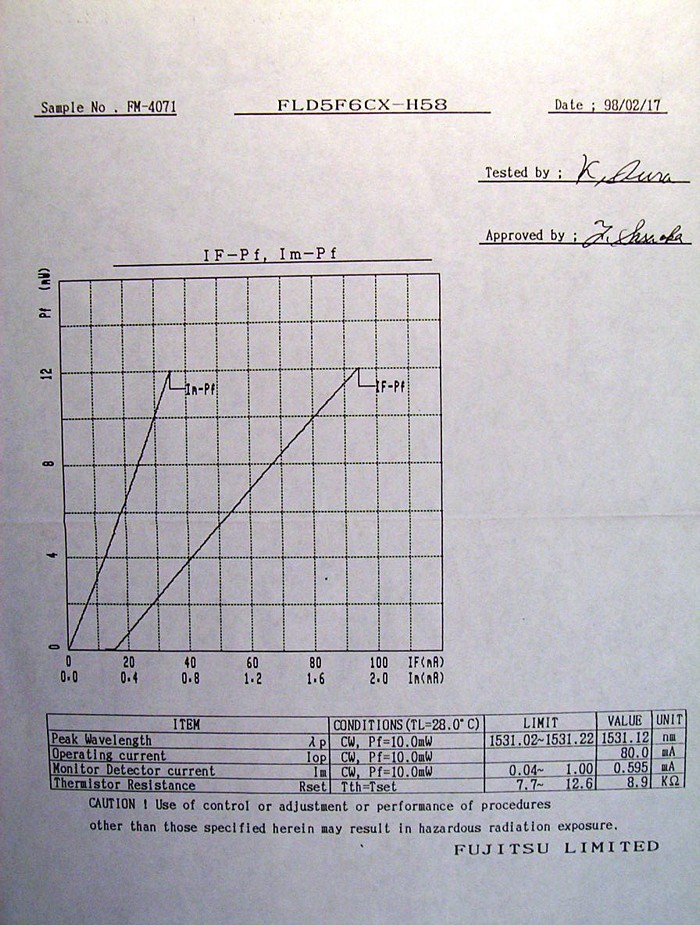

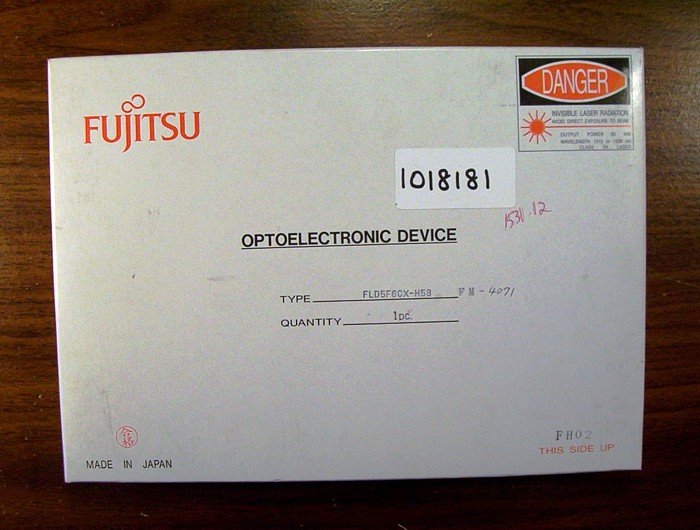

    unused in original product case. With actual manufacture test sheets.

  • DIM Weight
    0.4200 kg
  • Store Part No.
    OSC-LDPM-C-014IA
  • Choose center wavelength and P/N
    1542.14nm: FLD5F6CX-H44, without test data, 1538.19nm: FLD5F6CX-H49, 1534.25nm: FLD5F6CX-H54, 1531.12nm: FLD5F6CX-H58
  • Manufacturers
    • Manufacturer
      Fujitsu
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
