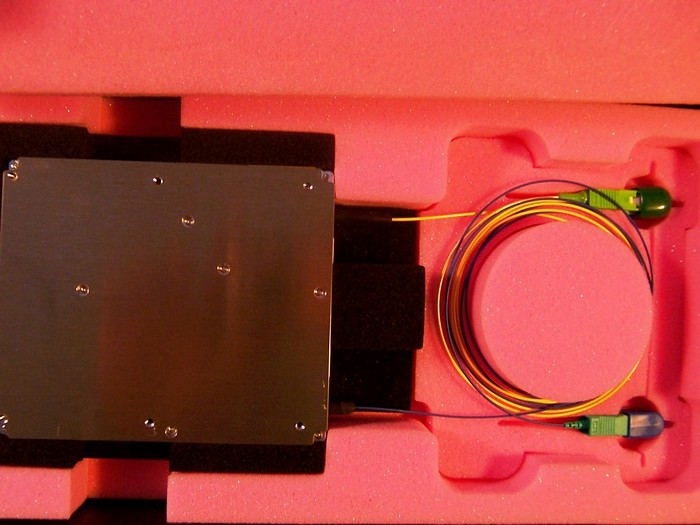

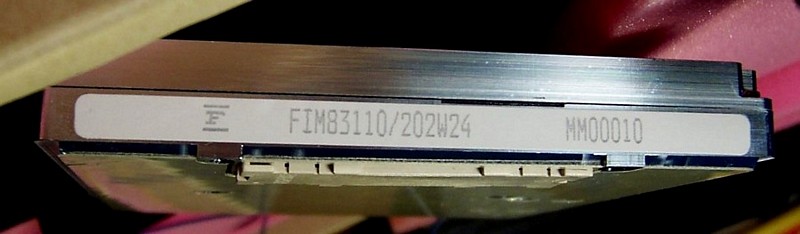

1534nm - 1563nm 8-ch tunable 10Gb DWDM transponder. Tunable over 8 ITU-T grid channels (2.8nm). Fujitsu P/N: FIM83110/202Wxx.
Next image
Zoom image

1534nm - 1563nm 8-ch tunable 10Gb DWDM transponder. Tunable over 8 ITU-T grid channels (2.8nm). Fujitsu P/N: FIM83110/202Wxx.


Not rated yet

Product wavelength options:
1558.2 – 1561.0nm, FIM83110/202W24
1559.0 –1561.8nm, FIM83110/202W23
1559.8 –1562.6nm, FIM83110/202W22

FEATURES
• 300-pin MSA compliant 10Gbps DWDM Transponder
• SONET OC-192, SDH STM-64, FEC rate compliant (9.953Gbps/10.313Gbps/10.709Gbps/11.096Gbps)
• CW Laser (50GHz ITU Grid with Integrated Wavelocker), Lithium Niobate (LiNbO3) modulator (with GPO-male interface) and APD
• 16:1 MUX and 1:16 DEMUX integrated

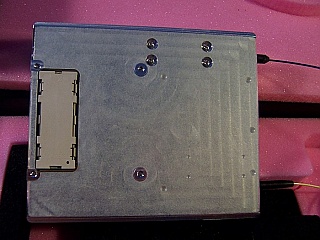

• Compact size (4.14” x 3.5” x 0.53”) with a 300-pin compact connector
• OIF-SF14-01.0 compliant Electrical Interface
• I2C Interface for monitoring, control and alarm

Store Part No. Choose wavelength and P/N Qty Price Buy
OMS-TRx-1550-026N0 1558.2 – 1561.0nm, FIM83110/202W24 5 US$710.00 + -
OMS-TRx-1550-026N1 1559.0 – 1561.8nm, FIM83110/202W23 6 US$705.00 + -
OMS-TRx-1550-026N2 1559.8 – 1562.6nm, FIM83110/202W22 6 US$700.00 + -
Add a different product to compare

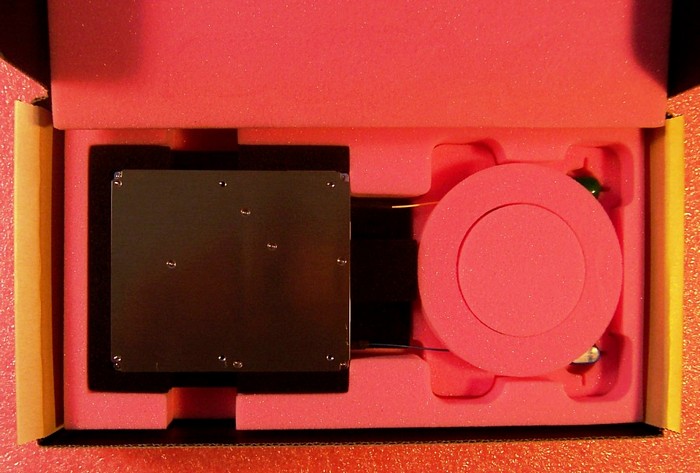

    CONDITION:

    new in original product box. Without manufacture test data.


  • DIM Weight
    2.4000 kg
  • Store Part No.
    OMS-TRx-1550-026N2
  • Choose wavelength and P/N
    1560.6 – 1563.5nm, FIM83110/202W21, 1559.8 – 1562.6nm, FIM83110/202W22, 1559.0 – 1561.8nm, FIM83110/202W23, 1558.2 – 1561.0nm, FIM83110/202W24, 1533.5 – 1536.2nm, FIM83110/202W55
  • Manufacturers
    • Manufacturer
      Fujitsu
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
